Status | Monitor Page; Figure 5-23. Status | Monitor Page - Comtech EF Data CDM-840 Installation And Operation Manual

CDM-840 Remote Router
Ethernet Management
5.4.4.5.2

Status | Monitor page

The 'Status | Monitor' page (Figure 5-23) provides the unit temperature, alarms summary, plus
a scrollable read-only window that displays any events and alarms as logged by the unit during
normal operation.
System Monitor
This read-only section provides the operating temperature of the unit (°C). Click [Refresh] as
needed to update this display.
Alarms
This read-only section provides an overall tally of the Unit, Tx, Rx, BUC, LNB, and Traffic
Ethernet alarms compiled since the logging buffer was last cleared. Click [Refresh Alarms] as
needed to update this display.
Events
Each event or alarm is logged, date- and time-stamped, and a Description is provided.
Click [Clear Event Table] to delete all existing log entries from the Router Events Log. The log
is then reset to one (1) entry: "Info: Log Cleared".

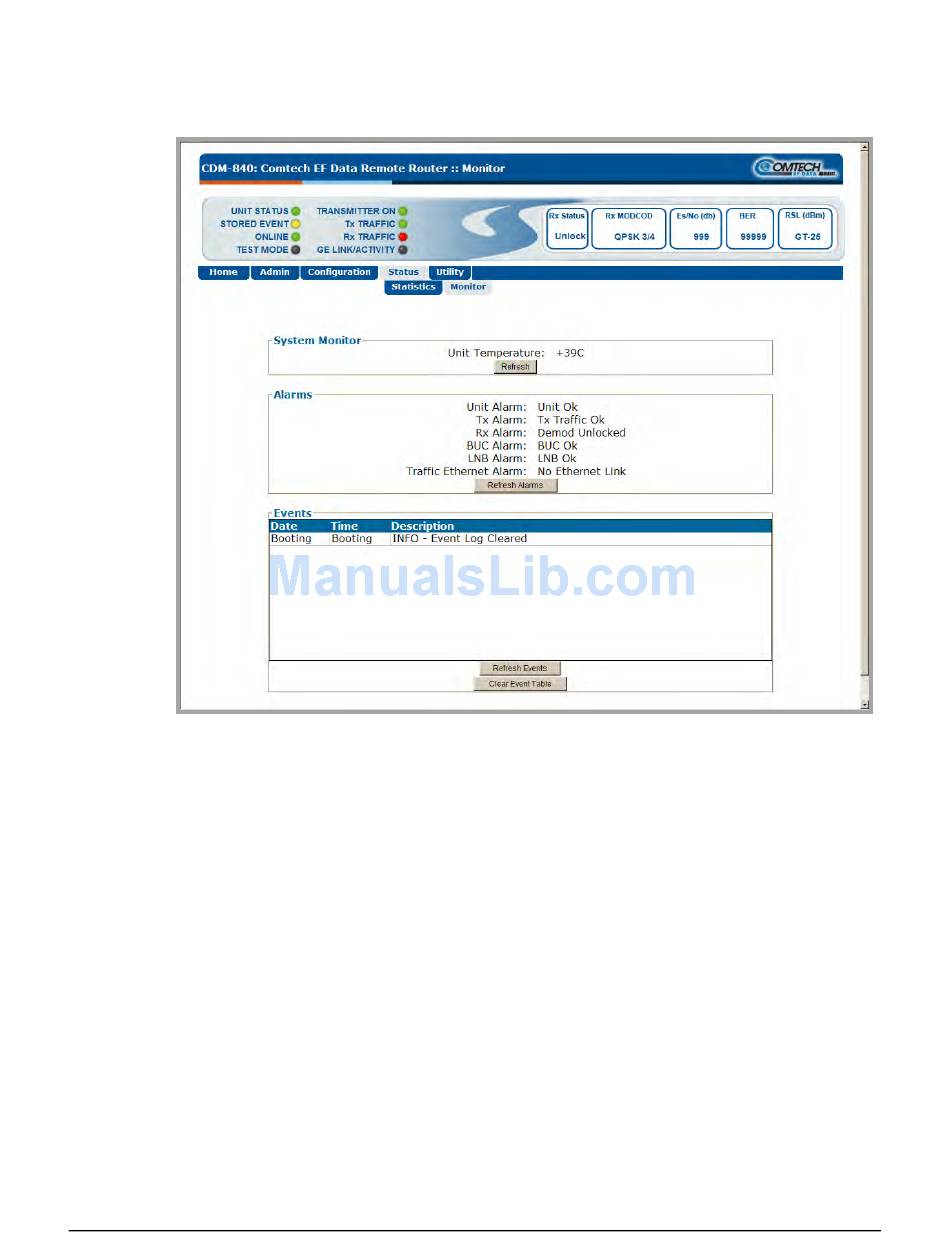

Figure 5-23. Status | Monitor page
