CDM-840 Remote Router

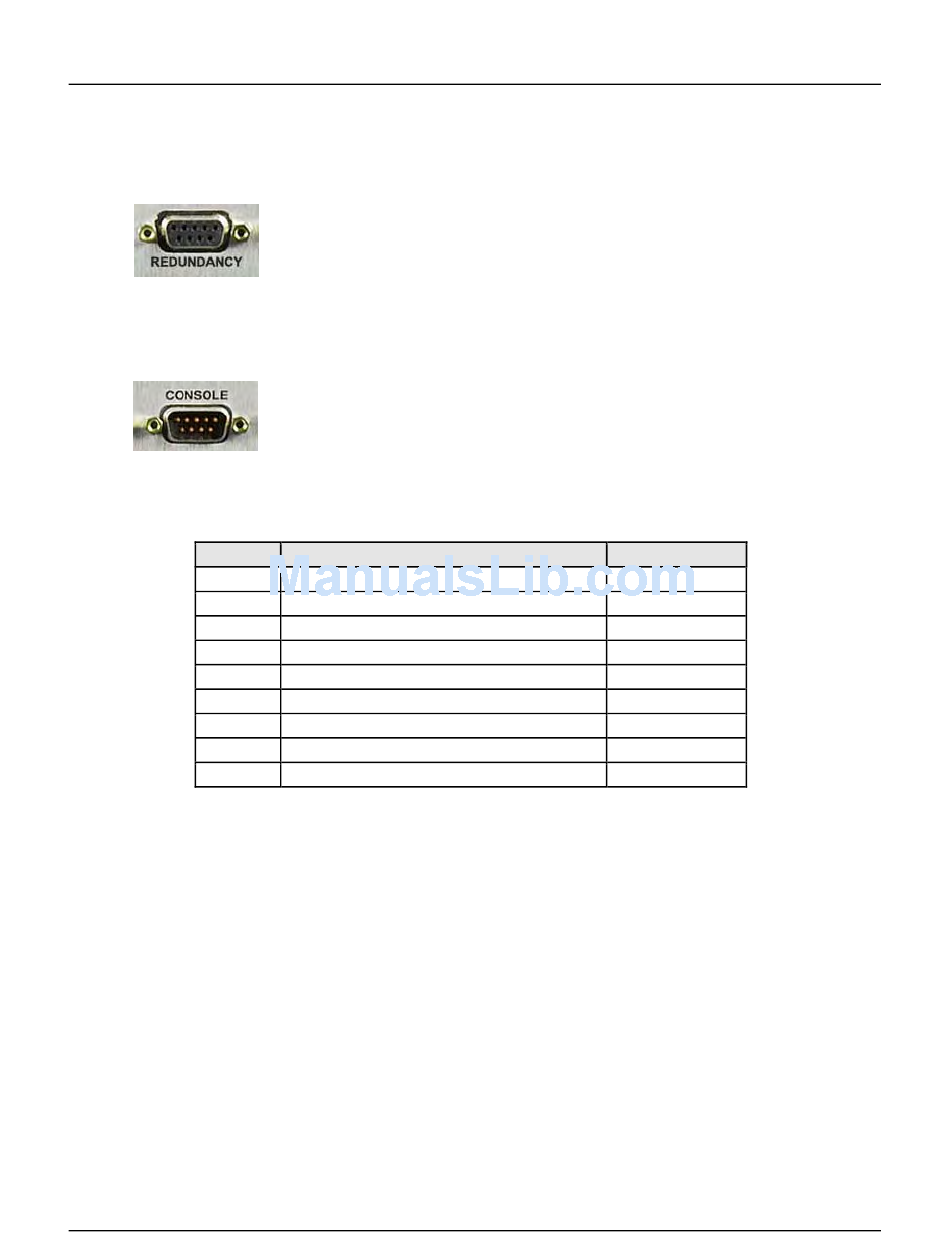

Rear Panel Connector and Pinouts
3.4
Utility Connections
3.4.1
(FUTURE) REDUNDANCY Connector, DB-9F
3.4.2
CONSOLE Interface Connector, DB-9M
Table 3-2. REMOTE CONSOLE Connector Pinouts
Pin #
1
2
3
4
5
6
7
8
9
This interface is not operational in the initial product release.
The Remote Control Interface is a 9-pin Type 'D' male connector. It is
intended for connection to an M&C computer or terminal device, and is used
for EIA-232 communications. Refer to Table 3-2 for pinouts.
Description
Ground
EIA-232 Transmit Data
EIA-232 Receive Data
Reserved - do not connect to this pin
Ground
Reserved - do not connect to this pin
Reserved - do not connect to this pin
Reserved - do not connect to this pin
Reserved - do not connect to this pin
3–4
Revision 0
MN-CDM840
Direction
–
Out
In
–
–
–
–
–
–
