CDM-840 Remote Router
Ethernet Management
•
High Drop Precedence (% full)) [0 – 99] – In case of congestion, the WRED is applied
after the queue depth exceeds the configured percentage value assigned for the Drop
Precedence value b011.
Once the desired configuration settings have been made in this section, click [Submit] as needed
to save these changes.
The following page sections appear when QoS Control Mode = Max/Priority or Min/Max.

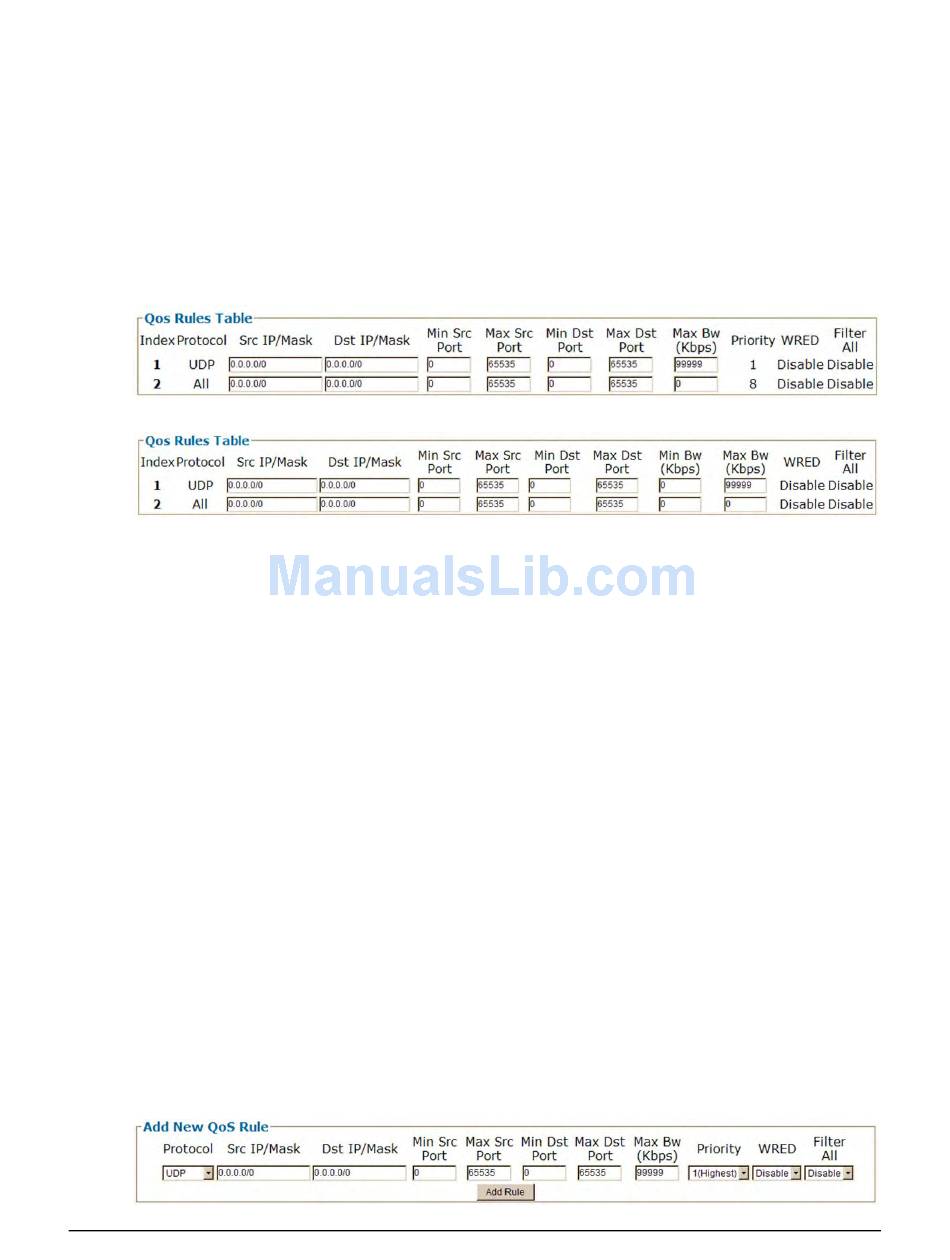

QoS Rules Table
For the 'Max/Priority' page:
For the 'Min/Max' page:
This section displays all existing QoS Rules Table entries. From left to right, note the following:
•
Index – The automatically-assigned specific rule internal index number is identified here.
•
Protocol – The protocol for the specific rule is identified here.
•
Src IP/Mask – The Source IP Address/Mask is displayed here in the form
XXX.XXX.XXX.XXX/YY.
•
Dest IP/Mask – The Destination IP Address/Mask is displayed here in the form
XXX.XXX.XXX.XXX/YY.
•
Min Src Port / Max Src Port / Min Dst Port / Max Dst Port – The Source/Destination
Ports are displayed in these columns.
•
Min BW (Kbps) ("Min/Max" page only) / Max BW (Kbps) – The bandwidth values
are displayed in these columns.
•
Priority ("Max/Priority" page only) – The priority established for the specific rule is
identified here.
•
WRED – The WRED (Weighted Random Early Detection) setting for the specific rule is
identified here as Disable or Enable.
•
Filter All – The flow filter setting for the specific rule is identified here as Disable or
Enable.
Add New QoS Rule
This section allows the user to directly add a new rule entry. Note that the index will
automatically increment to the next available number.
For the "Max/Priority" page:
