CDM-840 Remote Router
Ethernet Management
5.4.4.4.6.2
Configuration | WAN | QoS

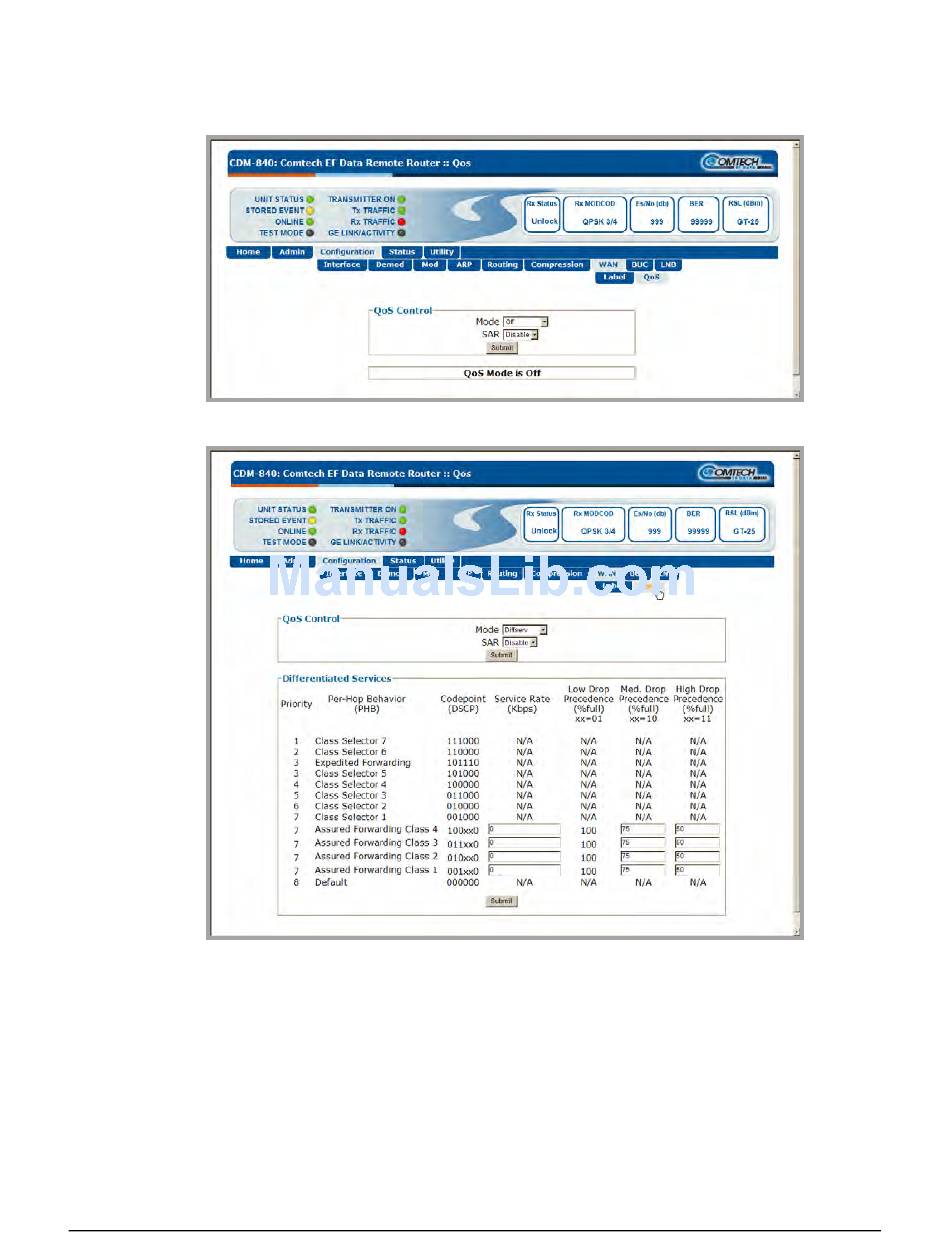

Figure 5-15 displays the 'Configuration | WAN | QoS' page when QoS Control Mode is set
either to Off or Diffserv. When QoS Control Mode is set to Max/Priority or Min/Max, this page
appears as shown in Figure 5-16.
(a) Page with QoS Control Mode = Off
(b) Page with QoS Control Mode = Diffserv
Figure 5-15. Configuration | WAN | QoS pages
5–23
Revision 0
MN-CDM840
