Installation and Operation, cont'd

Front Panel Features

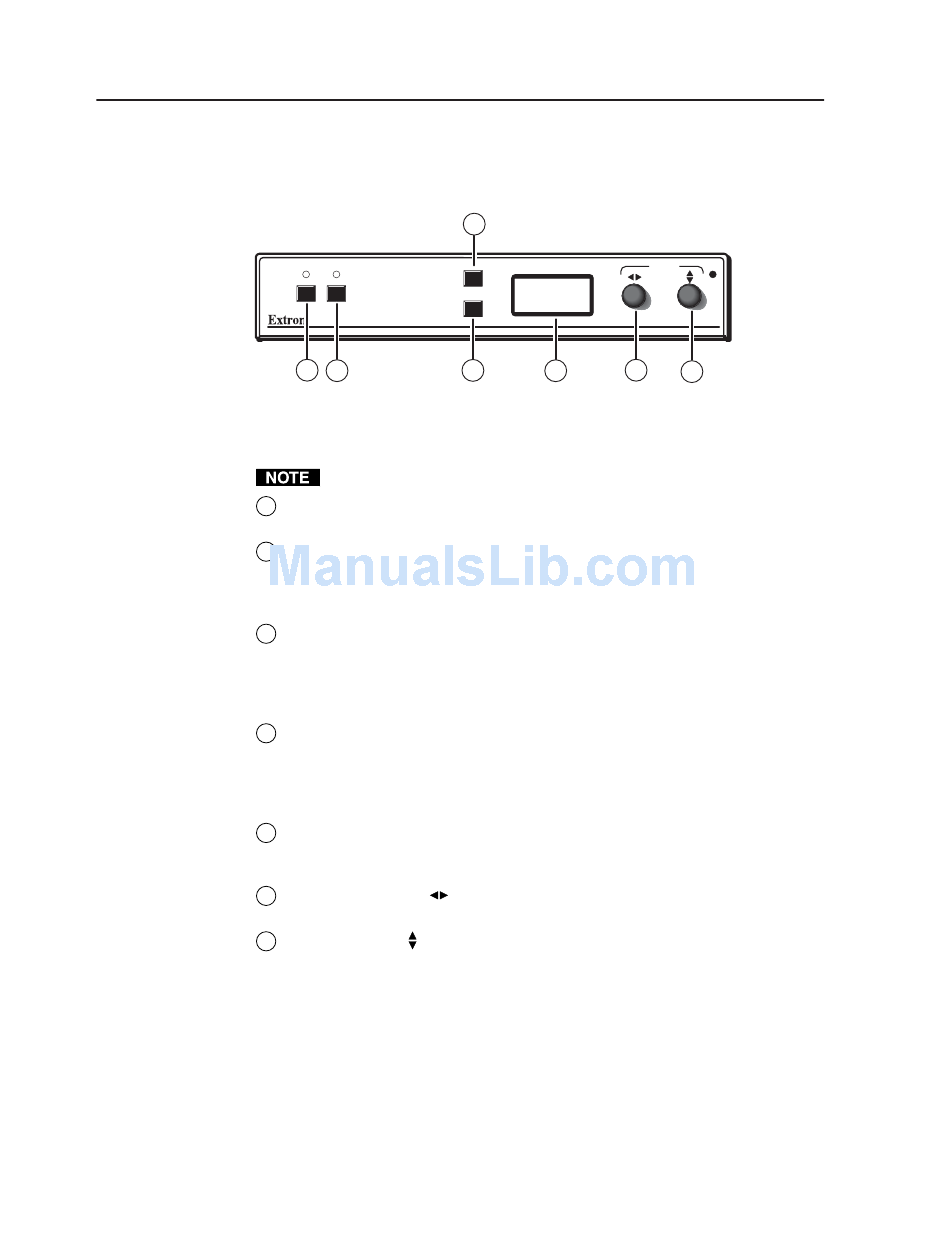

The front panel of the IN1502 is shown below.
IN1502 front panel

Input selection buttons

1
2

Next button

3

Menu button

4

LCD menu display and controls

5
6
7
2-6 IN1502 • Installation and Operation
4
1 2 MENU
NEXT
1 2 3
Input 1 can only input composite video; Input 2 can only input S-video.
Composite input button — This button selects the composite video input
(Input 1). The LED lights green when this input is selected.
S-video input button — This button selects the S-video input (Input 2). The
LED lights green when this input is selected.
Next button — Use this button to step through the submenus in the
IN1502 menu system. See the "Menus, Configuration, and Adjustments"
section in this chapter for details.
Menu button — Use this button to enter and move through the main menu
system in the IN1502. See the "Menus, Configuration, and Adjustments"
section in this chapter for details.
LCD — Displays configuration menus and status information. See the
"Menus, Configuration, and Adjustments" section in this chapter for
details.
Horizontal Adjust ( ) knob — In the menu system, rotate this knob to
scroll through menu options and make adjustments.
Vertical Adjust ( ) knob — In the menu system, rotate this knob to scroll
through menu options and make adjustments.
ADJUST
IR
IN 1502
VIDEO SCALER
5 6
7
