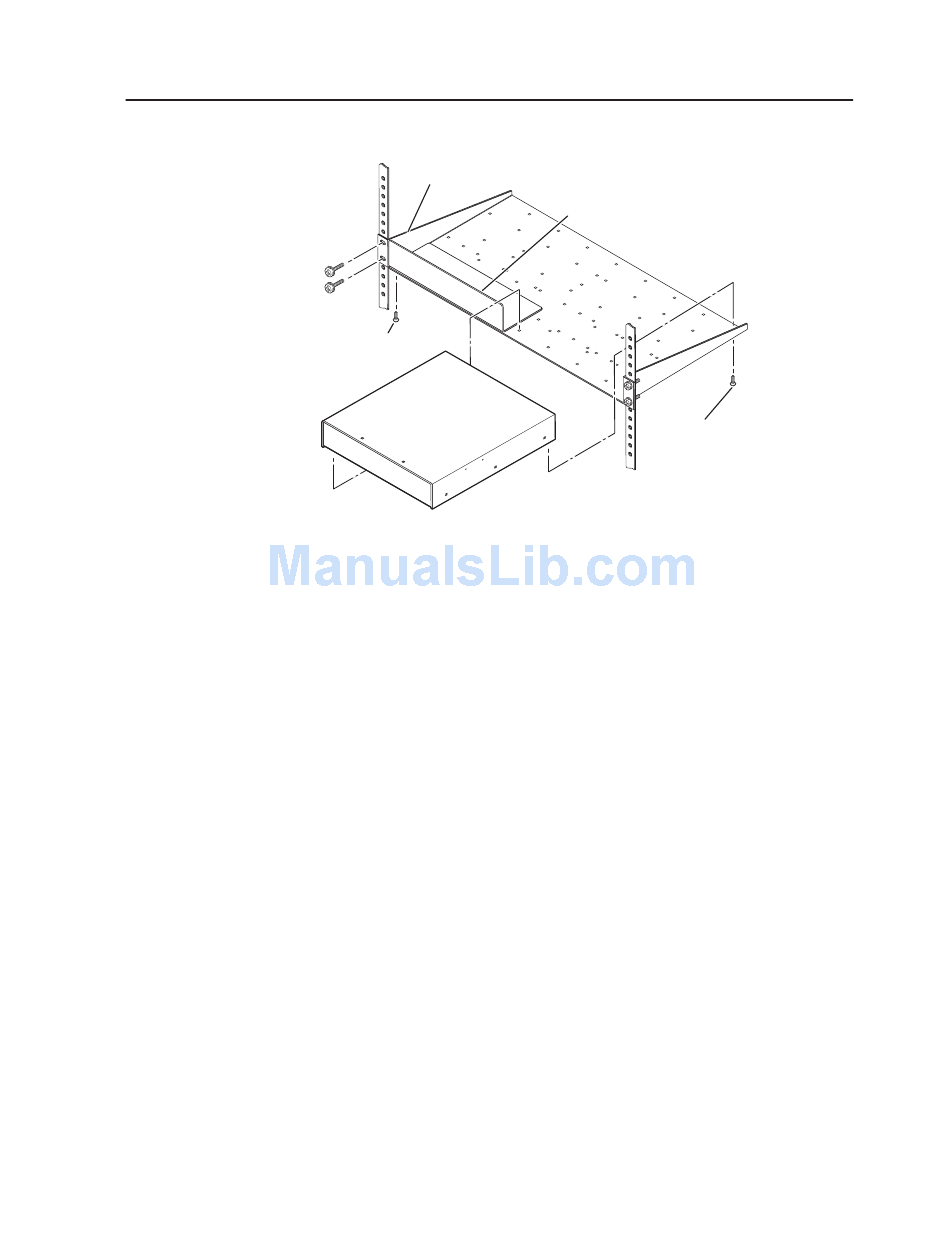

Rack mounting the IN1502

Attach the false front panel (provided with rack shelf part #60-190-01) to

the unoccupied side of the rack (as shown above), or install a second half-

rack-width device in that side by repeating steps 1 through 3.

Attach the rack shelf to the rack using four 10-32 x ¾" bolts (provided).

Insert the bolts through #10 beveled washers, then through the holes in the

rack, as shown above.

1/2 Rack Width Front False

Faceplate

(2) 4-40 x 3/16"

Screws

NOTE:

than 3/16" will damage the

unit and void the warranty.

Use 2 mounting holes on

opposite corners.

IN1502 • Installation and Operation

Using screws longer

2-3
