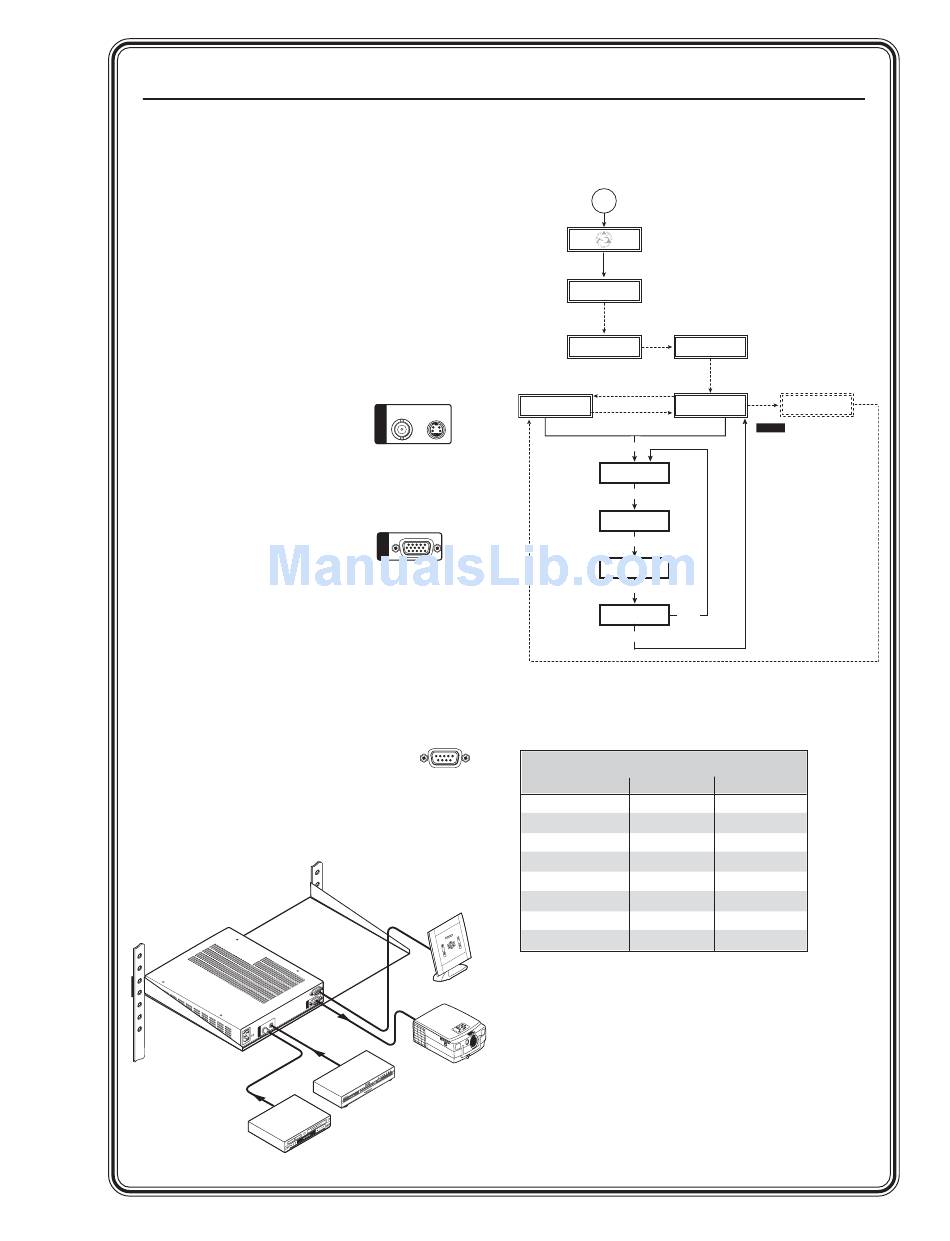

Extron electronics IN1502 User Manual page 5

Installation
Step 1
See the application example below. Turn off power
to the scaler and input and output devices, and re-
move power cords from them.
Step 2
Install the four rubber feet on the bottom of the
IN1502 scaler, or mount the scaler in a rack.
Step 3
Attach input devices to the scaler.
Rear panel video inputs
Input 1: Composite video
Input 2: S-video
Step 4
Attach an output device to the scaler.
Rear panel video output
Output 15-pin HD connector
Step 5
Plug the IN1502 and input and output devices into a
grounded AC source, and turn on the input and
output devices.
Step 6
Use the LCD menu screens or RS-232 programming
to configure the scaler. See chapter 2
for installation and operation
procedures, and see chapter 3 for
programming information.
Application example
TE
MO
RE
B
RG
O
U
T
VI DE O
IT E
OS
MP 3
I CO
N 2
P
U
T
S
IN1502
Video Scaler
VCR
Quick Start — IN1502
Main menus
I
COMPOSITE S-VIDEO
N
P
U
T
S
1 2
RGB
O
U
T
Output rates
REMOTE
RS-232 Control
LCD Projector
DVD
Power
on
INPUT 1
CMPOSITE
2 sec.
EXTRON 60-726-1
FW v.1.00
IN1502 2 sec.
2 sec.
INPUT 1
1360 x
DEFAULT CYCLE
CMPOSITE 765 @60
2 sec.
MENU
CONTROL
MENU
OUTPUT
CONFIG
MENU
ADVANCED
CONFIG
MENU
EXIT
MENU
MENU
NEXT
Scaler Output Resolutions and Rates
Resolution 50 Hz
640 x 480 X
800 x 600 X
848 x 480 X
852 x 480 X
1024 x 768 X
1280 x 768 X
1360 x 765 X
1366 x 768 X
*
The default resolution and rate is 1024 x 768 @ 60Hz.
IN1502 • Quick Start
2 sec.
2 sec.
NO
SIGNAL
2 sec.
The No Signal default
NOTE
menu only occurs if
there is no signal
present at the currently
selected input.
60 Hz
X
X
X
X
X*
X
X
X
QS-1
