Installation
Installation, cont'd

Front and Rear Panels

Front panel features

CENTERING/PAN
1 2

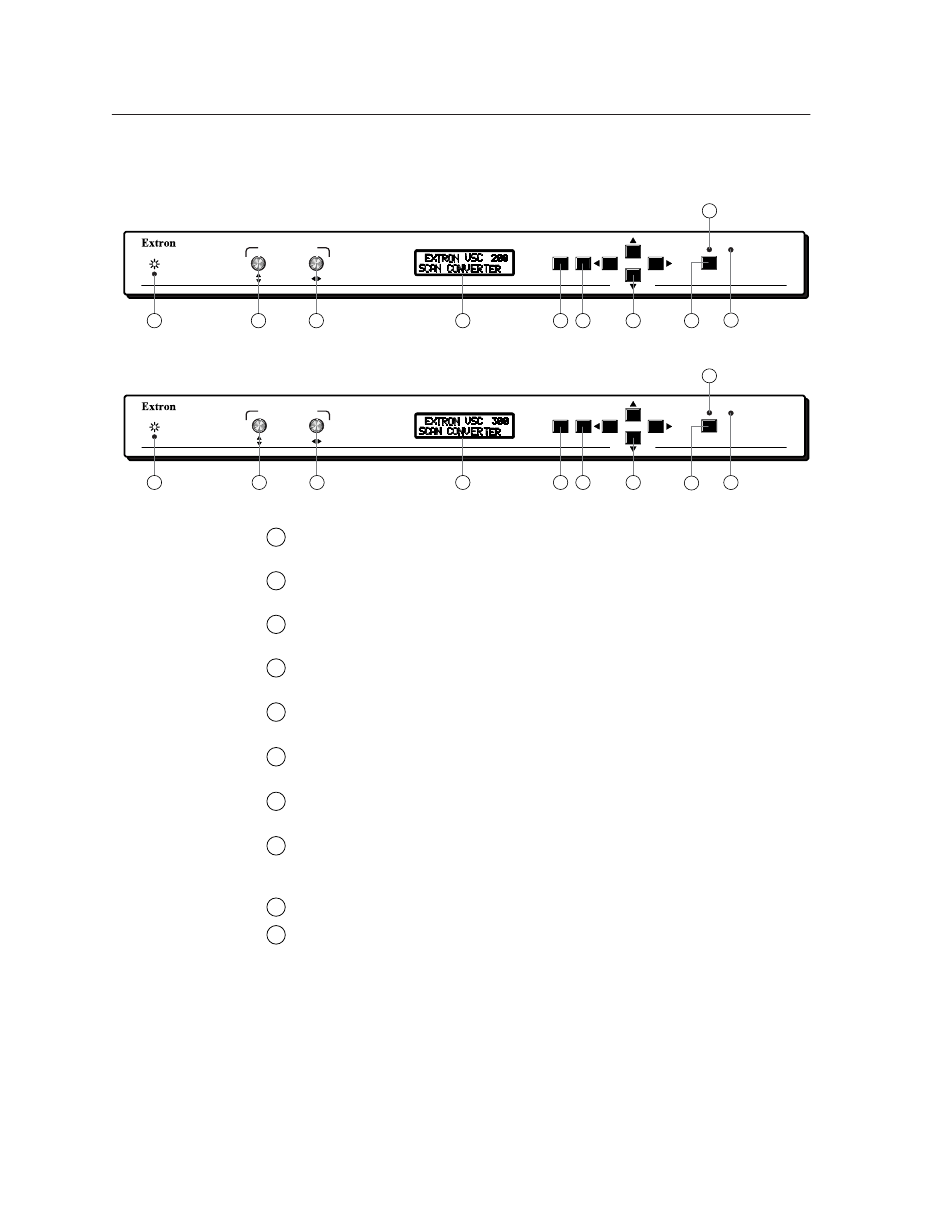

Figure 1 — VSC 200/200D front panel
CENTERING/PAN
1 2
Figure 2 — VSC 300/300D front panel
1
2
3
4
5
6
7
8
9
10
www.camboard.de
2-2 VSC 200/200D/300/300D Installation
CAMBOARD Electronics
3 4
3 4
Power indicator LED — Lights to indicate that the scan converter is receiving
power.
Vertical centering/pan control — Allows you to pan or center the image
vertically. See "Front panel controls" on page 3-4 for more information.
Horizontal centering/pan control — Allows you to pan or center the image
horizontally. See "Front panel controls" on page 3-4 for more information.
LCD — Displays status information and menu screens. See "Front Panel
Operation" on page 3-2 for more information.
Menu button — Steps through the LCD menus. See "Using the LCD Menus"
on page 3-2 for more information.
Next button — Steps through LCD screens within a menu. See "Using the
LCD Menus" on page 3-2 for more information.
Cursor buttons — Allow you to adjust the image and select video
parameters. See "Using the LCD Menus" on page 3-2 for more information.
Freeze/reset button — Freezes/unfreezes the displayed image, or resets the
zoom and size values. See "Front panel controls" on page 3-4 for more
information.
Freeze LED — Lights to indicate the that the freeze feature is active.
Genlock LED — Lights to indicate that a valid reference signal is present on
the genlock input BNC. See "Setting Up Genlock and Vertical Interval
Switching" on page 3-6.
Tel. 07131 911201
Fax 07131 911203
9
MENU NEXT FREEZE/
RESET
COMPUTER TO VIDEO SCAN CONVERTER
10
5 6 7 8
9
MENU NEXT FREEZE/
RESET
COMPUTER TO VIDEO SCAN CONVERTER
5 6 7 8 10
ce-info@camboard.de
GENLOCK
VSC 200
GENLOCK
VSC 300
