LevelOne Broadband Router User Guide
LAN:
Half/Full
Duplex
Print Error
Print Act

Rear Panel

Power port (12V)
HUB ports
(10/100BaseT)
WAN port
(10BaseT)
ON indicates the LAN connection is using Full Duplex.
OFF indicates the LAN connection (if any) is using Half
Duplex.
ON - Printer error detected.
OFF - No printer error detected.
•
OFF - no connection to printer.
•
ON - Connection to printer established.
•
Flashing - Data is being transmitted to the printer.

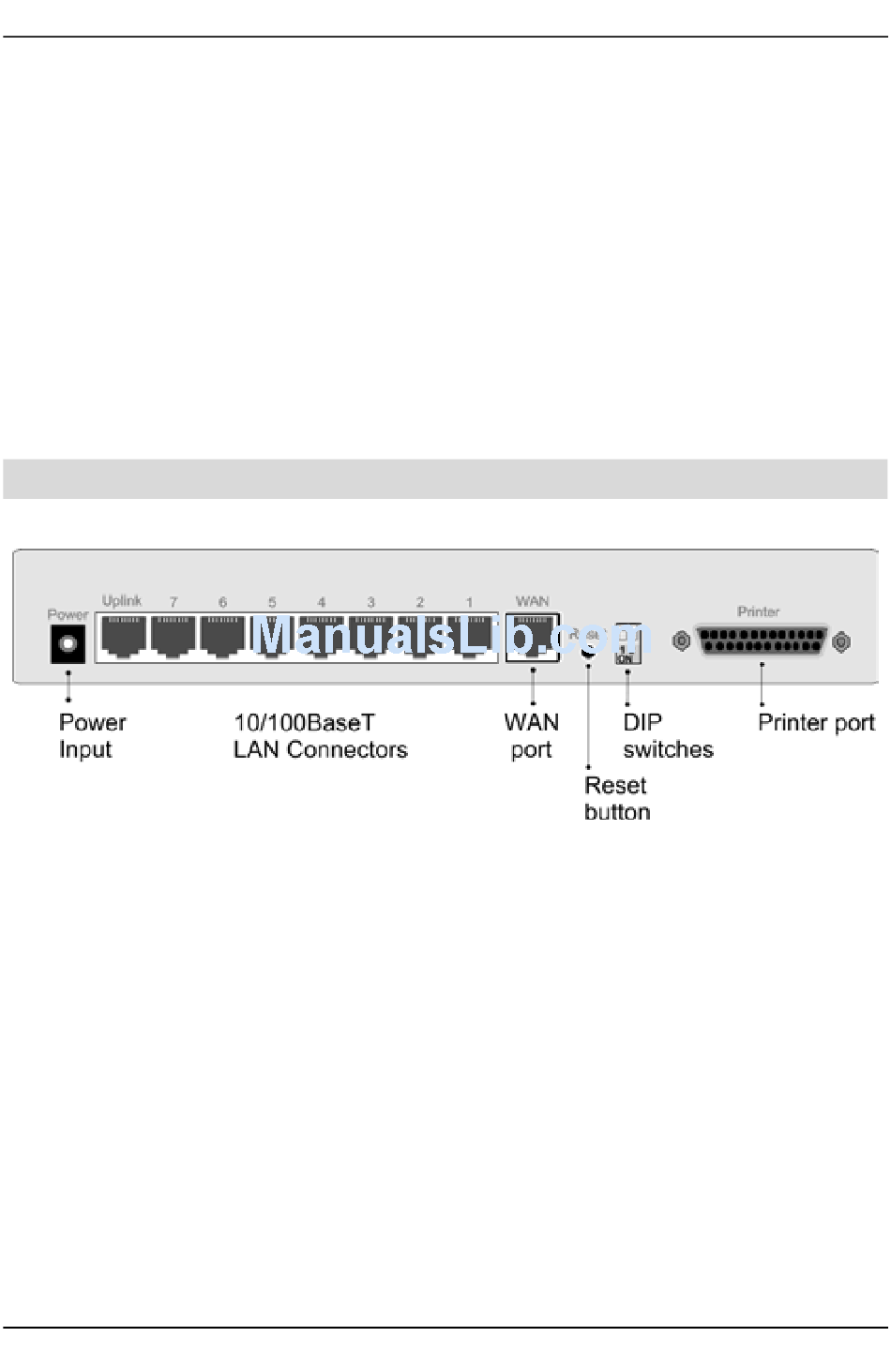

Figure 3: Rear Panel
Connect the supplied power adapter here.
Use standard LAN cables (RJ45 connectors) to
connect this port to your PCs. Both 10BaseT and
100BaseT connections can be used simultane-
ously.
Use the "Uplink" port ONLY to connect to
a normal port on another hub.
Connect the ADSL or Cable Modem here. If your
modem came with a cable, use the supplied cable.
Otherwise, use a standard LAN cable.
6
