Workstations - LevelOne FBR-1700TX User Manual

LevelOne Broadband Router User Guide

Workstations

The Workstations screen is reached from the Access Control link on the
navigation bar. An example screen is shown below.
Note that the drop-down box lists all Workstations previously entered. If none
have been entered, this box will be empty.
Operations
•
To Add a New Workstation:
Ignore the drop-down box, click the Clear Form button, and enter the PC
details in the fields provided.
Click Add when finished.
•
To Delete an Existing Workstation:
Select the PC from the drop-down box, click Get Data to view the infor-
mation and confirm that this is the correct PC, then click the Delete
button.

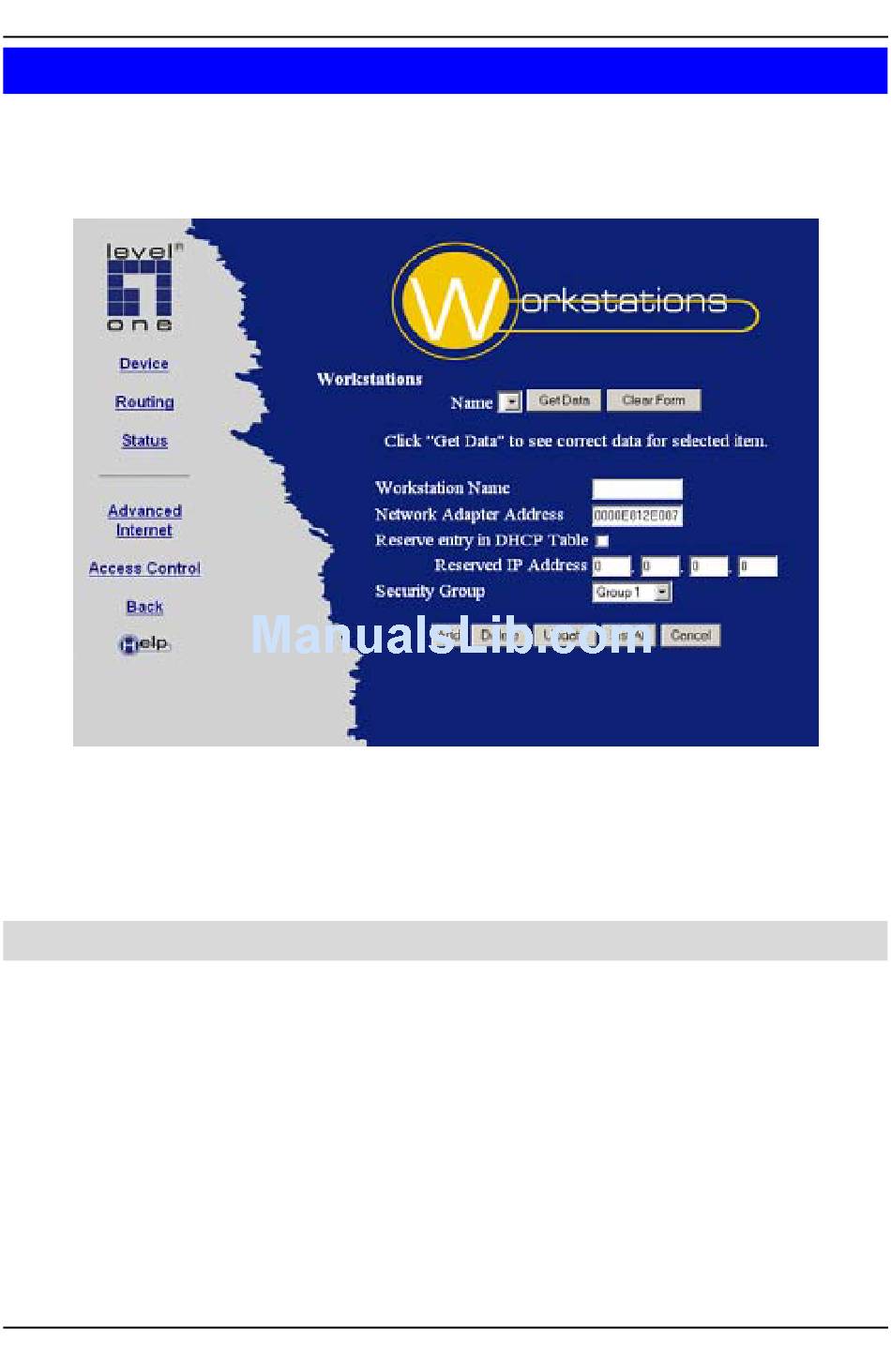

Figure 32: PCs Screen
76
