Using Dhcp - LevelOne FBR-1700TX User Manual

Ensure your TCP/IP settings are correct, as follows:

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically.
This is the default Windows settings.
Restart your PC to ensure it obtains an IP Address from the FBR-1700TX.
Using "Specify an IP Address"
•
If your PC is already configured, do NOT change the settings on the IP
Address tab shown in Figure 15 above.
•
On the Gateway tab, enter the FBR-1700TX's IP address in the New
Gateway field and click Add. Your LAN administrator can advise you of
the IP Address they assigned to the FBR-1700TX.

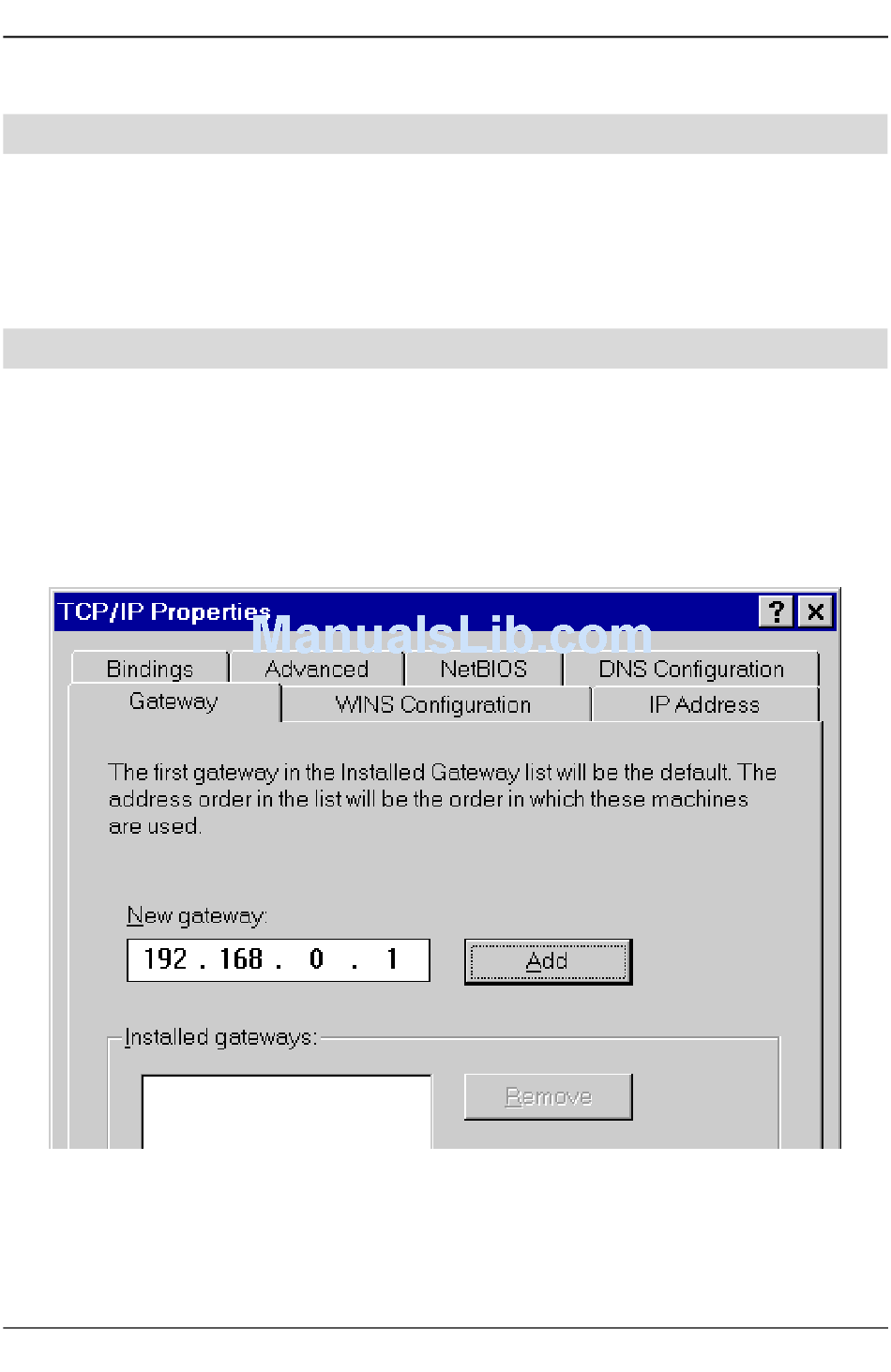

Figure 16: Gateway Tab (Win 95/98)
PC Configuration
35
