Physical Details

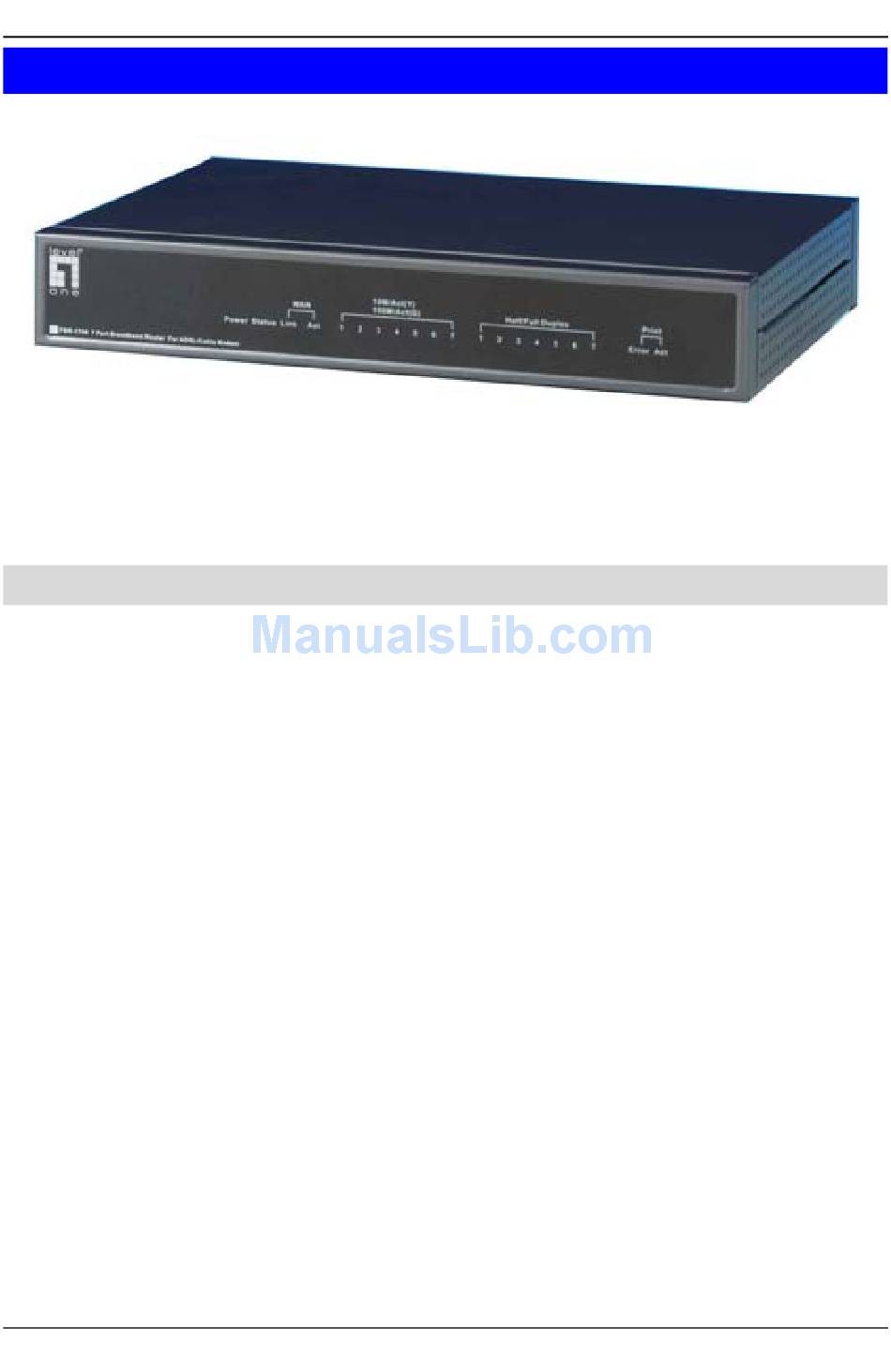

Figure 2: LevelOne FBR-1700TX 7 Port Broadband Router For
LEDs
Power
Status (Red)
WAN: Link
WAN: Act
LAN: Act
ADSL/Cable Modem
ON - power on
OFF - no power
Blinks during start up.
ON indicates an error condition.
ON - WAN connection is established.
OFF - no WAN connection.
Flashing - data is being transmitted or received via the
WAN port.
OFF - no data is being transferred.
There are 7 LEDs - one for each LAN port, and each
LED could be OFF, Yellow, or Green.
•
OFF - No LAN connection on this port.
•
Yellow - 10BaseT connection.
•
Green - 100BaseT connection.
Introduction
5
