Summary of Contents for LevelOne FBR-1403TX

  • Page 1 LevelOne Broadband Router FBR-1402TX FBR-1403TX User's Guide...

  • Page 2: Table Of Contents

    Password Screen ... 17 CHAPTER 4 PC CONFIGURATION ... 18 Overview ... 18 Windows Clients ... 18 Printer Setup for Windows (FBR-1403TX only)... 30 Macintosh Clients... 36 Linux Clients... 36 Other Unix Systems... 37 CHAPTER 5 OPERATION AND STATUS ... 38 Operation ...
  • Page 3 APPENDIX A TROUBLESHOOTING ... 84 Overview ... 84 General Problems ... 84 Internet Access... 84 Printing (FBR-1403TX) ... 85 APPENDIX B SPECIFICATIONS... 88 FBR-1402TX ... 88 FBR-1403TX ... 89 P/N 9560J300A0 Copyright 2002. All Rights Reserved. Document Version: 1.2 All trademarks and trade names are the properties of their respective owners.

  • Page 4: Chapter 1 Introduction

    Internet Access Features Shared Internet Access. through the LevelOne Broadband Router, using only a single external IP Address. The lo- cal (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation).

  • Page 5: Advanced Internet Functions

    10/100BaseT switching hub, making it easy to create or extend your LAN. DHCP Server Support. address to PCs and other devices upon request. The LevelOne Broadband Router can act as a DHCP Server for devices on your local LAN and WLAN.

  • Page 6: Configuration And Management

    Power Adapter Quick Installation Guide CD-ROM containing the on-line manual. For the FBR-1403TX, the Print Port Driver for Windows is also included on the CD-ROM. If any of the above items are damaged or missing, please contact your dealer immediately.

  • Page 7: Physical Details

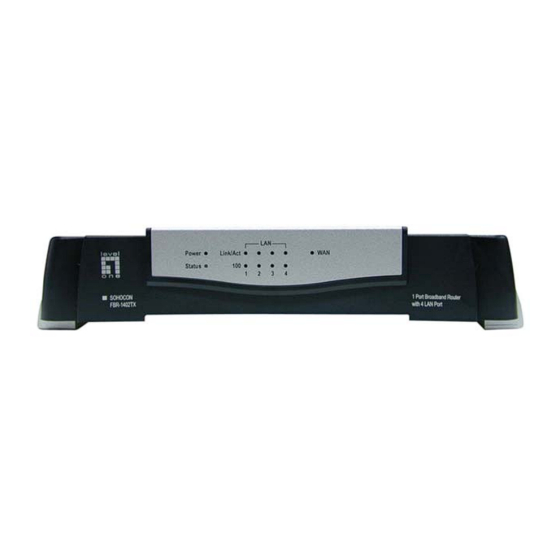

    LevelOne Broadband Router User Guide Physical Details Front Panel - FBR-1402TX Power On - Power on. Off - No power. Status (Red) On - Error condition. Off - Normal operation. Blinking - This LED blinks during start up. For each port, there are 2 LEDs...
  • Page 8 Print Error On - Printer error detected. Off - No printer error detected. Figure 3: Front Panel - FBR-1403TX On - Corresponding LAN (hub) port is active. Off - No active connection on the corresponding LAN (hub) port. Flashing - Data is being transmitted or received via the corre- sponding LAN (hub) port.
  • Page 9 3. Keep holding the Reset Button for a few seconds, until the RED LED has flashed TWICE. 4. Release the Reset Button. The LevelOne Broadband Router is now using the factory default values. Connect the DSL or Cable Modem here. If your modem came with a cable, use the supplied cable.

  • Page 10: Chapter 2 Installation

    Ensure the LevelOne Broadband Router and the DSL/Cable modem are powered OFF. 2. Connect LAN Cables Use standard LAN cables to connect PCs to the Switching Hub ports on the LevelOne Broadband Router. Both 10BaseT and 100BaseT connections can be used simultaneously.

  • Page 11: Check The Leds

    For each LAN (PC) connection, the LAN Link/Act LED should be ON (provided the PC is also ON.) The WAN LED should be ON. For the FBR-1403TX, the Print Act LED should be ON if a printer is connected and On- line. For more information, refer Physical Details in Chapter 1.

  • Page 12: Chapter 3 Setup

    PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Con- figuration. Other configuration may also be required, depending on which features and functions of the LevelOne Broadband Router you wish to use. Use the table below to locate detailed instruc- tions for the required functions. To Do this: Configure PCs on your LAN.

  • Page 13: Configuration Program

    Using your Web Browser To establish a connection from your PC to the LevelOne Broadband Router: 1. After installing the LevelOne Broadband Router in your LAN, start your PC. If your PC is already running, restart it. 2. Start your WEB browser.
  • Page 14 255.255.255.0. See Chapter 4 - PC Configuration for details on check- ing your PC's TCP/IP settings. Ensure that your PC and the LevelOne Broadband Router are on the same network segment. (If you don't have a router, this must be the case.)

  • Page 15: Setup Wizard

    LevelOne Broadband Router User Guide Setup Wizard The first time you connect to the LevelOne Broadband Router, the Setup Wizard will run automatically. (The Setup Wizard will also run if the LevelOne Broadband Router's default setting are restored.) 1. Step through the Wizard until finished.

  • Page 16: Singtel Ras

    Other Modems (e.g. Broadband Wireless) Type Dynamic IP Address Static (Fixed) IP Address Big Pond (Australia) For this connection method, the following data is required: User Name Password Big Pond Server IP address SingTel RAS For this connection method, the following data is required: User Name Password RAS Plan...

  • Page 17: Home Screen

    LevelOne Broadband Router User Guide Home Screen After finishing the Setup Wizard, you will see the Home screen. When you connect in future, you will see this screen when you connect. An example screen is shown below. Navigation & Data Input Use the menu bar on the top of the screen, and the "Back"...

  • Page 18: Lan Screen

    TCP/IP IP Address IP address for the LevelOne Broadband Router, as seen from the local LAN. Use the default value unless the address is already in use or your LAN is using a different IP address range. In the latter case, enter an unused IP Address from within the range used by your LAN.

  • Page 19: To Configure Your Pcs To Use Dhcp

    You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP Server, rather than the LevelOne Broadband Router's, the following procedure is required. 1. Disable the DHCP Server feature in the LevelOne Broadband Router. This setting is on the LAN screen.

  • Page 20: Password Screen

    Password Screen The password screen allows you to assign a password to the LevelOne Broadband Router. Once you have assigned a password to the LevelOne Broadband Router (on the Password screen above) you will be prompted for the password when you connect, as shown below. (If no password has been set, this dialog will not appear.)

  • Page 21: Chapter 4 Pc Configuration

    Sharing the Printer connected to the LevelOne Broadband Router. The first step is to check the PC's TCP/IP settings. The LevelOne Broadband Router uses the TCP/IP network protocol for all functions, so it is essential that the TCP/IP protocol be installed and configured on each PC.

  • Page 22: Using Dhcp

    Windows setting. Using this is recommended. By default, the LevelOne Broadband Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the LevelOne Broadband Router. Using "Specify an IP Address" If your PC is already configured, check with your network administrator before making the...
  • Page 23 LevelOne Broadband Router User Guide On the Gateway tab, enter the LevelOne Broadband Router's IP address in the New Gate- way field and click Add, as shown below. Your LAN administrator can advise you of the IP Address they assigned to the LevelOne Broadband Router.
  • Page 24 PC Configuration Checking TCP/IP Settings - Windows NT4.0 1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown below. Figure 14: Windows NT4.0 - TCP/IP 2. Click the Properties button to see a screen like the one below.

  • Page 25: Obtain An Ip Address From A Dhcp Server

    If your PC is already configured, check with your network administrator before making the following changes. 1. The Default Gateway must be set to the IP address of the LevelOne Broadband Router. To set this: Click the Advanced button on the screen above.
  • Page 26 PC Configuration Figure 16 - Windows NT4.0 - Add Gateway 2. The DNS should be set to the address provided by your ISP, as follows: Click the DNS tab. On the DNS screen, shown below, click the Add button (under DNS Service Search Order), and enter the DNS provided by your ISP.
  • Page 27 LevelOne Broadband Router User Guide Figure 17: Windows NT4.0 - DNS...

  • Page 28: Checking Tcp/Ip Settings - Windows

    PC Configuration Checking TCP/IP Settings - Windows 2000: 1. Select Control Panel - Network and Dial-up Connection. 2. Right - click the Local Area Connection icon and select Properties. You should see a screen like the following: Figure 18: Network Configuration (Win 2000) 3.
  • Page 29 Windows setting. Using this is recommended. By default, the LevelOne Broadband Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the LevelOne Broadband Router. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured, check with your network administrator before making the following changes.

  • Page 30: Checking Tcp/Ip Settings - Windows Xp

    PC Configuration Checking TCP/IP Settings - Windows XP 1. Select Control Panel - Network Connection. 2. Right click the Local Area Connection and choose Properties. You should see a screen like the following: Figure 20: Network Configuration (Windows XP) 3. Select the TCP/IP protocol for your network card. 4.
  • Page 31 Windows setting. Using this is recommended. By default, the LevelOne Broadband Router will act as a DHCP Server. Restart your PC to ensure it obtains an IP Address from the LevelOne Broadband Router. Using a fixed IP Address ("Use the following IP Address") If your PC is already configured, check with your network administrator before making the following changes.

  • Page 32: Internet Access

    Setup is now completed. Accessing AOL To access AOL (America On Line) through the LevelOne Broadband Router, the AOL for Windows software must be configured to use TCP/IP network access, rather than a dial-up connection. The configuration process is as follows: Start the AOL for Windows communication software.

  • Page 33: Printer Setup For Windows (Fbr-1403Tx Only)

    Print Port Driver. After installing the Print Port Driver, Windows users can print di- rectly to the LevelOne Broadband Router. Print jobs are spooled (queued) on each PC. The supplied Print Port Driver supports Windows 95/98, Windows ME, Windows NT4.0, Windows 2000 and Windows XP.

  • Page 34: Port Options

    Print jobs can be managed like any Windows printer. Open the Printers folder (Start - Settings - Printers) and double-click any printer to see the current print jobs. If the printer attached to the LevelOne Broadband Router is changed, just run this program again, and select the correct printer.
  • Page 35 If using a PostScript Printer, check the PostScript box. The User Name will be printed on the banner page. Retry Sets how often Windows will poll the LevelOne Broadband Interval Router to establish a connection when the printer is busy. In- crease this value if you get too many warning messages.

  • Page 36: Lpd/Lpr Printing

    To use LPD printing, Microsoft TCP/IP Printing must be installed and enabled. This can be checked using Start-Settings-Control Panel-Network - Services. To install LPD printing using the LevelOne Broadband Router, follow this procedure: 1. Go to Start-Settings-Printer and invoke the Add Printer wizard.

  • Page 37: Adding The Printer

    LevelOne Broadband Router User Guide Windows 2000 Server Configuration The LPD/LPR Port is not enabled by default. To enable it, use this procedure: 1. In Control Panel, select Add/Remove Programs, then Windows Components. 2. Select Other Network File and Print Services, then click the Details button.

  • Page 38: Client Pc Setup For Lpd/Lpr Printing

    4. In the Dialog requesting Name or Address of server providing lpd, enter the IP address of the LevelOne Broadband Router. 5. For Name of printer or print queue on that server, enter L1 6. Click OK, and then Next, and continue the Wizard.

  • Page 39: Macintosh Clients

    Ensure your DNS settings are correct. Linux Clients To access the Internet via the LevelOne Broadband Router, it is only necessary to set the LevelOne Broadband Router as the "Gateway". Ensure you are logged in as "root" before attempting any changes.

  • Page 40: Other Unix Systems

    Other Unix Systems To access the Internet via the LevelOne Broadband Router: Ensure the "Gateway" field for your network card is set to the IP Address of the LevelOne Broadband Router. Ensure your DNS (Name Server) settings are correct.

  • Page 41: Chapter 5 Operation And Status

    This Chapter details the operation of the LevelOne Broadband Router and the status screens. Operation Once both the LevelOne Broadband Router and the PCs are configured, operation is automatic. However, there are some situations where additional Internet configuration may be required: If using Internet-based Communication Applications, it may be necessary to specify which PC receives an incoming connection.
  • Page 42 IP addresses allocated to them, use the PC Database option on the Advanced menu. This displays the current name of the LevelOne Broadband Router. The current version of the firmware installed in the LevelOne Broadband Router. Clicking this button will open a Window which lists all system details and settings.

  • Page 43: Connection Status - Pppoe

    LevelOne Broadband Router User Guide Buttons Connection Details System Data Refresh Screen Connection Status - PPPoE If using PPPoE (PPP over Ethernet), a screen like the following example will be displayed when the "Connection Details" button is clicked. Data - PPPoE...

  • Page 44: Connection Log Messages

    Connection Log Connection Log Buttons Connect Disconnect Clear Log Refresh Connection Log Messages Message Connect on Demand Manual connection Reset physical connection Connecting to remote server Remote Server located Start PPP PPP up successfully Idle time-out reached Disconnecting Error: Remote Server not found Error: PPP Connection failed...

  • Page 45: Connection Status - Pptp

    LevelOne Broadband Router User Guide Error: Invalid or unknown packet type Connection Status - PPTP If using PPTP (Peer-to-Peer Tunneling Protocol), a screen like the following example will be displayed when the "Connection Details" button is clicked. Data - PPTP...

  • Page 46: Connection Status - Telstra Big Pond

    Buttons Connect If not connected, establish a connection to your ISP. Disconnect If connected to your ISP, hang up the connection. Delete all data currently in the Log. This will make it easier to read Clear Log new messages. Refresh Update the data on screen.

  • Page 47: Connection Details - Singtel Ras

    LevelOne Broadband Router User Guide Connection Log Connection Log Buttons Connect If not connected, establish a connection to Telstra Big Pond. Disconnect If connected to Telstra Big Pond, terminate the connection. Delete all data currently in the Log. This will make it easier to read Clear Log new messages.
  • Page 48 IP Address from the ISP's DHCP Server. If an IP Address has been allocated to the LevelOne Broadband Router (by the ISP's DHCP Server), this button will say "Re- lease". Clicking the "Release" button will break the connection and release the IP Address.

  • Page 49: Connection Details - Fixed/Dynamic Ip Address

    LevelOne Broadband Router User Guide Connection Details - Fixed/Dynamic IP Address If your access method is "Direct" (no login), a screen like the following example will be displayed when the "Connection Details" button is clicked. Figure 31: Connection Details - Fixed/Dynamic IP Address...
  • Page 50 IP Address from the ISP's DHCP Server. If an IP Address has been allocated to the LevelOne Broadband Router (by the ISP's DHCP Server), this button will say "Re- lease". Clicking the "Release" button will break the connection and release the IP Address.

  • Page 51: Chapter 6 Advanced Features

    Chapter 6 Advanced Features This Chapter explains when and how to use the LevelOne Broadband Router's "Advanced" Features. Overview The following advanced features are provided. Advanced Internet Communication Applications Special Applications URL filter Access Control Remote Management Virtual Servers Dynamic DNS...

  • Page 52: Advanced Internet Screen

    An example screen is shown below. Communication Applications Most applications are supported transparently by the LevelOne Broadband Router. But some- times it is not clear which PC should receive an incoming connection. This problem could arise with the Communication Applications listed on this screen.

  • Page 53: Special Applications Screen

    If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the LevelOne Broadband Router's firewall. In this case, you can define the application as a "Special Application".

  • Page 54: Using A Special Application

    Data - Special Applications Screen Use this to Enable or Disable this Special Application as required. Checkbox Name Enter a descriptive name to identify this Special Application. Type - Select the protocol (TCP or UDP) used when you receive data Incoming from the special application or service.

  • Page 55: Url Filter Screen

    LevelOne Broadband Router User Guide The "DMZ PC" is effectively outside the Firewall, mak- ing it more vulnerable to attacks. For this reason, you should only enable the DMZ feature when required. URL Filter The URL Filter allows you to block access to undesirable Web site To use this feature, you must define "filter strings".

  • Page 56: Access Control

    Buttons Use these buttons to delete the selected entry or all entries, as required. Delete/Delete All Multiple entries can be selected by holding down the CTRL key while selecting. (On the Macintosh, hold the SHIFT key while selecting.) Use this to add the current Filter String to the site list. Access Control This feature is accessed by the Access Control link on the Advanced menu.

  • Page 57: Access Control Screen

    LevelOne Broadband Router User Guide Access Control Screen To view this screen, select the Access Control link on the Advanced menu. Data - Access Control Screen Group Group Select the desired Group. The screen will update to display the settings for the selected Group. Groups are named "Default", "Group 1", "Group 2", "Group 3"...
  • Page 58 Internet Access Select the desired options for the current group: Restrictions Block by Schedule If Internet access is being blocked, you can choose to apply the blocking only during scheduled times. (If access is not blocked, no Scheduling is possible, and this setting has no effect.) Clicking this will open a sub-window where you can define or Define Schedule modify the Schedule.

  • Page 59: Group Members Screen

    LevelOne Broadband Router User Guide Group Members Screen This screen is displayed when the Members button on the Access Control screen is clicked. Use this screen to add or remove members (PCs) from the current group. The "Del >>" button will remove the selected PC (in the Members list) from the current group.

  • Page 60: Default Schedule Screen

    Default Schedule Screen This screen is displayed when the Define Schedule button on the Access Control screen is clicked. This schedule can be (optionally) applied to any Access Control Group. Blocking will be performed during the scheduled time (between the "Start" and "Finish" times.) Two (2) separate sessions or periods can be defined.

  • Page 61: Available Services

    LevelOne Broadband Router User Guide Services Screen This screen is displayed when the Edit Service List button on the Access Control screen is clicked. Data - Services Screen Available Services This lists all the available services. Available Services "Delete" button Use this to delete any Service you have added.

  • Page 62: Access Control Log

    New Service" area on screen. Cancel Clear the " Add New Service " area, ready for entering data for a new Service. Access Control Log To check the operation of the Access Control feature, an Access Control Log is provided. Click the View Log button on the Access Control screen to view this log.

  • Page 63: Remote Management

    LevelOne Broadband Router User Guide Remote Management This feature allows you to manage the LevelOne Broadband Router via the Internet. Figure 40: Remote Management Screen Data - Remote Management Screen Remote Management Enable Remote Enable to allow management via the Internet. If Disabled, this device will ignore management connection attempts from the Internet.

  • Page 64: Virtual Servers

    Virtual Servers This feature allows you to make Servers on your LAN accessible to Internet users. Normally, Internet users would not be able to access a server on your LAN because: Your Server does not have a valid external IP Address. Attempts to connect to devices on your LAN are blocked by the firewall in this device.

  • Page 65: Virtual Servers Screen

    LevelOne Broadband Router User Guide Virtual Servers Screen The Virtual Servers screen is reached by the Virtual Servers link on the Advanced screen. An example screen is shown below. This screen lists a number of pre-defined Servers, and allows you to define your own Servers.

  • Page 66: Defining Your Own Virtual Servers

    Buttons This will delete any Servers you have defined, and set the pre- Defaults defined Servers to use their default port numbers. Disable All This will cause the "Enable" setting of all Virtual Servers to be set OFF. Add a new entry to the Virtual Server list, using the data shown in the "Properties"...

  • Page 67: Connecting To The Virtual Servers

    3. Enter your data from www.dyndns.org in the LevelOne Broadband Router's DDNS screen. 4. The LevelOne Broadband Router will then automatically ensure that your current IP Address is recorded at http://www.dyndns.org 5. From the Internet, users will be able to connect to your Virtual Servers (or DMZ PC)

  • Page 68: Dynamic Dns Screen

    Dynamic DNS Screen Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following: Data - Dynamic DNS Screen DDNS Service DDNS Service DDNS Data User Name Enter the "User name" specified at the www.dyndns.org Web site when you registered.

  • Page 69: Firmware Upgrade

    LevelOne Broadband Router User Guide Firmware Upgrade The firmware (software) in the LevelOne Broadband Router can be upgraded using your Web Browser. You must first download the upgrade file, then select Upgrade on the Advanced menu. You will see a screen like the following.

  • Page 70: Chapter 7 Advanced Configuration

    Firewall and other security-related settings. View or clear all logs, set E-Mailing of log files. Logs On the FBR-1403TX, you can configure Logical Printers for use under Printer Port (FBR-1403TX) Unix. If not using LPD printing under Unix, these settings have no effect.

  • Page 71: Pc Database

    By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called "Obtain an IP Address automatically". The LevelOne Broadband Router uses the "Hardware Address" to identify each PC, not the name or IP address. The "Hardware Address" can only change if you change the PC's network card or adapter.

  • Page 72: Data - Pc Database Screen

    Data - PC Database Screen This lists all current entries. Data displayed is name (IP Address) type. Known PCs The "type" indicates whether the PC is connected to the LAN. Name If adding a new PC to the list, enter its name here. It is best if this matches the PC's "hostname".

  • Page 73: Pc Database (Admin)

    The IP address could change, but normally won't. DCHP Client - Reserved IP Address - Select this if the PC is set to be a DCHP client, and you wish to guarantee that the LevelOne Broadband Router will always allocate the same IP Address to this Enter the required IP address.
  • Page 74 MAC Address Select the appropriate option Automatic discovery - Select this to have the LevelOne Broad- band Router contact the PC and find its MAC address. This is only possible if the PC is connected to the LAN and powered On.

  • Page 75: Options

    LevelOne Broadband Router User Guide Options This screen allows advanced users to enter or change a number of settings. For normal opera- tion, there is no need to use this screen or change any settings. An example Options screen is shown below.
  • Page 76 But currently, this restriction only applies to users running Windows XP, who access the Properties via UPnP. (e.g. Right - click the LevelOne Broadband Router in My Network Places, and select Properties) MTU (Maximum Transmission Unit) value should only be changed if MTU size advised to do so by Technical Support.

  • Page 77: Security

    LevelOne Broadband Router User Guide Security This screen allows you to set Firewall and other security-related options. Data - Security Screen Firewall If enabled, DoS (Denial of Service) attacks will be detected and Enable DoS blocked. The default is enabled. It is strongly recommended that this Firewall setting be left enabled.
  • Page 78 Respond to and by network monitoring and diagnostic programs. ICMP If checked, the LevelOne Broadband Router will repond to ICMP packets received from the Internet. If not checked, ICMP packets from the Internet will be ignored. Disabling this option provides a slight increase in security.

  • Page 79: Logs

    Since only a limited amount of log data can be stored in the LevelOne Broadband Router, log data can also be E-mailed to your PC.
  • Page 80 E-mail Logs You can choose to have the logs E-mailed to you, by enabling either or both checkboxes. If enabled, the Log will sent to the specified E-mail address. The interval between E-mails is deter- mined by the "Send" setting. Select the desired option for sending the log by E-mail.

  • Page 81: Printer Port (Fbr-1403Tx Only)

    LevelOne Broadband Router User Guide Printer Port (FBR-1403TX only) On the FBR-1403TX, the following screen is available. These settings are only useful if using LPD printing under Unix. Normally, these settings do not need to be changed. Data - Printer Port Screen...

  • Page 82: Mac Address

    If your ISP has already recorded a MAC address, you can change the address used by the LevelOne Broadband Router to match the address recorded by your ISP. MAC Address Screen Select MAC Address from the Advanced menu to reach a screen like the example below.

  • Page 83: Routing

    If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing" page completely. If the LevelOne Broadband Router is only acting as a Gateway for the local LAN seg- ment, ignore the "Routing" page even if your LAN has other Routers.

  • Page 84: Static Routing

    For class "C" networks, the default mask is 255.255.255.0 Gateway IP Address - The IP Address of the Gateway or Router which the LevelOne Broadband Router must use to communicate with the destination above. (NOT the router at- tached to the remote segment.) Metric - The number of "hops"...

  • Page 85: Configuring Other Routers On Your Lan

    Configuring Other Routers on your LAN It is essential that all IP packets for devices not on the local LAN be passed to the LevelOne Broadband Router, so that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to use the LevelOne Broadband Router as the Default Route or Default Gateway.

  • Page 86: Broadband Router

    (192.168.1.xx) Router B (192.168.1.90) For the LevelOne Broadband Router's Routing Table For the LAN shown above, with 2 routers and 3 LAN segments, the LevelOne Broadband Router requires 2 entries as follows. Entry 1 (Segment 1) Destination IP Address Network Mask...

  • Page 87: Appendix A Troubleshooting

    This chapter covers some common problems that may be encountered while using the Leve- lOne Broadband Router and some possible solutions to them. If you follow the suggested steps and the LevelOne Broadband Router still does not function properly, contact your dealer for further advice.

  • Page 88: Printing (Fbr-1403Tx)

    Problem 2: Some applications do not run properly when using the LevelOne Broadband Router. The LevelOne Broadband Router processes the data passing through it, so it Solution 2: is not transparent. Use the Special Applications feature to allow the use of Internet applications which do not function correctly.
  • Page 89 LevelOne Broadband Router User Guide 4. The printer wizard will display a message stating that “The Network Printer is off-line”. This is OK. Continue the Add Printer Wizard until finished. 5. When finished, go to Control Panel-Printers. The printer icon will be grayed out indicating the printer is not ready.
  • Page 90 8. Click OK to see the Print Port Configuration screen, as shown below. 9. Click the Browse Device button, select the desired Multi-function LevelOne Broadband Router, and click OK. 10. Click OK to return to the Printers folders, and right-click on the Printer.

  • Page 91: Appendix B Specifications

    This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FBR-1402TX LevelOne 1 Port Broadband Router with 4 LAN Port 140mm(W) * 85mm(D) * 27mm(H)

  • Page 92: Fbr-1403Tx

    This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FBR-1403TX LevelOne 1 Port Broadband Router with 4 LAN Port, Printer Server...
