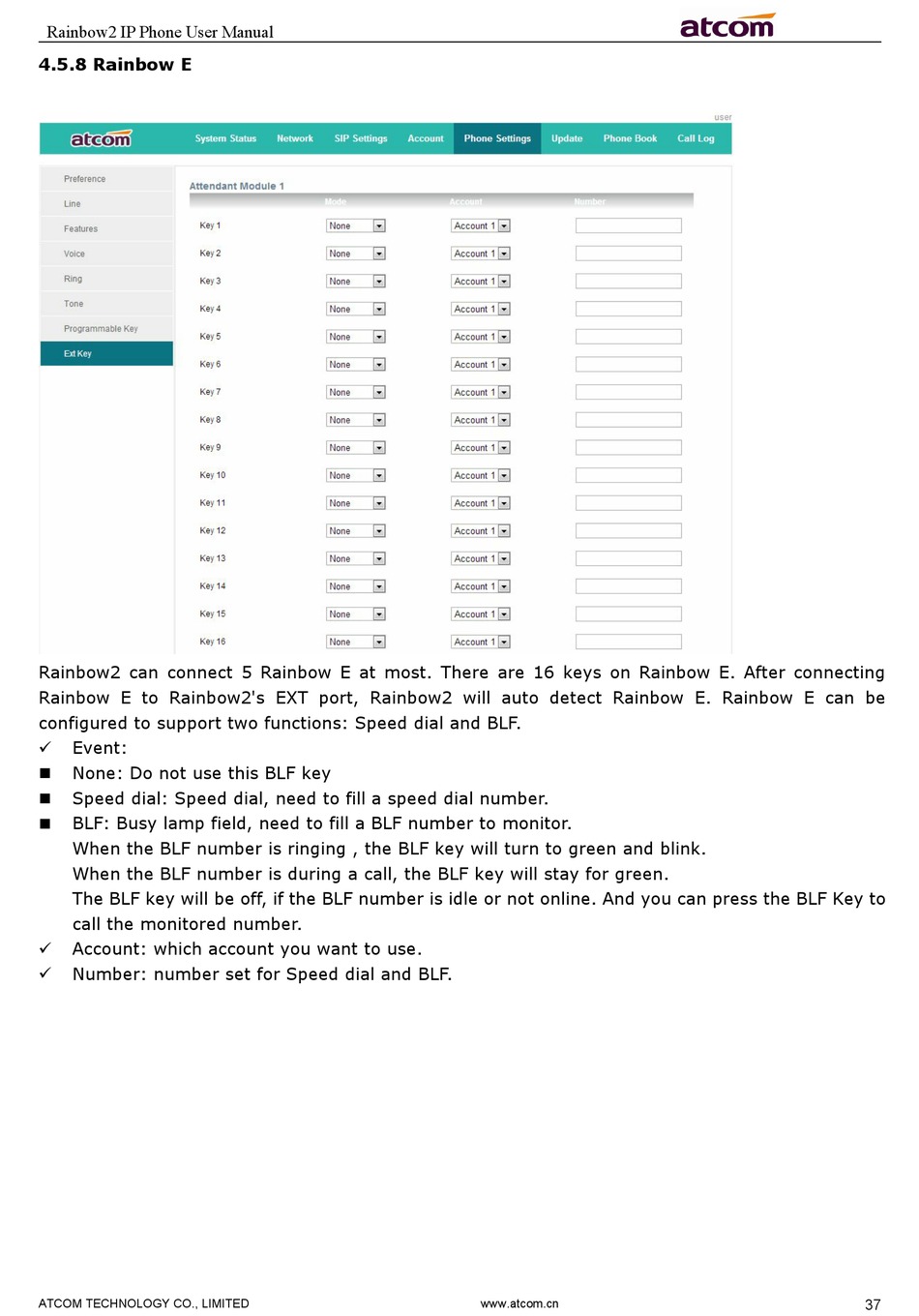

4.5.8 Rainbow E

Rainbow2 can connect 5 Rainbow E at most. There are 16 keys on Rainbow E. After connecting
Rainbow E to Rainbow2's EXT port, Rainbow2 will auto detect Rainbow E. Rainbow E can be
configured to support two functions: Speed dial and BLF.
Event:

None: Do not use this BLF key

Speed dial: Speed dial, need to fill a speed dial number.

BLF: Busy lamp field, need to fill a BLF number to monitor.

When the BLF number is ringing , the BLF key will turn to green and blink.
When the BLF number is during a call, the BLF key will stay for green.
The BLF key will be off, if the BLF number is idle or not online. And you can press the BLF Key to
call the monitored number.
Account: which account you want to use.

Number: number set for Speed dial and BLF.

