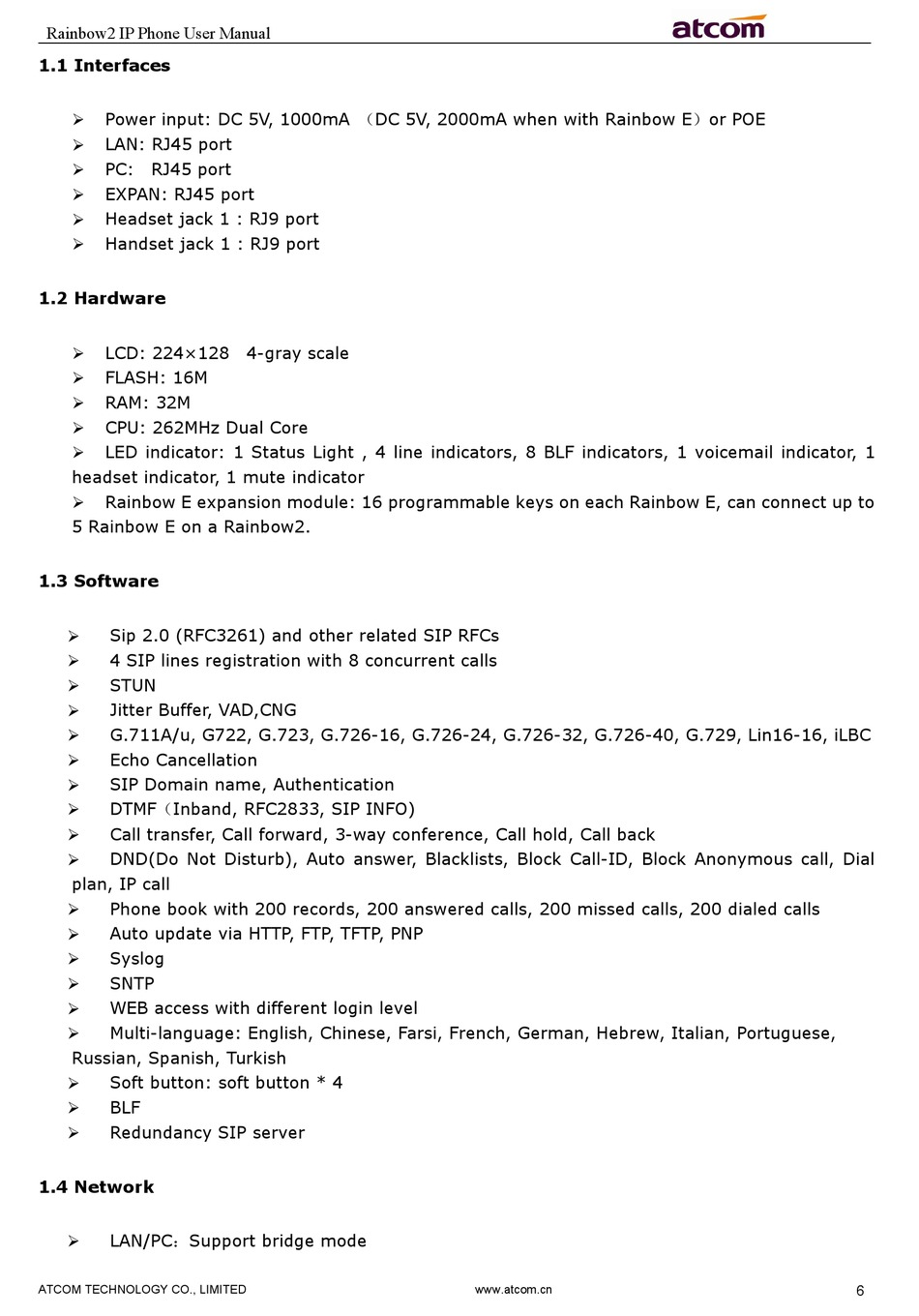

Rainbow2 IP Phone User Manual

1.1 Interfaces

Power input: DC 5V, 1000mA （DC 5V, 2000mA when with Rainbow E）or POE

LAN: RJ45 port

PC: RJ45 port

EXPAN: RJ45 port

Headset jack 1 : RJ9 port

Handset jack 1 : RJ9 port


1.2 Hardware

LCD: 224×128 4-gray scale

FLASH: 16M

RAM: 32M

CPU: 262MHz Dual Core

LED indicator: 1 Status Light , 4 line indicators, 8 BLF indicators, 1 voicemail indicator, 1

headset indicator, 1 mute indicator
Rainbow E expansion module: 16 programmable keys on each Rainbow E, can connect up to

5 Rainbow E on a Rainbow2.

1.3 Software

Sip 2.0 (RFC3261) and other related SIP RFCs

4 SIP lines registration with 8 concurrent calls

STUN

Jitter Buffer, VAD,CNG

G.711A/u, G722, G.723, G.726-16, G.726-24, G.726-32, G.726-40, G.729, Lin16-16, iLBC

Echo Cancellation

SIP Domain name, Authentication

DTMF（Inband, RFC2833, SIP INFO)

Call transfer, Call forward, 3-way conference, Call hold, Call back

DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous call, Dial

plan, IP call
Phone book with 200 records, 200 answered calls, 200 missed calls, 200 dialed calls

Auto update via HTTP, FTP, TFTP, PNP

Syslog

SNTP

WEB access with different login level

Multi-language: English, Chinese, Farsi, French, German, Hebrew, Italian, Portuguese,

Russian, Spanish, Turkish
Soft button: soft button * 4

BLF

Redundancy SIP server


1.4 Network

LAN/PC：Support bridge mode

