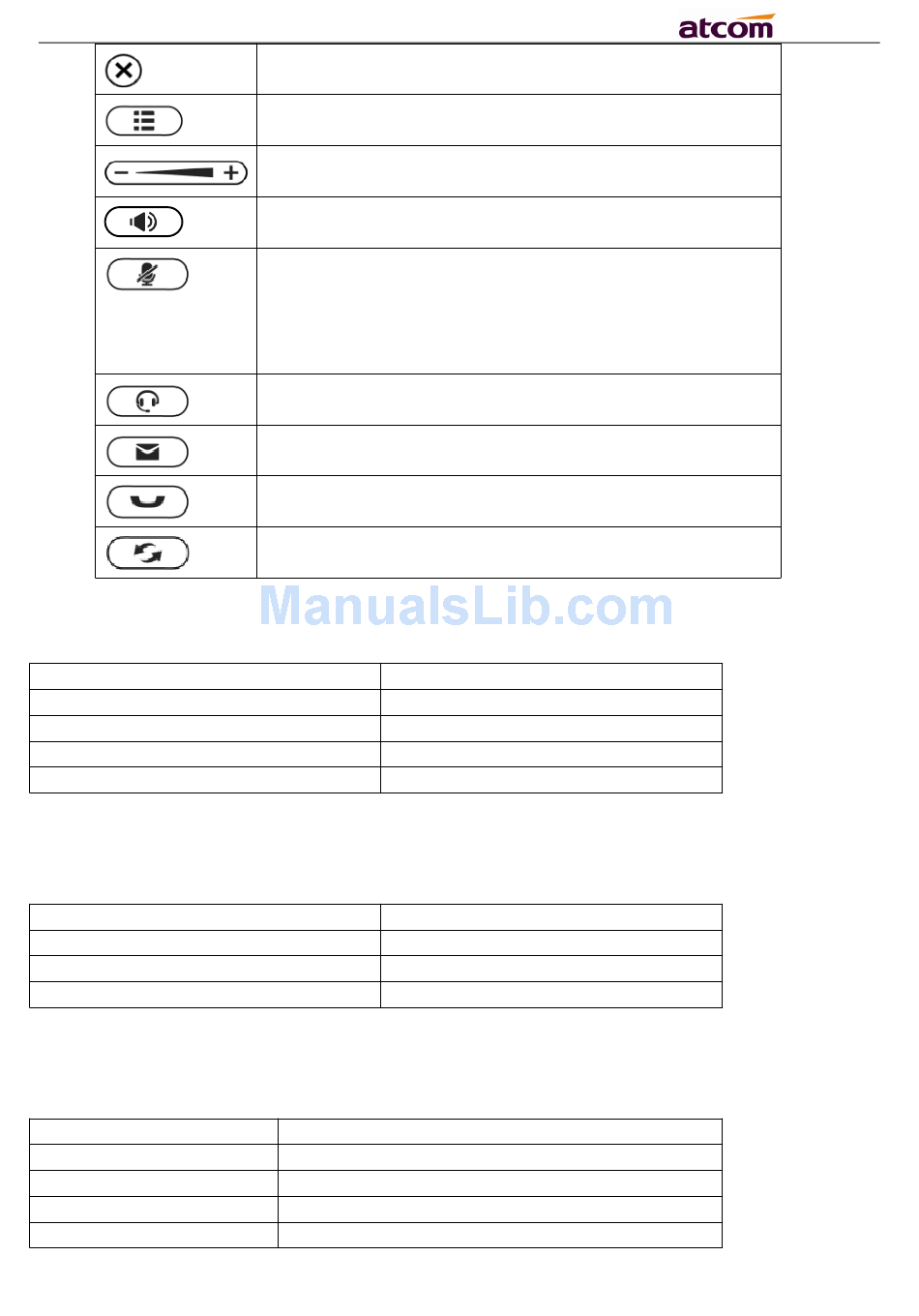

2.2 Line keys LED

LED Status
Off
Blink in green at 120ms off, 120ms on
Green
Blink in red at 600ms off, 600ms on

2.3 Status Indicator

LED Status
On
Off
Blink in red at 120ms on, 120ms off

2.4 Programmable keys LED

LED Status
Off
Green
Red
Fast blink in red
Table3 Programmable keys LED Status and Description
ATCOM TECHNOLOGY CO., LIMITED
Cancel users' operation.
Enter menu settings.
Adjust the volume (speaker/handset/headset/ring). Volume
level will be displayed on LCD when pressing volume key.
Pick up and hung up under the speaker mode.
Mute the mic in a conversation by pressing the Mute button;
this prevents the person on the active call from hearing
what you or someone else in the room is saying.
If the call is muted, the mute LED is lighted in red.
To un-mute, press the Mute button again.
Pick up and hung up under headset mode. The LED button
will be lighted when talking in headset mode.
Check the Voicemail status. The LED button will be lighted
when there is a new message.
Hold the current call.
Redial the last dialed number.
Description
The line is idle or disabled for register
The line has incoming call
The line is talking
The line is held
Table1 Line keys LED Status and Description
Description
Rainbow2 is being started
Rainbow2 is standby
There is incoming call
Table2 Status Indicator LED Status and Description
Description
The monitored account is unregistered
The monitored account is idle
The monitored account is talking
The monitored account is ringing
