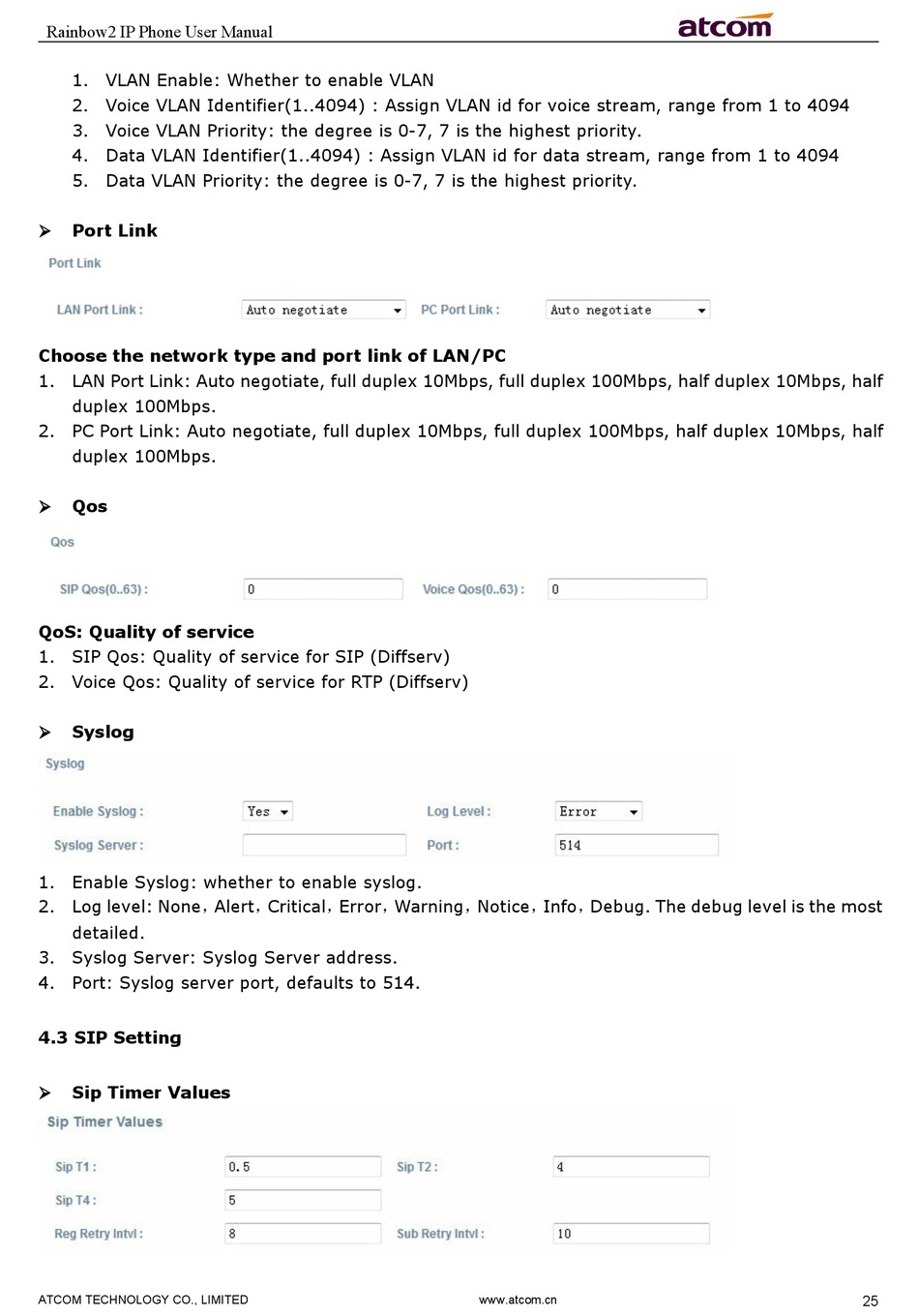

Rainbow2 IP Phone User Manual
1. VLAN Enable: Whether to enable VLAN
2. Voice VLAN Identifier(1..4094) : Assign VLAN id for voice stream, range from 1 to 4094
3. Voice VLAN Priority: the degree is 0-7, 7 is the highest priority.
4. Data VLAN Identifier(1..4094) : Assign VLAN id for data stream, range from 1 to 4094
5. Data VLAN Priority: the degree is 0-7, 7 is the highest priority.
Port Link

Choose the network type and port link of LAN/PC
1. LAN Port Link: Auto negotiate, full duplex 10Mbps, full duplex 100Mbps, half duplex 10Mbps, half
duplex 100Mbps.
2. PC Port Link: Auto negotiate, full duplex 10Mbps, full duplex 100Mbps, half duplex 10Mbps, half
duplex 100Mbps.
Qos

QoS: Quality of service
1. SIP Qos: Quality of service for SIP (Diffserv)
2. Voice Qos: Quality of service for RTP (Diffserv)
Syslog

1. Enable Syslog: whether to enable syslog.
2. Log level: None， Alert， Critical， Error， Warning， Notice， Info， Debug. The debug level is the most
detailed.
3. Syslog Server: Syslog Server address.
4. Port: Syslog server port, defaults to 514.

4.3 SIP Setting

Sip Timer Values

