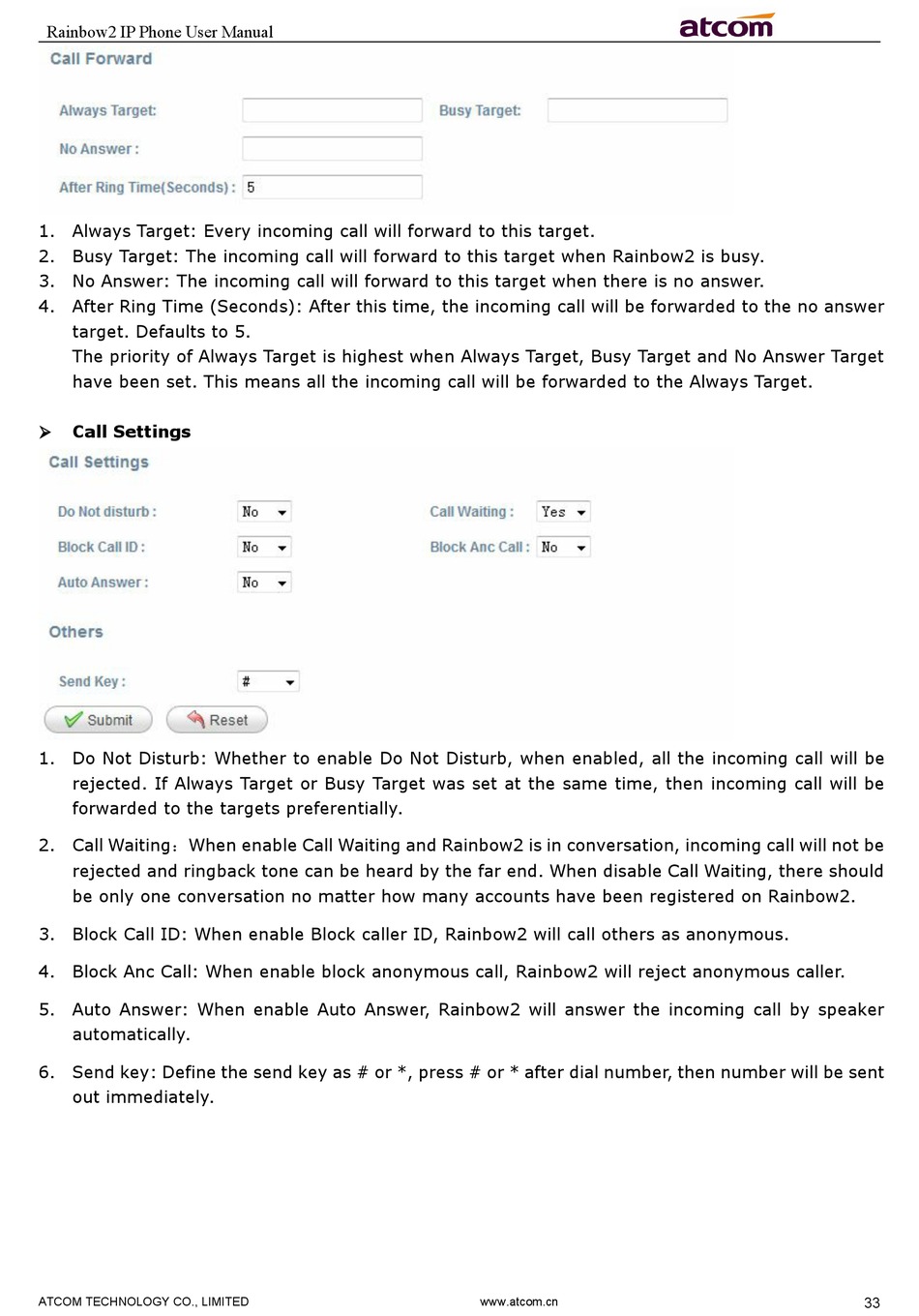

ATCOM Rainbow2 User Manual page 33

Rainbow2 IP Phone User Manual
1. Always Target: Every incoming call will forward to this target.
2. Busy Target: The incoming call will forward to this target when Rainbow2 is busy.
3. No Answer: The incoming call will forward to this target when there is no answer.
4. After Ring Time (Seconds): After this time, the incoming call will be forwarded to the no answer
target. Defaults to 5.
The priority of Always Target is highest when Always Target, Busy Target and No Answer Target
have been set. This means all the incoming call will be forwarded to the Always Target.
Call Settings

1. Do Not Disturb: Whether to enable Do Not Disturb, when enabled, all the incoming call will be
rejected. If Always Target or Busy Target was set at the same time, then incoming call will be
forwarded to the targets preferentially.
2. Call Waiting：When enable Call Waiting and Rainbow2 is in conversation, incoming call will not be
rejected and ringback tone can be heard by the far end. When disable Call Waiting, there should
be only one conversation no matter how many accounts have been registered on Rainbow2.
3. Block Call ID: When enable Block caller ID, Rainbow2 will call others as anonymous.
4. Block Anc Call: When enable block anonymous call, Rainbow2 will reject anonymous caller.
5. Auto Answer: When enable Auto Answer, Rainbow2 will answer the incoming call by speaker
automatically.
6. Send key: Define the send key as # or *, press # or * after dial number, then number will be sent
out immediately.
