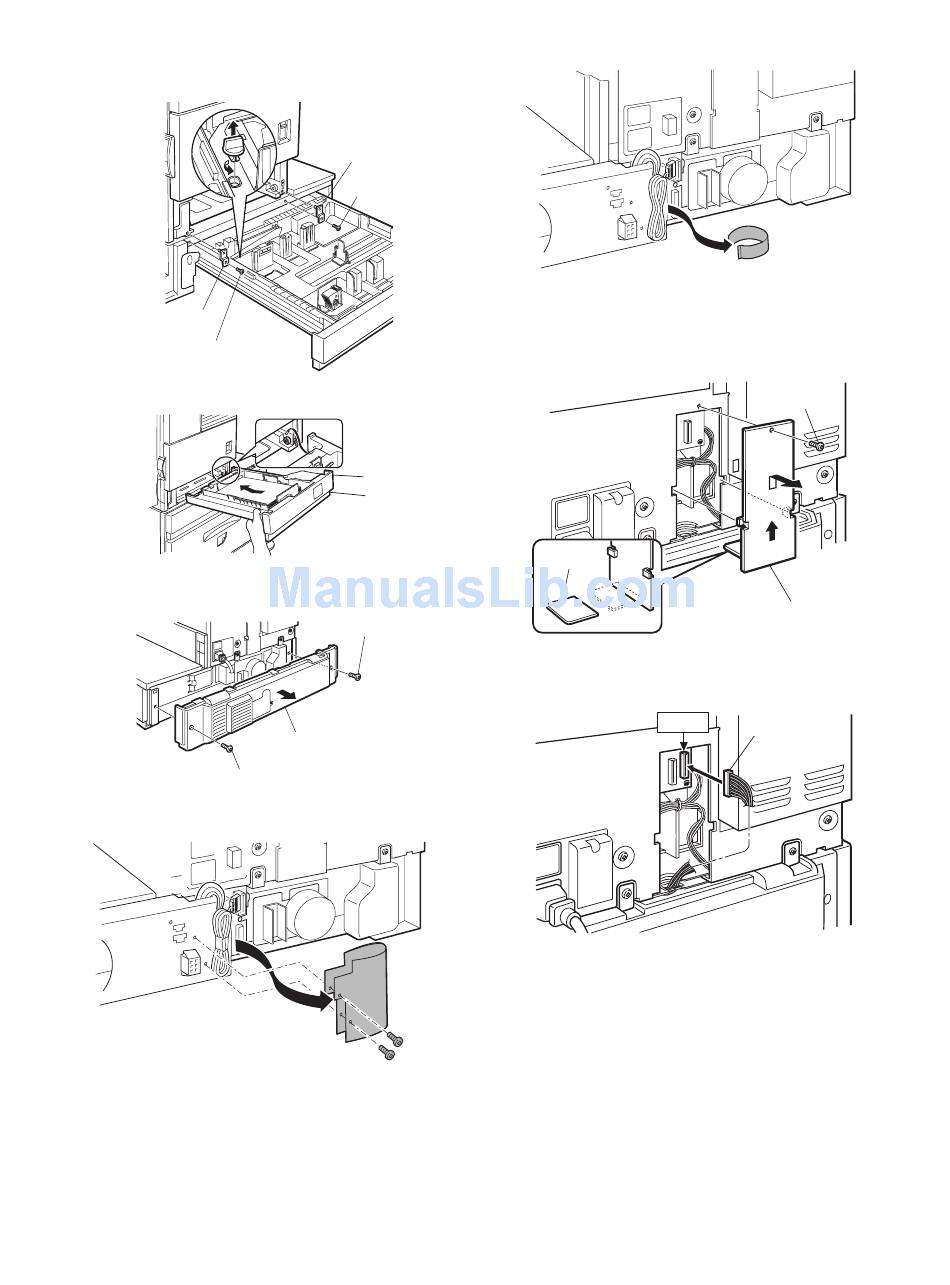

<2> Pull out the paper tray of the multi purpose drawer until it
stops and attach the front mounting plates using a supplied
screw for each.
Then, remove the lock of the paper tray and close the tray.
Front mounting plate
Screw
<3> Reattach the paper tray of the main unit of the printer.
4) Remove the multi rear cabinet.
<1> Remove the two screws that secure the multi rear cabinet.
Screw
<2> Remove the two screws that secure the Harness protection
sheet.
AR-M351U/M451U, AR-M355U/M455U UNPACKING AND INSTALLATION 6 - 8
Front
mounting plate
Screw
Screw
Multi rear cabinet
<3> Remove the filament tape that secure the the power supply I/
F harness.
5) Connect the harness to the main unit of the printer.
<1> Remove the screw that fixes the harness cover of the main
unit of the printer and then slide the harness cover up to
remove it.
Process the harness cover as shown in the illustration.
Cut out.
<2> Connect the connector of the relay harness of the multi pur-
pose drawer to the connector of the PCU PWB of the main
unit of the printer.
CN10
Screw
Harness cover
Connector
