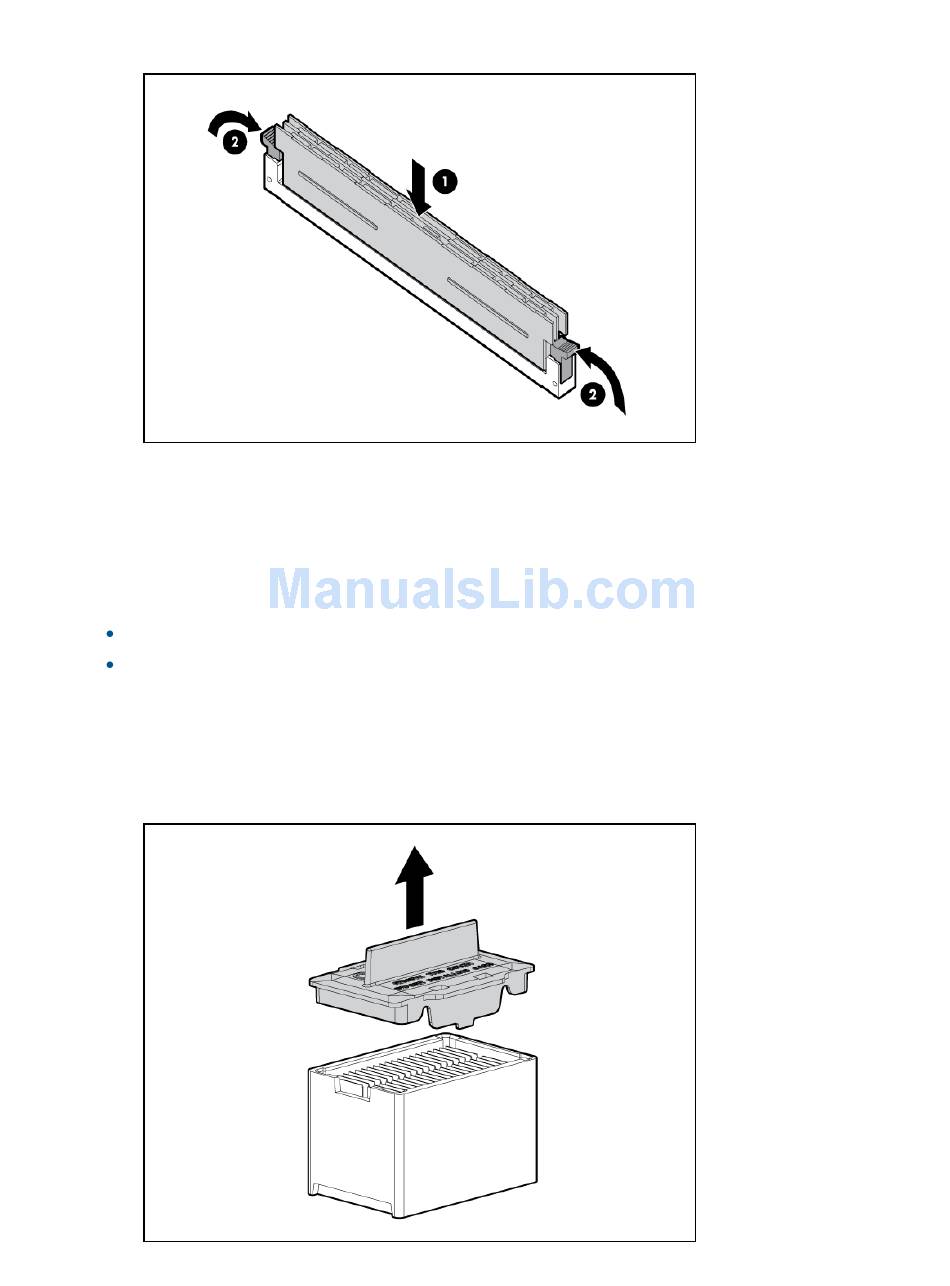

4. Insert a DIMM in a slot and push down firmly until the latches click shut.

Mezzanine cards

Optional mezzanine cards enable additional network connectivity and provide Fibre Channel
support. For mezzanine card locations, see
Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards.
The card type determines where it can be installed in the server blade:
Install Type I mezzanine cards on any mezzanine connector.
Install Type II mezzanine cards only on Mezzanine 2 connector or Mezzanine 3 connector.
To install a card:
1. Power off the server blade and remove it from the server blade enclosure
server blade for
2. Remove the access panel
3. Remove the mezzanine connector cover.
52 Optional components
servicing").
("Access panel" (page
"Server blade components" (page
113)).
9).
("Preparing the
