Both the username and password are case sensitive. The default username and
password are printed on the bottom label of your unit. After you log in to the Zoom
Configuration Manager interface, you can change the default password on the
Status - Security page.
4
Click the Login button to access the Cable Modem/Router. The Status page
appears, showing connection status information about your Cable Modem/Router.

Understanding the Configuration Manager Interface Screens

The top of the management interface contains a menu bar you use to select menus for
configuring the Cable Modem/Router. When you click a menu item, information and any
configuration settings associated with the menu appear in the main area of the interface
(see Figure 2). If the displayed information exceeds what can be shown in the main area,
scroll bars appear to the right of the main area so you can scroll up and down through the
information.

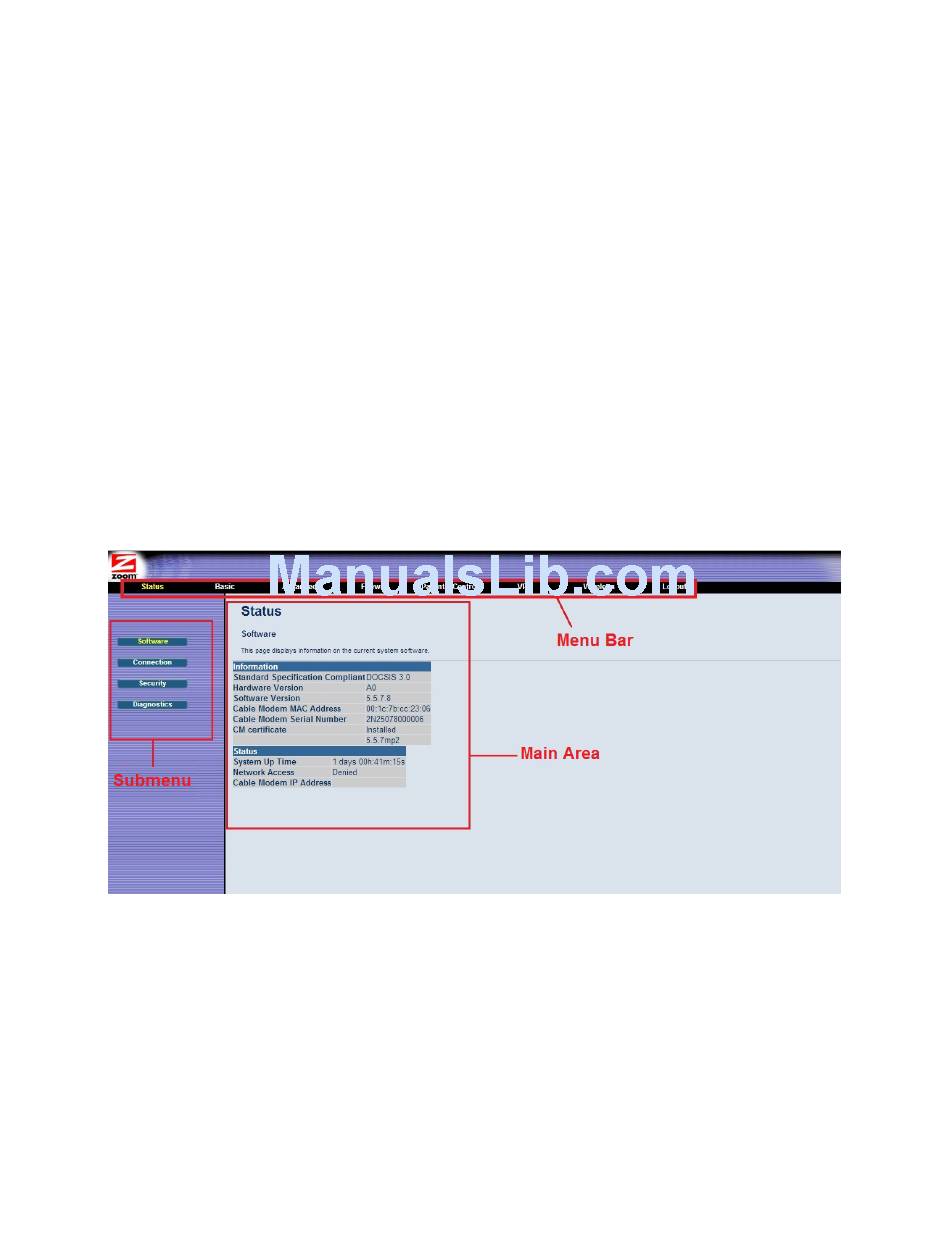

Figure 2. Main Areas on the Configuration Manager Interface
Every menu has submenus associated with it. If you click a menu item, the submenus
appear on the left frame of the Configuration Manager. For example, if you click the
Status menu item, the submenu Software, Connection, Security and Diagnostics
appear on the left column (see Figure 3).
