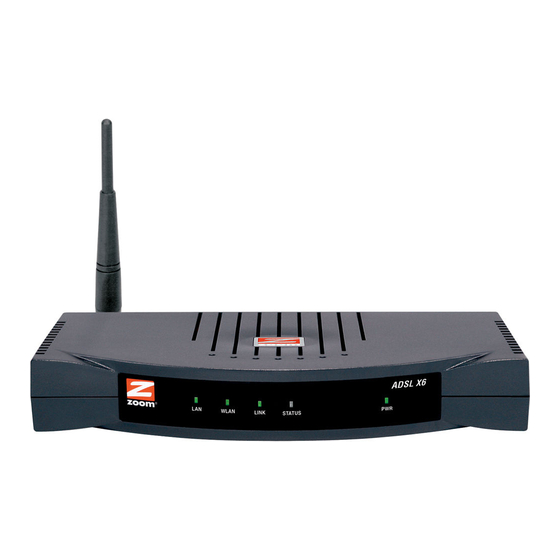

Zoom ADSL X6 Quick Start Manual

Z O O M A D S L X 6
Quick Start
This Quick Start tells you how to install your X6 with a Windows
PC. Detailed information and installation instructions for
Macintosh and Linux are in the User Guide on the CD. The X6
requires that you have ADSL service, which is usually called DSL
in the USA.
1
Turn on the Windows computer that you will use for
setup. This can be any Windows Vista™, XP, 2000, Me or
98 computer with an available Ethernet port.
For Windows Vista only: You must follow these steps to turn on
Telnet Client:
a Click Start, select Control Panel, then double-click Programs and
Features.
b In Programs and Features, in the Tasks pane, click Turn
Windows features
on or off.
c At the User Account Control message, click Continue.
d In the Windows Features dialog box, select Telnet Client, click
OK, and wait
while the feature is configured.
e In the Uninstall or Change a Program window, click the Close box
to exit.
2
Close any open programs, including any antivirus software
or pop-up blockers.
3
Insert the supplied CD into the CD drive of your
computer. The CD should start automatically. (If the CD
does not start automatically, click the Windows Start button,
click Run, and then type E:\setup.exe, where E is the letter
of your CD drive.)
4
Follow the on-screen prompts for the Install Assistant.
Congratulations! Your installation is complete.
To test your installation, open your browser and go to a familiar
Web site. If your browser works, installation is complete for the
computer you used for setup. If you'd like, you can also connect
other computers to the X6, as discussed on the next page. If your
browser doesn't work, see the Troubleshooting Tips on page 3.
ADSL X6 User Guide
®
1
