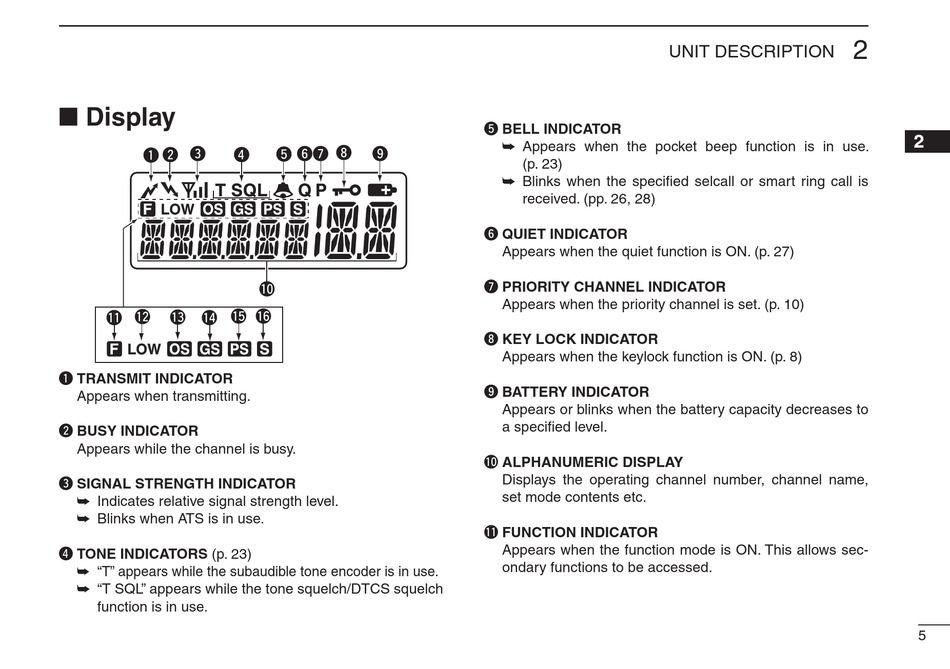

Display

■
e
q w r
!2 !3 !4 !5 !6
!1
q TRANSMIT INDICATOR
Appears when transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
➥
Blinks when ATS is in use.
➥
r TONE INDICATORS (p. 23)
"T" appears while the subaudible tone encoder is in use.
➥
"T SQL" appears while the tone squelch/DTCS squelch
➥
function is in use.
i
t y u o
!0
t BELL INDICATOR
Appears when the pocket beep function is in use.
➥
(p. 23)
Blinks when the specified selcall or smart ring call is
➥
received. (pp. 26, 28)
y QUIET INDICATOR
Appears when the quiet function is ON. (p. 27)
u PRIORITY CHANNEL INDICATOR
Appears when the priority channel is set. (p. 10)
i KEY LOCK INDICATOR
Appears when the keylock function is ON. (p. 8)
o BATTERY INDICATOR
Appears or blinks when the battery capacity decreases to
a specified level.
!0 ALPHANUMERIC DISPLAY
Displays the operating channel number, channel name,
set mode contents etc.
!1 FUNCTION INDICATOR
Appears when the function mode is ON. This allows sec-
ondary functions to be accessed.
