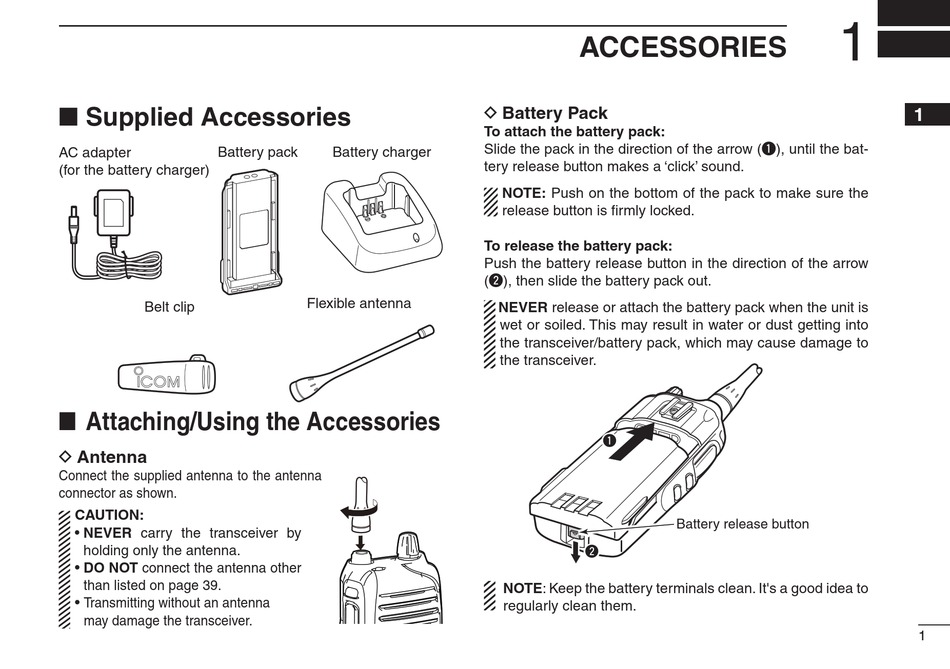

Accessories; Supplied Accessories; Attaching/Using The Accessories; D Antenna - Icom IC-41W Instruction Manual

Supplied Accessories

■
Battery pack
AC adapter
(for the battery charger)
Belt clip

Attaching/Using the Accessories

■
D Antenna
Connect the supplied antenna to the antenna
connector as shown.
CAUTION:
• NEVER carry the transceiver by
holding only the antenna.
• DO NOT connect the antenna other
than listed on page 39.
• Transmitting without an antenna
may damage the transceiver.
D
To attach the battery pack:
Slide the pack in the direction of the arrow (q), until the bat-
Battery charger
tery release button makes a 'click' sound.
To release the battery pack:
Push the battery release button in the direction of the arrow
(w), then slide the battery pack out.
Flexible antenna

ACCESSORIES

Battery Pack
NOTE: Push on the bottom of the pack to make sure the
release button is firmly locked.
NEVER release or attach the battery pack when the unit is
wet or soiled. This may result in water or dust getting into
the transceiver/battery pack, which may cause damage to
the transceiver.
q
Battery release button
w
NOTE: Keep the battery terminals clean. It's a good idea to
regularly clean them.
