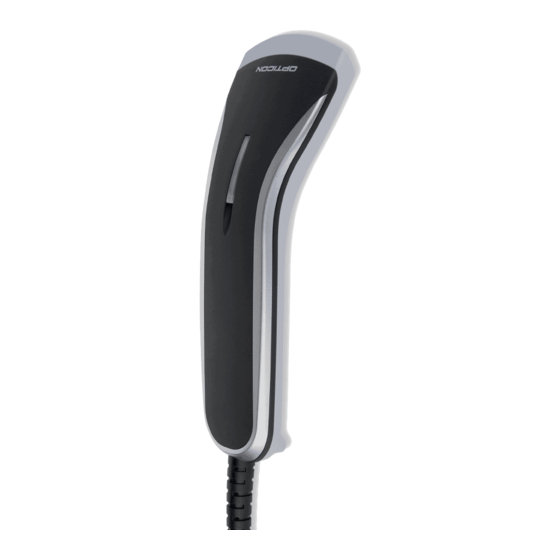

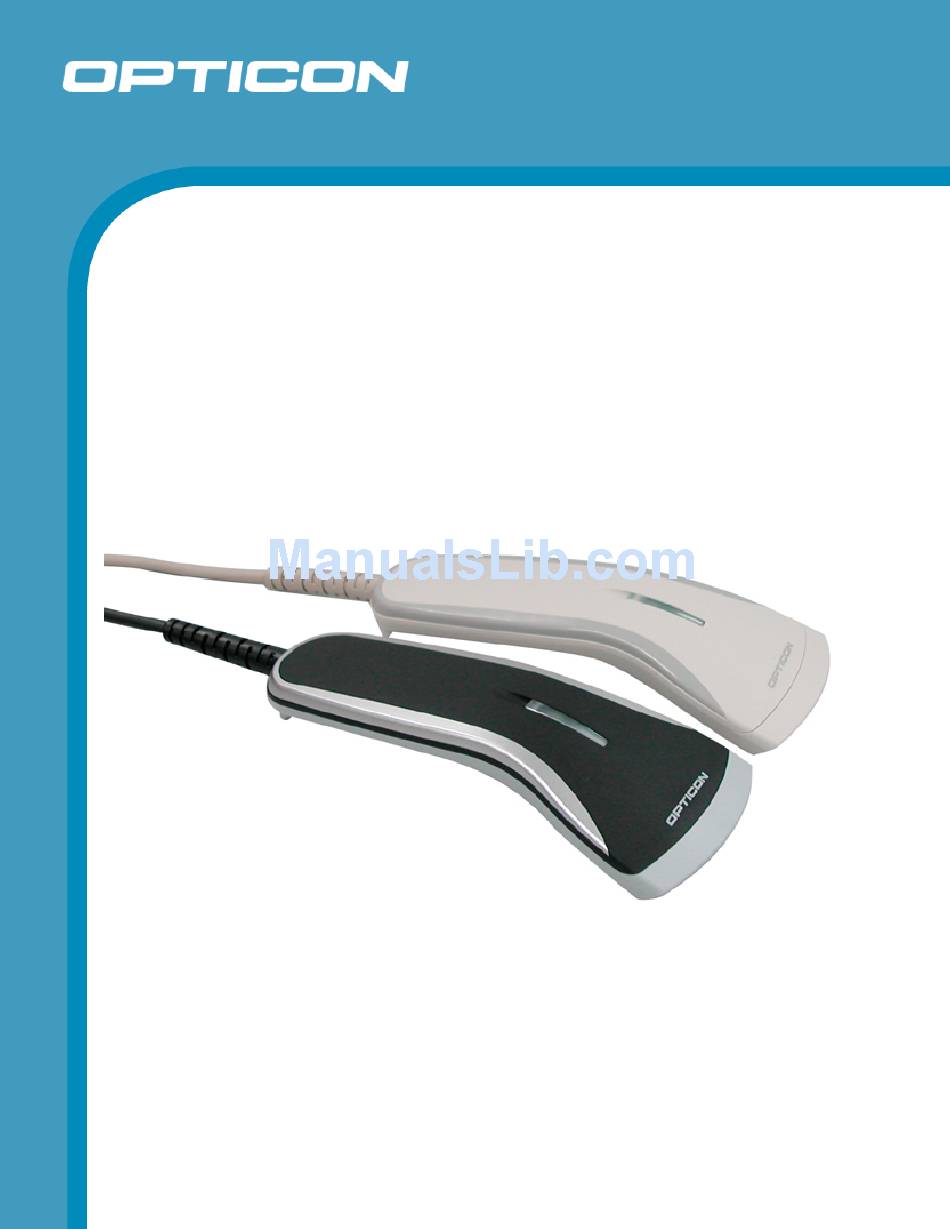

- Page 1 Laser Barcode Scanner OPR 2001 Specifications Manual The OPR 2001 is a handheld laser barcode scanner.
-
Page 2: Document History
Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
Opticon OPR 2001 Specifications Manual Contents 1. Abstract ............................7 2. Overview............................7 3. Physical Features ........................8 3.1. Dimensions ......................... 8 3.2. Weight ..........................8 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity ................. 8 4.2. Storage Temperature and Humidity ..................8 4.3. - Page 4 Opticon OPR 2001 Specifications Manual 8.1.5. Character Format........................19 8.1.6. Character Format........................19 8.1.7. Communication Format......................19 8.1.8. Handshaking ..........................20 8.2. USB-HID and USB-VCP Interface Specifications ............. 25 8.2.1. Settings ............................25 8.2.2. Interface Circuit........................25 8.3. DOS/V Wedge Interface Specification ................25 9. Cable and Connector ....................... 26 9.1.
- Page 5 Opticon OPR 2001 Specifications Manual 14. Reliability........................... 36 15. Trigger and Read Options ....................... 37 15.1. Trigger Modes ........................37 15.2. Read Modes........................37 15.3. Auto Trigger Options ......................38 15.3.1. Auto Trigger Sensor.........................38 16. Trigger and Read Settings ....................... 40 16.1.1.
- Page 6 Opticon OPR 2001 Specifications Manual Figure 13: Cannot receive command ..................21 Figure 14: Signal timing......................22 Figure 15: ACK/NAK........................23 Figure 16: ACK/NAK—No response................... 24 Figure 17: Interface circuit ......................25 Figure 18: RS-232C cable ......................26 Figure 19: USB cable ......................... 26 Figure 20: USB "A"...
-
Page 7: Abstract
This manual provides specifications for the OPR 2001 laser barcode scanner. 2. Overview The OPR 2001 is a handheld laser barcode scanner. The use of a short-wavelength red laser beam enhances visibility when scanning lines. The OPR 2001 can be configured to scan both positive and negative barcodes. Scanned data is transferred via an RS-232C, USB, or Wedge interface. -
Page 8: Physical Features
Opticon OPR 2001 Specifications Manual 3. Physical Features 3.1. Dimensions W 151.0 x D 56.0 x H 30.5 mm 3.2. Weight 60 grams max. (excluding cable weight) 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -5° to +50° C Humidity: 20 to 85% RH 4.2. -
Page 9: Ambient Light Immunity
Opticon OPR 2001 Specifications Manual 4.3. Ambient Light Immunity Decoding performance is guaranteed when the range of illumination on a barcode surface is between zero and the following values: Incandescent light 3,000 lx Fluorescent light 3,000 lx Sunlight 50,000 lx... -
Page 10: Electrical Specifications
Opticon OPR 2001 Specifications Manual 5. Electrical Specifications 5.1. Electrical Characteristics: RS-232C Parameter Symbol Unit Notes Power supply voltage Operating current — No buzzer Peak current — PEAK Standby current — Startup time — — 5.2. Electrical Characteristics: USB, Wedge... -
Page 11: Optical Specifications
Opticon OPR 2001 Specifications Manual 6. Optical Specifications 6.1. Laser Scan Specifications Parameter Specification Unit Light-emitting element Red laser diode — Emission wavelength 650 ±10 (25° C) Light output 1.0 or less Scanning method Bi-directional scanning — Scanning speed 100 ±20... -
Page 12: Technical Specifications
Opticon OPR 2001 Specifications Manual Measurement is done from the center of the laser scan line. Figure 2: Laser scanning tilt and curvature 7. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. -
Page 13: Scan Area And Resolution
Opticon OPR 2001 Specifications Manual 7.3. Scan Area and Resolution Depth of Field 7.3.1. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 3: Depth of field... -
Page 14: Pitch, Skew, And Tilt
Opticon OPR 2001 Specifications Manual Resolution Symbology Quiet Zone Digits 1.0 mm Code 39 25 mm 0.5 mm Code 39 18 mm 0.25 mm Code 39 10 mm 0.15 mm Code 39 7 mm 0.127 mm Code 39 5 mm 7.4. -
Page 15: Skew Angle And Dead Zone
Opticon OPR 2001 Specifications Manual Skew Angle and Dead Zone 7.4.2. Scanning performance is guaranteed when skew angle: β ≤ ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection) -
Page 16: Tilt Angle
Opticon OPR 2001 Specifications Manual Tilt Angle 7.4.3. Scanning performance is guaranteed when γ ≤ ±20° Figure 6: Tilt angle Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 70 mm from the front edge of the scanner Label: Pitch, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39,... -
Page 17: Curvature
Opticon OPR 2001 Specifications Manual 7.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R = 15 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R = 20 mm. Figure 7: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 18: Signal Level
Opticon OPR 2001 Specifications Manual Signal Level 8.1.2. Signal Name RS-232C Level (V) Mark/OFF Space/ON -5 to -15 +5 to +15 -3 to -15 +3 to +15 -5 to -15 +5 to +15 -3 to -15 +3 to +15 Pin Assignment 8.1.3. -
Page 19: Interface Circuit
Opticon OPR 2001 Specifications Manual Interface Circuit 8.1.4. Figure 8: Interface circuit Character Format 8.1.5. Uses the same format for both sending and receiving. Character Format 8.1.6. Figure 9:Character format (same for both sending and receiving) Communication Format 8.1.7. Figure 10: Communication format... -
Page 20: Handshaking
Opticon OPR 2001 Specifications Manual Handshaking 8.1.8. Select handshaking options using the menu or command listed below. Handshaking Menu/Command No handshake BUSY/READY MODEM ACK/NAK ACK/NAK NO RESPONSE a) No Handshaking The scanner attempts the communication regardless of the state of the host computer. -
Page 21: Figure 12: Busy/Ready Communication
Opticon OPR 2001 Specifications Manual b) BUSY/READY The scanner and the host computer notify each other of their state and whether they can receive data with BUSY/READY through an RTS line. They can communicate state to each other through a CTS line when connected as in the following figure. -
Page 22: Figure 14: Signal Timing
Opticon OPR 2001 Specifications Manual CTS, TXD signal timing When the CTS line (RTS signal of the host) is turned OFF while sending a TxD signal, the scanner transmits one character and waits. When the CTS signal is turned ON while transmitting a character, the character will be transmitted. -
Page 23: Figure 15: Ack/Nak
Opticon OPR 2001 Specifications Manual Figure 15: ACK/NAK... -
Page 24: Figure 16: Ack/Nak-No Response
Opticon OPR 2001 Specifications Manual d) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. -
Page 25: Usb-Hid And Usb-Vcp Interface Specifications
Opticon OPR 2001 Specifications Manual 8.2. USB-HID and USB-VCP Interface Specifications There are two models that use a USB interface: HID (Human Interface Device Class) and COM (Communication Device Class). The USB-COM model is referred to as USB-VCP because a VCP (Virtual Communication Port) allows virtual serial communication and the commands can be transmitted from the host computer. -
Page 26: Cable And Connector
Opticon OPR 2001 Specifications Manual 9. Cable and Connector 9.1. RS-232C Cable (Standard specification) Figure 18: RS-232C cable Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1500 +50, -0 mm Cores: 6 insulated wires, 1 conductive wire Weight: Approximately 40 g 9.2. -
Page 27: Connector
Opticon OPR 2001 Specifications Manual Connector 9.2.1. a) USB "A" connector Figure 20: USB "A" connector Pin Assignment 9.2.2. Signal -DATA +DATA 9.3. Wedge Cable (Standard specification) Figure 21: Wedge cable Type: Y cable Diameter: Φ4.8 ±0.5 mm Length: 1500 +50, -0 mm... -
Page 28: Connectors
Opticon OPR 2001 Specifications Manual Connectors 9.3.1. a) DOS/V Host Connector Figure 22: DOS/V host connector Contact Number Signal Name CPU_DATA CPU_CLK b) DOS/V Keyboard Connector Figure 23: DOS/V keyboard connector Contact Number Signal Name KEY_DATA KEY_CLK Do not use the keyboard while the scanner is transmitting the data to the host. -
Page 29: Connector Specification (Scanner Side)
Opticon OPR 2001 Specifications Manual 9.4. Connector Specification (Scanner Side) CN1 (12-pin) Pin No RS-232C Wedge — — — — — — — — — — KEY_CLK －DATA KEY_DATA ＋DATA — CPU_CLK — CPU_DATA FG (shield) FG (shield) FG (shield) 10. - Page 30 Opticon OPR 2001 Specifications Manual USB-HID Functions Menu labels Menu codes _ZZ_ USB-HID _SU_ _ZZ_ USB-VCP Functions Menu labels Menu codes _ZZ_ USB-VCP _ZZ_ Wedge (with external keyboard) Functions Menu labels Menu codes _ZZ_ AT-Wedge _UB_ Keyboard layout: _KM_ with keyboard...
-
Page 31: Default Settings 1: Readable Codes
Opticon OPR 2001 Specifications Manual 10.2. Default Settings 1: Readable Codes Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length UPC-A — UPC-A Add-on — UPC-E — UPC-E Add-on — EAN-13 — EAN-13 Add-on — EAN-8 — EAN-8 Add-on —... -
Page 32: Default Settings 2: Read Options, Trigger, Buzzer
Opticon OPR 2001 Specifications Manual Notes: In the “Reading” column, “ ” means “Enable reading” and “X” means “Disable reading.” In the “Transmit code length” column, “ ” means “Transmit code length” and “X” means “Do not transmit code length.”... -
Page 33: Serial Number
Size of the package (after assembly: 245 (W) x 110 (D) x 40 (H) mm 12.2. Collective Packaging Put 50 individually packaged OPR 2001 scanners in a collective packaging box. Dimensions: 650 mm (W) x 550 mm (D) x 250 mm (H) Note: The “RO”... -
Page 34: Durability
Opticon OPR 2001 Specifications Manual 13. Durability 13.1. Electrical Noise No malfunction occurred when sinusoidal electrical noise (10 Hz–100 kHz, < 0.1 Vp-p) was added to the power supply line. Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS: Resolution: 0.25 mm... -
Page 35: Shock
Opticon OPR 2001 Specifications Manual 13.3. Shock Drop Test (without packaging) 13.3.1. No malfunction occurred after the following drop test. Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor three times on each of 5 sides. -
Page 36: Cable Strength
Opticon OPR 2001 Specifications Manual Cable Strength 13.5.1. No malfunction occurred after the following pulling test. Pulling test: Fix the scanner and pull the cable with the force of 2.5 kg (24.5N) for 1 second. Repeat 20 times. Cable Tail Bending Test 13.5.2. -
Page 37: Trigger And Read Options
Opticon OPR 2001 Specifications Manual 15. Trigger and Read Options 15.1. Trigger Modes Disabled: When this option is selected, the reader will stay on all the time. Enabled: After receiving a trigger signal, the barcode reader will turn on and the read cycle starts. -
Page 38: Auto Trigger Options
Opticon OPR 2001 Specifications Manual 15.3. Auto Trigger Options Auto Trigger Sensor 15.3.1. The product has an optional auto trigger setting, which starts barcode reading automatically by using sensor detection. The scanner starts barcode reading after detecting reflection from the surface when the auto trigger is used. -
Page 39: Figure 28: Trigger Options
Opticon OPR 2001 Specifications Manual Figure 28: Trigger options... -
Page 40: Trigger And Read Settings
Opticon OPR 2001 Specifications Manual 16. Trigger and Read Settings Enable/Disable Settings 16.1.1. Use the following settings to enable or disable the auto trigger. (Auto trigger is disabled by default). To enable auto trigger, scan “ZZ”, “+I” and “ZZ” in that order. -
Page 41: Always
Opticon OPR 2001 Specifications Manual Always 16.2.2. Enable auto trigger all the time. Functions Menu labels Menu codes _ZZ_ _+I_ Enable auto trigger Disable auto trigger stand detection _*5_ _ZZ_ Manually 16.2.3. Only trigger manually (default). Functions Menu labels Menu codes... -
Page 42: Regulatory Compliance
Opticon OPR 2001 Specifications Manual 17. Regulatory Compliance 17.1. Laser Safety The scanner emits laser beams. JIS C6802: 2005: Laser class 2 IEC 825-1/EN 60825-1: Laser class 2 FDA CDRH Laser class II. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. -
Page 43: Safety
The scanner may not perform properly in environments when placed near a flickering light, such as a computer monitor, television, etc. Opticon shall not be held responsible for any damages caused by using an AC adapter not provided by Opticon. -
Page 44: Mechanical Drawing
Opticon OPR 2001 Specifications Manual 19. Mechanical Drawing Dimensions: 151.0 mm x 56.0 mm x 30.5 mm (except protruding parts) Figure 29: Mechanical drawing...
