CAUTION: This information is subject to change without prior notice.
Copyright 2011, Opticon Sensors Europe BV, all rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon Sensors Europe.
THE GENERAL USE AND FUNCTIONING OF THE BAR CODE SCANNER IS DESCRIBED IN THIS DOCUMENT. ALSO
GENERAL SETUP INSTRUCTIONS TO GET STARTED ARE DESCRIBED IN THIS DOCUMENT. FOR FURTHER
INSTRUCTIONS CONSULT OPTICON OR YOUR LOCAL DEALER.

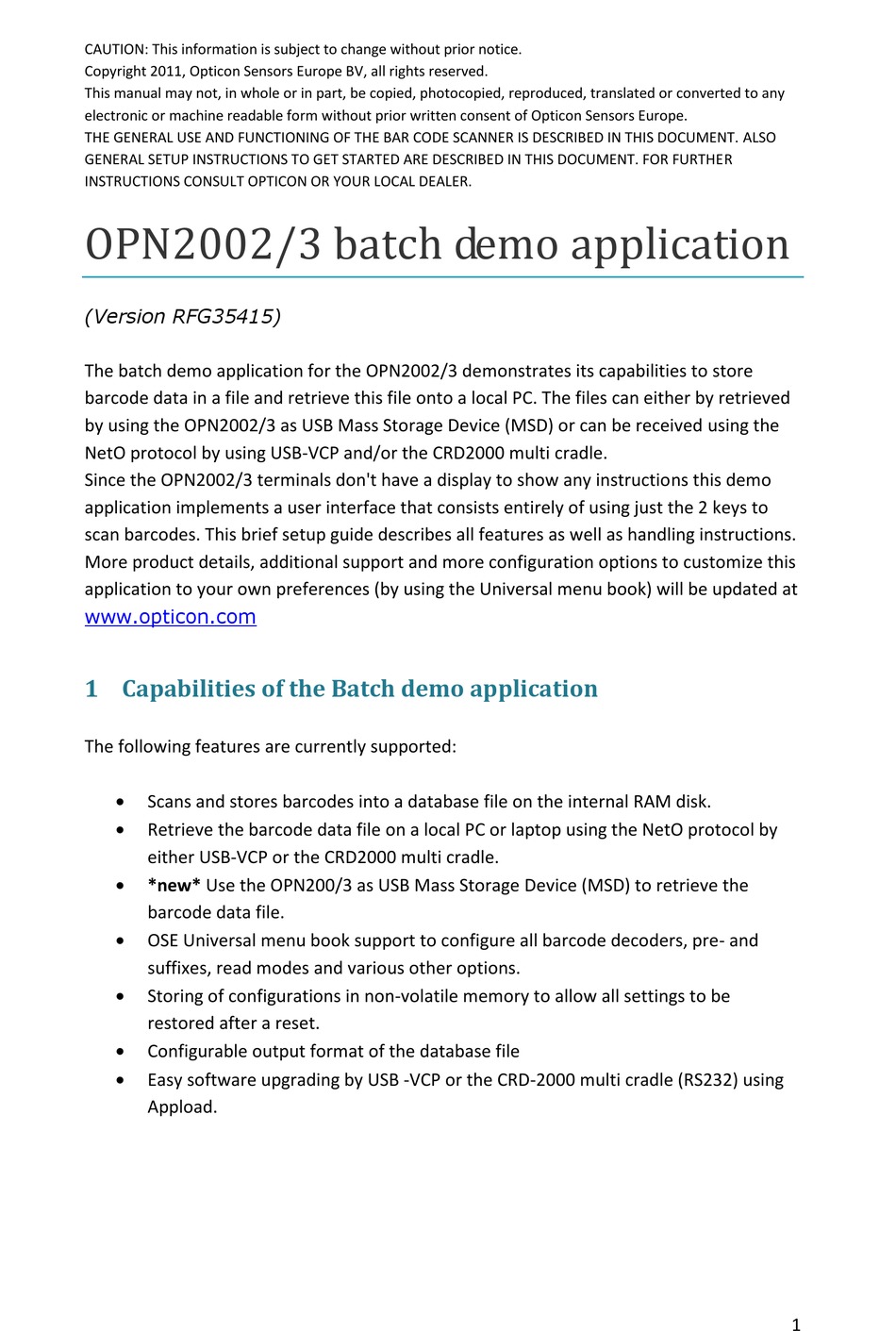

OPN2002/3 batch demo application
(Version RFG35415)
The batch demo application for the OPN2002/3 demonstrates its capabilities to store
barcode data in a file and retrieve this file onto a local PC. The files can either by retrieved
by using the OPN2002/3 as USB Mass Storage Device (MSD) or can be received using the
NetO protocol by using USB-VCP and/or the CRD2000 multi cradle.
Since the OPN2002/3 terminals don't have a display to show any instructions this demo
application implements a user interface that consists entirely of using just the 2 keys to
scan barcodes. This brief setup guide describes all features as well as handling instructions.
More product details, additional support and more configuration options to customize this
application to your own preferences (by using the Universal menu book) will be updated at
www.opticon.com
1 Capabilities of the Batch demo application
The following features are currently supported:
Scans and stores barcodes into a database file on the internal RAM disk.
Retrieve the barcode data file on a local PC or laptop using the NetO protocol by
either USB-VCP or the CRD2000 multi cradle.
*new* Use the OPN200/3 as USB Mass Storage Device (MSD) to retrieve the
barcode data file.
OSE Universal menu book support to configure all barcode decoders, pre- and
suffixes, read modes and various other options.
Storing of configurations in non-volatile memory to allow all settings to be
restored after a reset.
Configurable output format of the database file
Easy software upgrading by USB -VCP or the CRD-2000 multi cradle (RS232) using
Appload.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPN2003 and is the answer not in the manual?

Questions and answers

Related Manuals for Opticon OPN2003

Summary of Contents for Opticon OPN2003

  • Page 1 This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without prior written consent of Opticon Sensors Europe. THE GENERAL USE AND FUNCTIONING OF THE BAR CODE SCANNER IS DESCRIBED IN THIS DOCUMENT. ALSO GENERAL SETUP INSTRUCTIONS TO GET STARTED ARE DESCRIBED IN THIS DOCUMENT.

  • Page 2: System Requirements

    This demo application can use Opticons NetO32 application to be able to transfer files from the OPN2002 or OPN2003 to a remote PC or laptop. This application can be downloaded from our web site. The minimum required NetO32 version is Version 2.07.
  • Page 3 3 Customizing your OPN2002 and OPN2003 In the following section a brief overview is given on how to configure your OPN2002/3 for your desired application. 3.1 Selecting the USB interface (VCP or MSD) This batch demo application supports 3 methods of retrieving your barcode data file from the OPN2002/3: ...
  • Page 4 3.2 OSE Universal Menu Book support * The OPN2002/3 supports the reading of various configuration options that can be found in our Universal menu book**. This makes it possible to customize your application without having to actually change the source code of this demo software. The OPN2002/3 supports (most of the) menu options listed in the following chapters: 1.

  • Page 5: Scanning Bar Codes

    4 Barcode database file All scanned unique barcodes are stored in a database file with fixed length records. Besides the barcode data, the quantity, serial number of the OPN2002/3 and a date/time stamp can be stored. The default format of each record in the database file is: <Barcode (40 chrs)>,<Quantity (6 chrs)>,<serial #>,<hh:mm:ss>,<dd/mm/yyyy>...
  • Page 6 If a barcode is scanned using the delete key that isn't present in the database or that already has a quantity of '0' a low error beep is sound and a red led is shown. Negative quantities are by default not supported, but when using the 'Negative quantities' option (see Appendix A) it is possible to scan negative quantities of barcodes.

  • Page 7: Installing Drivers

    USB-VCP driver for Windows XP (64bit) & Windows Vista/7 (64bit) USB driver for the CRD2002 After installing the USB driver, you can connect your OPN2002 or OPN2003 to USB using the mini-USB cable. Windows will then automatically install a virtual COM port on your PC, which can be selected in various applications, like Appload, Hyperterminal and Neto32.
  • Page 8 Due to the limited amount of (RAM) memory inside the OPN2002/3 the size of the file system is rather small, being about 125kB on the OPN2003 and about 900kB on the OPN2002. This is enough space for storing barcodes, but not for using the OPN2002/3 as a portable hard drive.
  • Page 9 9.2 Using the CRD2000 When using the CRD2000 multicradle certain configurations have to be made to correctly synchronize multiple OPN2002s that all want to transfer a file to the host at the same time. First of all, the RS232 settings have to be correctly configured, so besides selecting the correct COM-port of the CRD2000, you will also have to select the correct baud rate and other RS232 settings.

  • Page 10: Using The Mini-Usb Cable

    The 6-digit serial numbers of all your OPN2002s will have to added at 'Tools > Options > Polling and Timing > Terminals to Poll'. Screenshot of Polling and Timing settings with a list of OPN2002 serial numbers When using the CRD200, don't configure a Poll Speed faster than 0,5s because once an OPN2002 is communicating to the host, the other OPN2002s will be temporarily muted for 250ms by the CRD2000 to avoid data collisions.
  • Page 11 RFG* OPN2003 RFF* * It is often possible to load OPN2002 applications on the OPN2003 and vice versa, because the hardware is mostly the same (besides Bluetooth capabilities and cradle contacts that are only present on the OPN2002). 10.2 Loading software using the mini-USB cable To be able to load software on the OPN200x using the mini USB cable first make sure you’ve selected the USB-VCP interface (see chapter 3.1), because USB-MSD is not yet...
  • Page 12 Bluetooth <Currently not supported> 10.4 Loading software on the OPN2003 To load a new OS or application onto the OPN2003, you'll need a mini-USB. Please follow the instructions below.  Connect the terminal to your PC or laptop using the mini-USB cable ...
  • Page 13 11 Other available OPN2002 applications Besides this Bluetooth demo application there are 3 other OPN2002 applications available on our web site that might fit your specific application better. Software V3510x: OPN2001 simulation demo application This application turns the OPN2002 into an OPN2001 compatible batch scanner. Besides USB, any stored barcode data can also be retrieved from the OPN2002 by using Bluetooth.
  • Page 14  Use the OPN2002 as a Bluetooth HID device (keyboard)  (Limited) Opticon Universal menu book support to configure barcode decoders, pre- and suffixes, read modes, buzzer/LED settings, change Bluetooth configurations and switch between HID or VCP as Bluetooth interface.

  • Page 15: Troubleshooting

    12 Trouble shooting Since the OPN200x doesn't have a display, it also doesn't have a system menu to resort to when you've installed a crashing application that prevents you from loading new software on the OPN200x. For this reason the OPN200x has a few escape mechanisms to allow you to restart, halt your application and/or install new software.

  • Page 16: Version History

    RFG35414 Added USB-MSD and updated manual June 17, 2011 RFG35415 Fixed USB-MSD issue June 29, 2011 www.opticon.com Please check our web site at to see if there are updates available for this application, the Operating System, NetO32 and/or this manual.

  • Page 17: Appendix A: Database Output Formatting

    Appendix A: Database output formatting The default output format of each record in the database file is: <Barcode (40 chrs)>,<Quantity (6 chrs)>,<serial #>,<hh:mm:ss>,<dd/mm/yyyy> However, this application allows you to customize this format to make it suitable for your own application. The following aspects of the output format are configurable.
  • Page 18 Each record can contain up to 5 fields (barcode, date, time, quantity and serial number). The output sequence can be customized by reading up to 5 labels on the following page. Field output sequence By not specifying a quantity field each barcode will be stored separately in the database.
