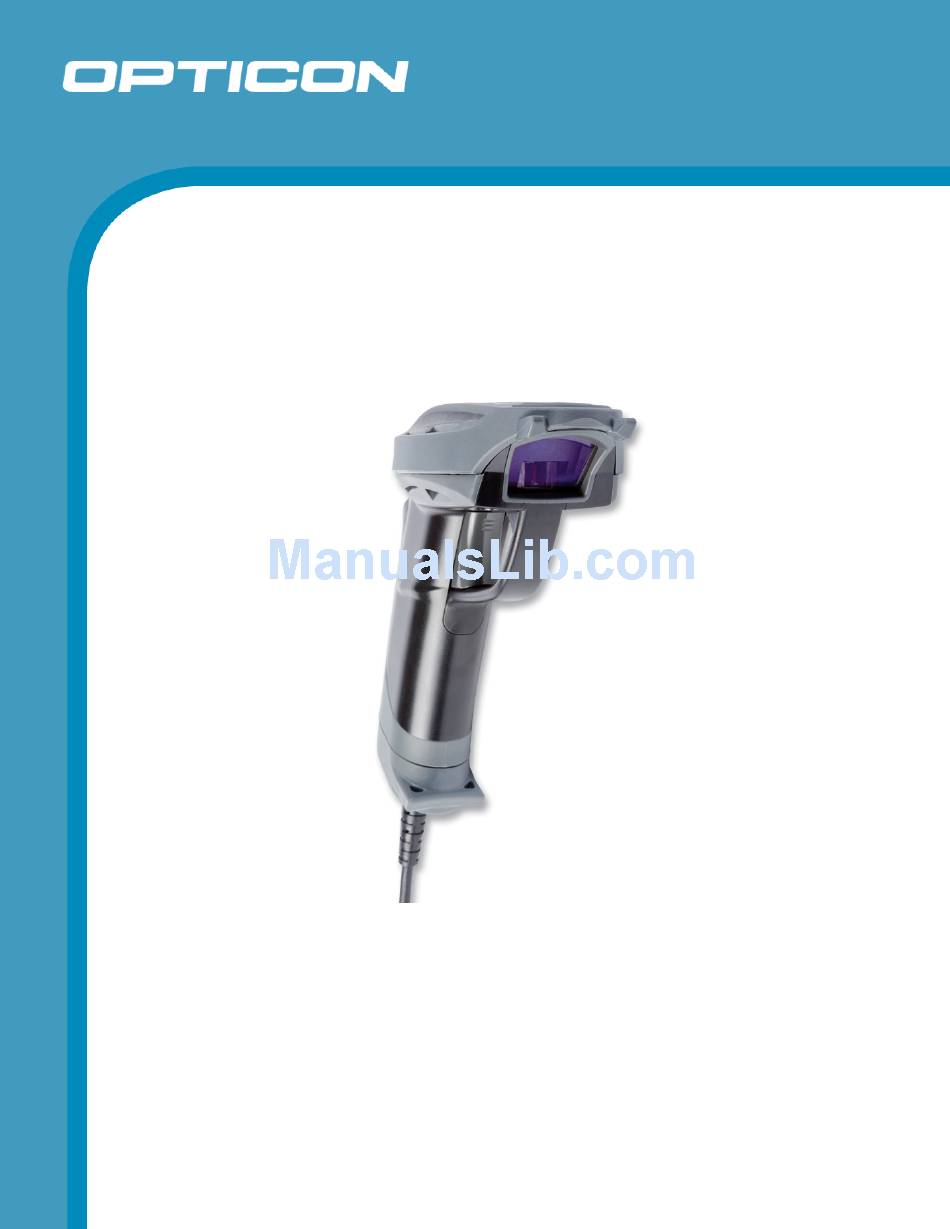

- Page 1 Rugged Handheld Laser Scanner OPR 3001 The OPR 3001 is a rugged handheld laser barcode scanner with protection against dust and splashing water to ensure reliable Specifications Manual operation in harsh environments...
-
Page 2: Document History
Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
Opticon OPR 3001 Specifications Manual Contents 1. Abstract ............................7 2. Overview............................7 3. Physical Features ........................8 3.1. Dimensions ......................... 8 3.2. Weight ..........................8 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity ................. 8 4.2. Storage Temperature and Humidity ..................8 4.3. - Page 4 Opticon OPR 3001 Specifications Manual 8.1.6. Handshaking ..........................19 8.2. USB-HID and USB-VCP Interface Specifications ............. 24 8.2.1. Settings ............................24 8.2.2. Interface Circuit........................24 8.3. DOS/V Wedge Interface Specification ................24 9. Cable and Connector ....................... 25 9.1. RS-232C Cable ......................... 25 9.1.1.
- Page 5 Opticon OPR 3001 Specifications Manual 15.1. Trigger Modes ........................38 15.2. Auto Trigger Options ......................38 15.2.1. Auto Trigger Sensor.........................38 16. Trigger and Read Settings ....................... 39 16.1. Auto Trigger Settings ......................39 16.1.1. Enable/Disable Settings......................39 17. Regulatory Compliance ......................40 17.1.
- Page 6 Opticon OPR 3001 Specifications Manual Figure 21: Wedge cable......................26 Figure 22: Serial number diagram ....................32 Figure 23: Individual packaging ....................33 Figure 24: Collective packing...................... 34 Figure 25: Product drop test ....................... 36 Figure 26: Cable bend strength ....................37 Figure 27: Auto trigger detection area ..................
-
Page 7: Abstract
This manual provides specifications for the OPR 3001 handheld laser barcode scanner. 2. Overview The OPR 3001 is a rugged handheld laser barcode scanner with protection against dust and splashing water to ensure reliable operation in harsh environments. The OPR 3001 is enclosed in a rugged housing sealed to IP-54 standards that withstands repeated drops of up to two meters onto concrete. -
Page 8: Physical Features
Opticon OPR 3001 Specifications Manual 3. Physical Features 3.1. Dimensions W 68 X D 150 X H 155 mm (except protruding portion) 3.2. Weight 230ｇ max (excluding cable). 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -10 to +60° C Humidity: 5 to 90% RH 4.2. -
Page 9: Electrical Specifications
Opticon OPR 3001 Specifications Manual Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS: Resolution: 0.25 mm Symbology: 9-digit Code-39 Quiet Zone: 10 mm N/W Ratio: 1:2.5 Distance: 100 mm from the edge of scanner Angle: α = 0° β = 15° γ = 0°... -
Page 10: Optical Specifications
Opticon OPR 3001 Specifications Manual 6. Optical Specifications 6.1. Laser Scan Specifications Parameter Specification Unit Light-emitting element Red laser diode — Emission wavelength 650 ±10 (25° C) Light output 1.0 or less Scanning method Bi-directional scanning — Scanning speed 100 ±20... -
Page 11: Curvature Of Scan
Opticon OPR 3001 Specifications Manual Curvature of Scan 6.1.2. Maximum gap between the straight line connecting both ends of the laser scan line and the actual laser scan line: Less than 1.27° curvature from the scan origin. Maximum of 3.3 mm curvature when measured at a point 150 mm away from the scan origin. -
Page 12: Print Contrast Signal (Pcs)
Opticon OPR 3001 Specifications Manual 7.1. Print Contrast Signal (PCS) 0.45 or higher (over 70% of reflectivity of space and quiet zone). Reflectance of white bar－Reflectance of black bar PCS= Reflectance of white bar Scanning performance may decline if dirt or scratches mar the optical window. Keep the optical window clean. - Page 13 Opticon OPR 3001 Specifications Manual Symbology Resolution Decode depth (mm) Code 39 1.0 mm 30–590 Code 39 0.5 mm 10–360 Code 39 0.25 mm 10–200 Code 39 0.15 mm 10–90 Code 39 0.127 mm 20–60 Conditions: Barcode Sample: OPTOELECTRONICS Test Sample N/W Ratio: 1:2.5...
-
Page 14: Pitch, Skew, And Tilt
Opticon OPR 3001 Specifications Manual 7.4. Pitch, Skew, and Tilt Pitch Angle 7.4.1. α = ±35° Figure 4: Pitch angle... -
Page 15: Skew Angle And Dead Zone
Opticon OPR 3001 Specifications Manual Skew Angle and Dead Zone 7.4.2. Skew angle: β = ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection) Figure 5: Skew angle and dead zone... -
Page 16: Tilt Angle
Opticon OPR 3001 Specifications Manual Tilt Angle 7.4.3. γ = ±20° Figure 6: Tilt angle Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 60 mm from the edge of the scanner Label: Pitch Angle, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet Zone = 10 mm N/W Ratio = 1:2.5... -
Page 17: Curvature
Opticon OPR 3001 Specifications Manual 7.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 Figure 7: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 18: Signal Level
Opticon OPR 3001 Specifications Manual Signal Level 8.1.2. Signal Name RS-232C Level (V) Mark/OFF Space/ON -5 to -15 +5 to +15 -3 to -15 +3 to +15 -5 to -15 +5 to +15 -3 to -15 +3 to +15 Interface Circuit 8.1.3. -
Page 19: Character Format
Opticon OPR 3001 Specifications Manual Character Format 8.1.4. Figure 9:Character format (same for both sending and receiving) Communication Format 8.1.5. Figure 10: Communication format Handshaking 8.1.6. Select handshaking options using the menu or command listed below. Handshaking Menu/Command No handshake... -
Page 20: Figure 12: Busy/Ready Communication
Opticon OPR 3001 Specifications Manual b) BUSY/READY The scanner and the host computer notify each other of their state and whether they can receive data with BUSY/READY through an RTS line. They can communicate state to each other through a CTS line when connected as in the following figure. -
Page 21: Figure 14: Signal Timing
Opticon OPR 3001 Specifications Manual CTS, TXD signal timing When the CTS line (RTS signal of the host) is turned OFF while sending a TxD signal, the scanner transmits one character and waits. When the CTS signal is turned ON while transmitting a character, the character will be transmitted. -
Page 22: Figure 16: Ack/Nak
Opticon OPR 3001 Specifications Manual ACK/NAK timeout can be set as follows using the menu or commands. ACK/NAK timeout Menu / Command Indefinitely (default) 100 ms 500 ms 1000 ms Figure 16: ACK/NAK... -
Page 23: Figure 17: Ack/Nak-No Response
Opticon OPR 3001 Specifications Manual e) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. -
Page 24: Usb-Hid And Usb-Vcp Interface Specifications
Opticon OPR 3001 Specifications Manual 8.2. USB-HID and USB-VCP Interface Specifications Settings 8.2.1. Reading the menu barcodes in section 10.1 can set the USB interface default. The interface is full-speed USB (12 Mbps). Interface Circuit 8.2.2. Figure 18: USB interface circuit Do not operate the keyboard while the scanner is transmitting the data to the host;... -
Page 25: Cable And Connector
Opticon OPR 3001 Specifications Manual 9. Cable and Connector 9.1. RS-232C Cable (Standard specification) Figure 19: RS-232C cable Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1500 ±50 , -0 mm Cores: 8 insulated wires, 1 conductive wire Weight: Approximately 80 g Pin Assignment 9.1.1. -
Page 26: Usb Cable
Opticon OPR 3001 Specifications Manual 9.2. USB Cable (Standard specification) Figure 20: USB cable Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1500 ±50, -0 mm Cores: 4 insulated wires, 1 conductive wire Weight: Approximately 60 g Pin Assignment 9.2.1. Signal... -
Page 27: Pin Assignment
Opticon OPR 3001 Specifications Manual Type: Y cable Diameter: Φ4.8 ±0.5 mm Length: 1500 ±50 , -0 mm Cores: 8 insulated wires, 1 conductive wire Weight: Approximately 80 g Pin Assignment 9.3.1. DOS/V Host Side DOS/V Keyboard Side Pin No... -
Page 28: Default Settings
Opticon OPR 3001 Specifications Manual 10. Default Settings 10.1. Set Default Interface Scan the following menu barcodes to return to the default settings. RS-232C Functions Menu labels Menu codes _ZZ_ _U2_ RS-232C Single tone _W1_ buzzer: 3 kHz* _W7_ Buzzer duration:... -
Page 29: Default Settings 1: Readable Codes
Opticon OPR 3001 Specifications Manual Wedge Default (with external keyboard) Functions Menu labels Menu codes _ZZ_ AT Wedge _UB_ default _KM_ Keyboard layout: with keyboard _ZZ_ Wedge Default (without external keyboard) Functions Menu labels Menu codes _ZZ_ _UB_ AT Wedge... - Page 30 Opticon OPR 3001 Specifications Manual Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length Code 93 — Code 128 — GS1-128 — (EAN/UCC-128) GS1 DataBar — (RSS) (all, incl. CC-A/B); Limited/ Expanded IATA — Industrial2of5 — Interleaved2of5 — Korean Postal —...
-
Page 31: Default Settings 2: Read Options, Trigger, Buzzer
Opticon OPR 3001 Specifications Manual 10.3. Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes Read mode Multiple read Multiple read reset time 500 ms Add-on wait mode 500 ms... -
Page 32: Serial Number
Opticon OPR 3001 Specifications Manual 11. Serial Number The serial number as shown below is affixed to the scanner. Figure 22: Serial number diagram... -
Page 33: Packaging Specifications
Opticon OPR 3001 Specifications Manual 12. Packaging Specifications 12.1. Individual Packaging Specification Put the scanner in a protective foam bag and place it in a single packing box. The scanner shown is an RS-232C unit. Descriptions on an individual packaging box label differ, depending on the interface type. -
Page 34: Collective Packaging Specification
Opticon OPR 3001 Specifications Manual 12.2. Collective Packaging Specification The scanner shown is an RS-232C unit. Descriptions on a collective packaging box label differ, depending on the interface type. The “RO” mark may be indicated on the upper side of the individual packaging box label. -
Page 35: Durability
Opticon OPR 3001 Specifications Manual 13. Durability 13.1. Electrical Noise No malfunction occurred when sinusoidal electrical noise (10 Hz–100 kHz, < 0.1 Vp-p) was added to the power supply line. Conditions Barcode Sample: OPTOELECTRONICS Test Sample Resolution 0.25 mm Symbology... -
Page 36: Shock
Opticon OPR 3001 Specifications Manual 13.3. Shock Drop Test (without packaging) 13.3.1. No malfunction occurred after the following drop test. As shown below, drop the scanner from 200 centimeters above the concrete floor (three times from each of 6 angles). -
Page 37: Dust And Drip Proof
Opticon OPR 3001 Specifications Manual 13.4. Dust and Drip Proof IEC IP54 Dust Prevention Level Details Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact. -
Page 38: Reliability
15. Trigger and Read Options The OPR 3001 has an optional auto trigger setting, which starts barcode reading automatically by using sensor detection. When auto trigger is enabled, a laser beam is emitted and points to the auto trigger area. The scanner starts barcode reading after detecting reflection from the surface when the auto trigger is used. -
Page 39: Trigger And Read Settings
Opticon OPR 3001 Specifications Manual Figure 27: Auto trigger detection area 16. Trigger and Read Settings 16.1. Auto Trigger Settings Enable/Disable Settings 16.1.1. Use the following settings to enable or disable the auto trigger. (Auto trigger is disabled by default). -
Page 40: Regulatory Compliance
Opticon OPR 3001 Specifications Manual 17. Regulatory Compliance 17.1. Laser Safety The scanner emits laser beams. JIS C6802: 2005: Laser class 2 IEC 825-1/EN 60825-1: Laser class 2 FDA CDRH Laser class II. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. -
Page 41: Safety
Opticon OPR 3001 Specifications Manual 18. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 18.1. Shock Do not throw or drop the scanner. Do not place heavy objects on the cables. 18.2. Temperature Conditions Do not use the scanner at temperatures outside the specified range. -
Page 42: Mechanical Drawing
Opticon OPR 3001 Specifications Manual 19. Mechanical Drawing Dimensions: 3 W 68 X D 150 X H 155 (mm) (except protruding portion) Figure 28: Mechanical drawing...
