- Page 1 Fixed Position Laser Barcode Scanner NLB / RLB-1000 This manual provides specifications for the Specifications Manual NLB/RLB-1000 fixed position laser scanner.
- Page 2 PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
- Page 3 NLB / RLB-1000 Specifications Manual Revision History Specification No. : SS07076 Product name : NLB/RLB-1000 Edition Date Page Section Description of Changes 2008/01/31 Initial release Added the supported symbologies: GS1 DataBar (RSS) ( incl. CC-A/B); Omnidirectiona l/ 2009/02/03 Truncated / Stacked / Limited/Expanded, MicroPDF417, PDF417 (less than 6 security levels) 7.1.
-
Page 4: Table Of Contents
NLB / RLB-1000 Specifications Manual Contents 1. Abstract ............................7 2. Overview ............................. 7 3. Physical Features ........................8 3.1. Dimensions .......................... 8 3.2. Weight ..........................8 3.3. Installation ........................... 8 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity .................. 8 4.2. - Page 5 NLB / RLB-1000 Specifications Manual 11.2. Buzzer ..........................28 12. Trigger and Read Options ...................... 29 12.1. Trigger Switch ........................29 12.2. Trigger Mode ........................29 12.3. Read Mode ........................29 12.4. Scanning Bar Codes on Moving Items ................30 13.
- Page 6 NLB / RLB-1000 Specifications Manual 19.3.1. Shock ............................39 19.3.2. Temperature Conditions ......................39 19.3.3. Foreign Materials ........................39 19.3.4. Other ............................39 Appendix 1: Mechanical Drawing ....................40...
-
Page 7: Abstract

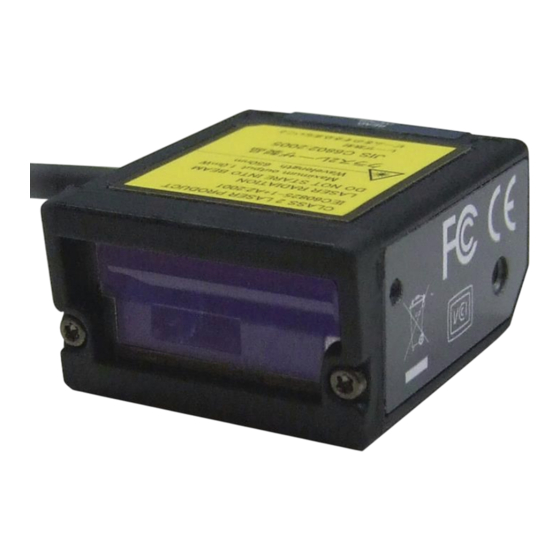

2. Overview ･ The NLB-1000 and the RLB-1000 series scanners utilize a polygon mirror to realize scan rate of 1000 scans/per second. Those scanners output decoded data via RS232C interface. ･ The NLB-1000 is a single scan model whereas the RLB-1000 is a raster scan model. -
Page 8: Physical Features
NLB / RLB-1000 Specifications Manual 3. Physical Features 3.1. Dimensions 34.5mm (D) x 29mm (W) x 17mm (H) Please refer to “Mechanical Drawings” for details. 3.2. Weight 30 g (Maximum) excluding the cable. 3.3. Installation Two mounting holes on bottom and side of the product are available. Please refer to “Appendix 1: Mechanical Drawings”... -
Page 9: Electrical Specifications
70° (typical) Effective scan angle 40° (typical) Vertical scan width of Less than 8 NLB-1000 (single scan) (500 mm from the front face of the scanner) Vertical scan width of 8 to 20 RLB-1000 (raster scan) (500 mm from the front face of the scanner) -
Page 10: Technical Specifications
NLB / RLB-1000 Specifications Manual 7. Technical Specifications Conditions Ambient Temperature : 25 degrees C or lower Ambient Humidity : 85%RH or lower Ambient Light : 500 to 1000lx Power Supply Voltage : 6.0 V Background : Black Scanning Performance Test : Scanner is approved when scanning is successful in 70% of the tests. -
Page 11: Depth Of Fields
NLB / RLB-1000 Specifications Manual Figure 1: Scan Area 7.3.2. Depth of Fields The depth of field is measured from the front face of the scanner. The scanning area is rectilinear near the exit window and expands in an arc centered on a virtual reference point in the distance. -
Page 12: Pitch, Skew And Tilt
Pitch Angle β ≤ ±60° (excluding the dead zone) Skew Angle β ≤ -7° ~ + 9° (NLB-1000) Dead Zone β ≤ -8° ~ + 10° (RLB-1000) There are some areas in which scanning may fail due to specular reflection. -
Page 13: Curvature
NLB / RLB-1000 Specifications Manual 7.5. Curvature : R ≥ 15 mm. 8-digit JAN : R ≥ 20 mm. 13-digit JAN <Conditions> Bar code sample : Optoelectronics Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet zone = 10 mm Distance : 110 mm from the front face of the scanner : Skew angle: β... -
Page 14: Interface
NLB / RLB-1000 Specifications Manual 8. Interface 8.1. RS-232C Interface The NLB / RLB-1000 support 3 different specifications for RS-232C interface: 9-pin D-SUB, 25-pin D-SUB, and without a connector 8.1.1. Setting Read menu bar codes [ZZ] + [U2] + [ZZ] to set to RS-232C interface default. 8.1.2. - Page 15 NLB / RLB-1000 Specifications Manual (2) 25-pin D-SUB Connector and Interface Circuit Signal Name Pin No. IN/OUT Notes TRIGGER H-level: Open, L-level (GND): Trigger NPN Open Collector (DC24V, 30mA） NPN Open Collector (DC24V, 30mA） Connector: D-SUB, 25-pin, female (INCH SCREW) L-level signals of time, it will remain to be OK when H-level signals are sent and NG when are sent.
- Page 16 NLB / RLB-1000 Specifications Manual (3) No Connector and Interface Circuit Wire Color Pin No. IN/OUT Notes Green White Gray Blue 6V Input (Tube) Shield Shield (shrinkable tube) Black Brown Trigger H-level: Open, L-level (GND): Trigger Yellow NPN Open Collector (DC24V, 30mA) Orange NPN Open Collector (DC24V, 30mA) Note: You can change the sequencer (OK or NG) settings using the menu bar code.
-
Page 17: Character Format (For Send / Receive Data)
NLB / RLB-1000 Specifications Manual 8.1.4. Character Format (for send / receive data) Figure 8: Character Format 8.1.5. Communication Format Figure 9: Communication Format 8.1.6. Handshaking Select handshaking options using the menu or command listed below. Handshaking Menu / Command No handshake BUSY/READY MODEM... - Page 18 NLB / RLB-1000 Specifications Manual b) BUSY / READY The scanner and the host system notify each other if they are able to receive data (BUSY/READY) via their RTS line. When they are connected as shown in the figure below, the CTS line can be used to check if the other side is busy (off) or ready to receive data (on).
- Page 19 NLB / RLB-1000 Specifications Manual c) CTS, TXD signals timing When the CTS line (RTS signal on the host side) is turned off during a TXD signal transmission, the scanner transmits one charactersand waits. When the CTS signal is turned on during a character transmission, the character will be transmitted.
- Page 20 NLB / RLB-1000 Specifications Manual e) ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: ACK response The scanner completes transmission successfully with the good- read buzzer and returns to the initial state. NAK response The scanner sends the data again and waits for the response from the host.
- Page 21 NLB / RLB-1000 Specifications Manual Figure 15-2: ACK/NAK Flow Chart Figure 15: ACK/NAK...
- Page 22 NLB / RLB-1000 Specifications Manual f) ACK/NAK NO RESPONSE When no response from the host is received within a specified time, the scanner assumes that the host properly received the data. The other actions are the same as ACK/NAK. Figure 16: ACK/NAK-No Response...
-
Page 23: Cable And Connector
NLB / RLB-1000 Specifications Manual 9. Cable and Connector 9.1. RS-232C Interface (9-pin D-SUB Female) <Basic Specification> Type : Straight : Φ3.8 mm (main cable), Φ3 mm (AC adapter cable) Diameter Length : 1500 ±50 mm (main cable, excluding connector) 100 ±10 mm (AC adapter cable, excluding jack) Figure 17: RS-232C Cable (D-SUB 9-pin) 9.2. -
Page 24: Rs-232C Interface Cable (No Connector)
NLB / RLB-1000 Specifications Manual 9.3. RS-232C Interface Cable (No Connector) <Basic Specification> Type : Straight : Φ3.8 mm (main cable) Diameter Length : 1500 ±50 mm (main cable, excluding connector) Figure 19: RS-232C Cable (No connector) -
Page 25: Default Settings
NLB / RLB-1000 Specifications Manual 10. Default Settings Menu bar codes are prepared for the default setting to make the setting easier. RS-232C Default Function Menu label Menu code _ZZ_ _U2_ RS232 Default _ZZ_... - Page 26 NLB / RLB-1000 Specifications Manual Default Settings 1: Readable Codes Transmit Transmit Calculate Code type Reading Transmit others Prefix Suffix code length ○ ○ ○ × UPC-A ○ ○ × × UPC-A Add-on ○ ○ ○ × UPC-E ○ ○ ×...
- Page 27 NLB / RLB-1000 Specifications Manual Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes Read mode Single read Multiple read reset time 500 msec Add-on wait mode 500 msec Read 1 times, redundancy = 0 ([X0] setting) Redundancy Character 1>...
-
Page 28: Other Functions
11. Other Functions 11.1. LEDs There are red LED and green LED on the NLB-1000 and the RLB-1000. 1) A green LED lights up for a specific period of time after successful scanning. You can configure the settings when the green LED is blinking. -
Page 29: Trigger And Read Options
12. Trigger and Read Options 12.1. Trigger Switch The trigger switch of the NLB-1000 and the RLB-1000 is on the back side of the scanner. It is written “SCAN” on the switch as shown in the figure below. You can start the scanning operation by pressing this switch as far as the read options of the scanner is not configured otherwise. -
Page 30: Scanning Bar Codes On Moving Items
Specifications Manual 12.4. Scanning Bar Codes on Moving Items NLB-1000 and RLB-1000 are capable of scanning low printing quality bar codes since the decoding process has a priority over the scanning process. While they can read the low quality bar code, it may take time for decoding. When a label of a certain level of quality attached to a moving item is read, the decoding time should be limited giving priority to scanning so that reading may be more successful. -
Page 31: Durability
NLB / RLB-1000 Specifications Manual 13. Durability 13.1. Ambient Light Immunity Reading performance is guaranteed when the illuminance on the bar code surface is between zero and the following values: Incandescent : 4,000lx Fluorescent : 4,000lx Sunlight : 80,000lx <Conditions> Bar code sample : Optoelectronics test sample PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet... -
Page 32: Vibration Strength
NLB / RLB-1000 Specifications Manual 13.5. Vibration Strength 13.5.1. Vibration Test (in individual packaging)) There shall be no sign of malfunction of the scanner after the following vibration test. Vibration Test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6m/s2 (2.0G) for 30 minutes (60 minutes for a cycle) in the non- operating state. -
Page 33: Reliability
( 2 ) this device must accept any interference received, including interference that may cause undesired operation. 16. RoHS The NLB-1000 and the RLB-1000 are RoHS compliant products. RoHS: The restriction of the use of certain hazardous substances in electrical and electronic equipment, 2011/65/EC. -
Page 34: Product Labels
NLB / RLB-1000 Specifications Manual 17. Product Labels 17.1. Serial Label The serial number is stated on a serial label shown below. Letters are printed on a matte- black background and serial numbers in black on a white background. Figure 23: Serial Label 17.2. -
Page 35: Certification Logo Label
NLB / RLB-1000 Specifications Manual 17.3. Certification Logo Label The certification logo label is attached on the opposite side of the cable. Each mark is printed in white on a matte-black background. Figure 28: Certification Logo Label 17.4. Back Side Label Each letter and mark is printed white on a dark blue background. -
Page 36: Packaging Specifications
NLB / RLB-1000 Specifications Manual 18. Packaging Specifications 18.1. Individual Packaging Specifications Put the scanner in a protective foamed bag and put it in the individual packaging box. Dimensions (Assembled State): 245 mm (W) x 110 mm (D) x 40 mm (H) Figure 26: Individual Packaging Specifications... -
Page 37: Collective Packaging Specifications
NLB / RLB-1000 Specifications Manual 18.2. Collective Packaging Specifications Put 50 individually packaged scanners in a collective packaging box. Dimensions (Assembled State): 600 mm (W) x 520 mm (D) x 250 mm (H) Figure 27: Collective Packaging Specifications Note: ‘Ro mark’ on the boxes for the products indicates that the product is RoHS compliant, which is declared by Optoelectronics Co., Ltd. -
Page 38: Precautions
NLB / RLB-1000 Specifications Manual 19. Precautions 19.1. Precaution against Laser Light *Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Safety Precautions This device complies with IEC 60825-1:2007, IEC 60825-1:2014 CDRH 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. -
Page 39: Use Of Ac Adapter
NLB / RLB-1000 Specifications Manual 19.2. Use of AC Adapter OPTOELECTRONICS shall not be held responsible for any damages caused by using an AC adapter which was not provided by OPTOELECTRONICS. 19.3. Handling Handle this product carefully. Do not subject it to any of the following: 19.3.1. - Page 40 NLB / RLB-1000 Specifications Manual Appendix 1: Mechanical Drawing...
