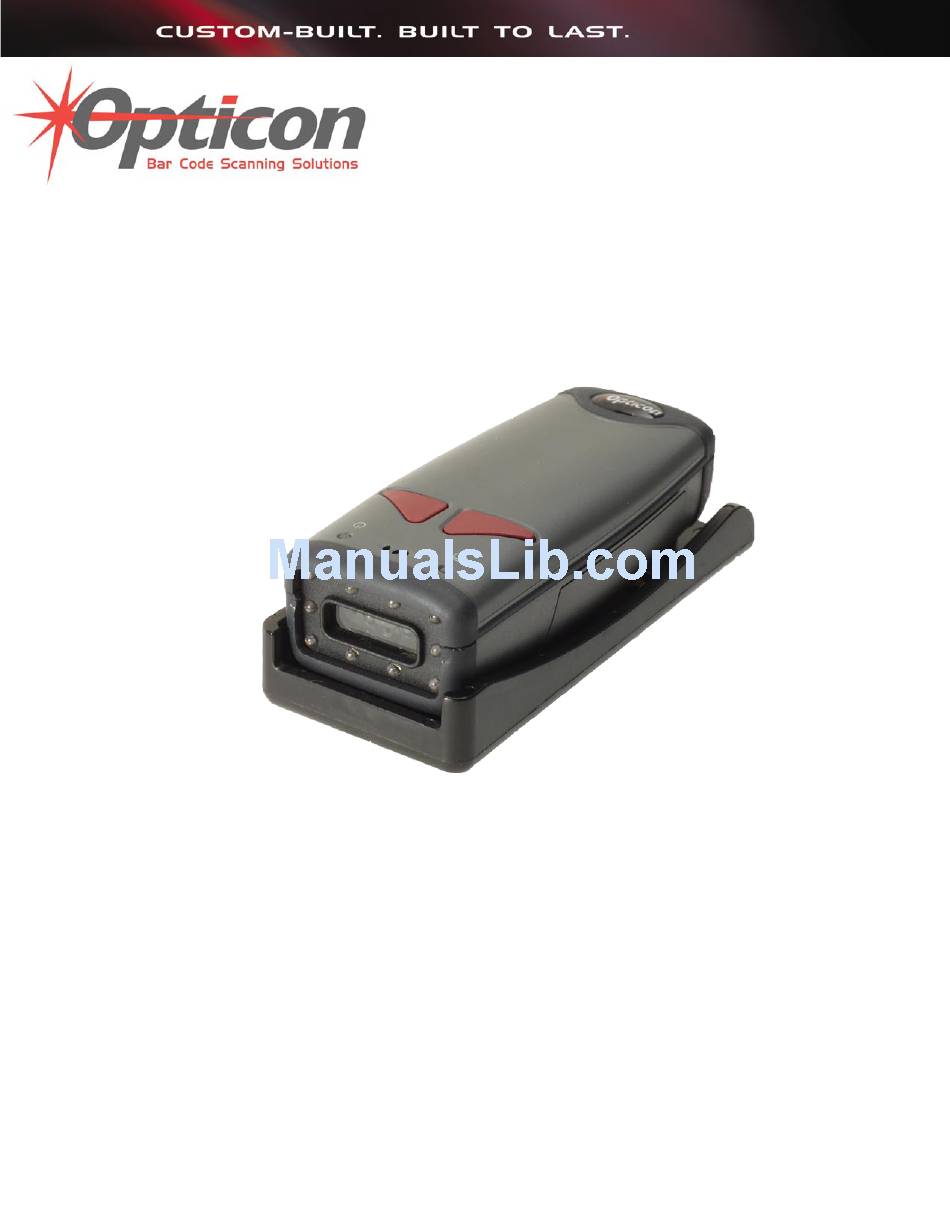

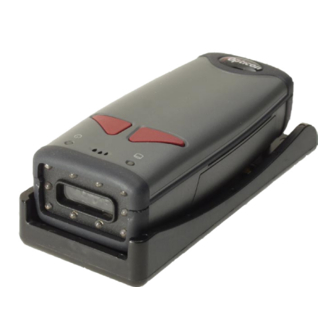

- Page 1 User’s Manual LH2 Fixed Position 2D Imager 25-ULH2R101-01 Preliminary This version of the manual supports firmware 2232 and greater. Release date: Mar 05...
-
Page 2: Statement Of Agency Compliance
4-4, Conducted RF Immunity EN 61000-4-6, EN 55022, Class B Radiated Emissions, and Class B Conducted Emissions. The LH2 can be set to use targeting lasers. If the targeting lasers are activated, do not stare into the beams. The LH2’s targeting lasers have been rated as Class IIa Lasers by IEC 60825-1. - Page 3 NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Opticon, Inc. Opticon, Inc. does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user.
-
Page 4: Table Of Contents
Positioning the Imager for Optimal Performance Achieving Optimum Performance 1) Distance to the Bar Code Focal Distance Depth-of-Field LH2 Decode Zone 2) Avoiding Specular Reflection 3) Quality Bar Code Labels Barcode Readability Index Code Readability Index Rule: 4) Imager Field of View & Resolution... - Page 5 Right & Left Trigger Optimization Matrix Continuous Trigger Optimization Matrix Right Trigger Optimization Matrix Application Notes Tips for Achieving High Throughput Tips for Insuring Highest Data Integrity Chapter 4 Configuring the Imager Programming Menus & Commands Default Settings RS-232 Interface Setting Defaults Symbology Defaults: Control Setting Defaults: Chapter 5...
- Page 6 Clear All CodeXML Rules Reader ID & Firmware Version Example: test2.crb Barcode Readability Index Software Trigger Read Near and Far Field Read Near Field only Read Far Field only Symbology Options Aztec Symbology Codabar Symbology Codablock F Symbology Code 128 Symbology Code 93 Symbology Code 39 Symbology Composite Symbologies...
- Page 7 Stop Bits Parity Hardware Settings Beep Volume Laser Targeting Laser Brightness Left Key Programming Right Key Programming Continuous Scan Continuous Scan Continuous Scan - Trigger Delays Duplicate Scan Delay Advance Settings Decode Time & LED’s for Non Standard Inks Targeting Zone Tolerance Windowing VGA &...
-
Page 8: Organization Of This Manual
This manual provides the necessary instructions for installing and using an Opticon LH2 Fixed Position Imager. The manual is organized as follows: Chapter 1 Introduction and Getting Started Describes the general operation of a LH2 Fixed Position Imager. Also provides a Quick Start-Up Procedure that allows you to begin using the imager immediately. -
Page 9: Introduction And Getting Started
The laser beam facilitates targeting. The adjustable targeting zone allows precise selection of specific bar codes in the field of view. The LH2 can be customized with advanced logic through the internal embedded application engine. The embedded engine may be utilized to intelligently process or manipulate scanned data before it is sent to an application. -
Page 10: Quick Start-Up Procedure
This section is for those who wish to start using the imager before reading the complete manual. In only a few steps the imager will be operable. Follow the appropriate steps depending upon whether your LH2 is configured to operate with a RS232 interface. - Page 11 ( <┘ represents a carriage return) ;>PA7<┘ I<┘ Note: Be sure to use capital letters, e.g. “I”, not “i”. 4) The LH2 will send back the firmware version of the Imager. Example: Xap/i2232223006000010002363A06 5) Send the following command to turn OFF the serial command mode.
- Page 12 This page is left blank intentionally...
-
Page 13: Technical Specification
Chapter 2 Technical Specification OPTICAL Field of View Optical Resolution Bar Code Density Linear Min. PCS Value Pitch Skew Rotation ELECTRICAL Voltage Current Operating Standby Maximum Interface 21º horizontal x 15º vertical (approx) 1024 x 1280 0.11 mm (4.2 mil) minimum 0.15 mm (5.8 mil) minimum 0.35 ±60º... -
Page 14: Environmental
ENVIRONMENTAL Temperature Operating Storage Humidity Shock Regulatory Targeting Beam PHYSICAL Case Material Dimension (L x W x H) Weight Cable Length RS232 SYMBOLOGIES 2D BAR CODES LINEAR BAR CODES PINOUTS 9 Pin Female mini-DIN Connector Function Trigger Signal Ground +5 VDC 0º... -
Page 15: Ordering Information
Developer’s Test and Evaluation Kit is available that contain all the items needed to install and evaluate the LH2 imager. The LH2-R1-SK1 kit includes: • LH2 Imager • Cable (Connects LH2 to the Evaluation Board) • Engineering Test & Evaluation Board • 5V Power Supply • Extension Cable (Connects host PC to Evaluation Board) - Page 16 This page is left blank intentionally...
-
Page 17: Positioning The Imager For Optimal Performance
Chapter Chapter 3 Positioning the Imager for Optimal Performance Achieving Optimum Performance Four items greatly impact performance: 1) Distance (from the scan window) to the bar code 2) Specular Reflection; and 3) Quality of Bar Code Labels 4) Imager field of view and resolution 1) Distance to the Bar Code The operation of the imager is similar to a camera. - Page 18 The following chart in figure 3.1 shows the “typical” depth-of-field (closest to farthest reading distances ) for the LH2 imagers. The actual performance may differ slightly from unit to unit. Also, it is important to note that this data was measured under ideal conditions using high quality bar code labels.
-
Page 19: Lh2 Decode Zone
LH2 Decode Zone Figure 3.3... -
Page 20: Avoiding Specular Reflection
Barcode Readability Index The Readability Index provides a measurement of a specific symbol’s ease or difficulty to be decoded by the LH2. The Readability Index is specific to the LH2, and should not be confused with a verification quality measurement. -
Page 21: Code Readability Index Rule
Code Readability Index Rule: The Reader will store the rule and reset, but will not output the Readability Index until the Readability Index Output Enable code is read. To remove this rule, scan the Clear All Prefix & Suffix code in Appendix A. Readability Index Output Enable Once read, each time a data symbol is read, the index will be output, followed by a comma, (,) followed by the decoded data. -
Page 22: Imager Field Of View & Resolution
4) Imager Field of View & Resolution The LH2’s dual field optical system may be modified based on your scanning environment. The LH2’s mega pixel imager may be set to the following two modes: SXGA Mode: In standard SXGA mode (default), the 1.3 Million Pixel imager is divided into near field and far field decode zones. -
Page 23: Imaging Area
400 MHz processor. If you are scanning large barcodes, small barcodes or even multiple sizes of different barcodes, by defining the working range and the type of symbols the reader must process, the LH2 will offer lightning fast decodes. - Page 24 * Factory Default Setting * All triggers programmed to this setting at shipment Symbol Size - Here are a few approximate examples of large, medium and small symbols. All of the codes below have been modified for representation purposes and do not scan Large Symbols PDF 417 - 20+ mil Medium Symbols...
- Page 25 In order to achieve high density, the individual elements of a symbol must shrink. The highest density symbols can only be resolved in the LH2 near-field image, where the resolution of the imager is 1024 x 640 DPI. Symbol density is usually expressed in “Mils” - ie, thousandths of inches.
- Page 26 There are four different Optimization Matrix available. 1) Right & Left Key Optimization 2) Left Key Optimization 3) Right Key Optimization 4) Continuous Trigger Optimization You can use any of the options to fine tune the scanning performance of the LH2 to fit your application.
-
Page 27: Left Trigger Optimization Matrix
Right & Left Trigger Optimization Matrix Large * Factory Default Small to Large Symbols Near and Far Range * All triggers programmed to this setting at shipment. After setting the configuration, you must scan the save settings code or your reader will lose its settings if the reader is powered off. Left Trigger Optimization Matrix Large Small to Large Symbols... -
Page 28: Continuous Trigger Optimization Matrix
Right Trigger Optimization Matrix Large Small to Large Symbols Near and Far Range Continuous Trigger Optimization Matrix Large Small to Large Symbols Near and Far Range Working Range Small to Medium Symbols (Close Range Only) Working Range Small to Medium Symbols (Close Range Only) Small Medium to Large Symbols... -
Page 29: Application Notes
• Program the imager to higher Decode Time. For example, program the imager to decode a bar code exactly the same way with Extra Long Decode Time before transmitting the data. The default settings for the LH2 are designed for optimal, general purpose performance with good quality symbols on typical surfaces. For... - Page 30 This page is left blank intentionally...
-
Page 31: Configuring The Imager
Chapter 4 Configuring the Imager Since the operation of a LH2 imager is microprocessor controlled, it is possible to modify or program its operation to match your specific application. Changes in parameter settings can be changed or programmed in two ways: (1) The first method employs specially designed programming bar codes which instruct the imager to modify specific parameters. -
Page 32: Symbology Defaults
Symbology Defaults: All 1D Codes Aztec Codabar Code 128 Code 93 Code 39 Composite Data Matrix DM Inverse DM Rect. Interleaved 2 0f 5 MaxiCode MSIP PDF 417 Micro PDF Postal Codes Control Setting Defaults: Left Button Right Button Beeper Volume Laser Targeting Time Stamp Continuous Scan... -
Page 33: Application Engineering Support
Application Engineering Support Technical Assistance and Support Opticon is eager to help you integrate the LH2 imager into your application. Our technical support staff is available to answer any questions or work with you to adapt the imager to your specific situation. -
Page 34: Modified And/Or Customized Imagers
Imagers can be modified in terms of connectors type, pin-outs, cable length, default settings, custom software and many other areas. Opticon will modify imagers in our factory and ship you imagers that match your specific requirements. By incorporating your modifications directly into production imagers, you receive imagers tailored for your need. -
Page 35: Imager Servicing And Maintenance
Chapter 6 Imager Servicing and Maintenance The LH2 imager contains no user adjustable or serviceable parts in the interior of the imager. All product service must be performed by the Opticon Service Department in Orangeburg, NY. Opening the imager will void the warranty and could expose the operator to laser light. - Page 36 This page is left blank intentionally...
-
Page 37: How To Use The Appendix
Appendix A Programming Menus & Commands How to use the Appendix? The appendix has all the programming commands laid out in a standard format in the whole section. All the programming commands have these attributes - Command Name, Usage, Description, Default, Programming Code, Note and Options. For certain commands you might not have all the attributes and are intentionally not mentioned. -
Page 38: Programming Bar Codes
You can scan multiple programming barcodes to change the settings. NOTE: Always scan the “Save Settings“ bar code to save all the changes you made. If you do not save the settings then the next time you power ON the LH2, it will go to the previously saved settings. -
Page 39: Crb Files
Up Procedure to set up the HyperTerminal program. After setting the connection use the Transfer pull-down menu, select “Send Text File...“ (figure) and then select the file you want to send to the LH2. The CRB file allows for combining multiple functions into a single file. -
Page 40: Example: Test1.Crb
For example you can create a test.crb file that contains commands to enable Aztec symbology and make the reader beep three times. Note you can also comment your CRB file with a semicolon (;) as shown below. NOTE: The only command which is not ignored in the CRB file when a semicolon (;) is used is ;>PA7. -
Page 41: General Options
General Options Reset to Factory Defaults Command Name: Usage: Use this option to reset the imager to RS232 factory defaults. Description: This command will set the imager to factory defaults. This command is extremely helpful if you have set the imager to different settings and want to erase those settings and reset the imager back to the factory defaults. -
Page 42: Save Settings
Command Name: Save Settings Usage: This command saves the current settings on the imager. Description: Always use this command to save any the changes you make to the imager. If you change the settings on the reader and do not use this command then the imager will not save them if you turn the power OFF. -
Page 43: Clear All Codexml Rules
Command Name: Clear All CodeXML Rules Usage: Clears any rules and also the prefix and suffix settings. Description: This command will clear any special command rules and prefix or suffix settings from the imager. Default: Programming Code: Notes: See the Prefix/Suffix section to clear only the prefix or suffix. Options: Serial Command: 1<┘... -
Page 44: Reader Id & Firmware Version
Command Name: Usage: To find out the Reader ID and Firmware version of the imager. Description: You will get a text string with your firmware version and LH2 ID number (see below): Xap/iVVVVWWWWXXXXSSSSSSSSSSPXX sd+sq Xap/i - Opticon Internal ID VVVV is the application firmware version number (4 digits) -
Page 45: Example: Test2.Crb
P%420 P%081 ;check the firmware id ;save the settings ;disable the programming mode On sending the test2.crb file, the LH2 will be reset to factory defaults and on your screen you will receive the Firmware ID string from the imager. -
Page 46: Barcode Readability Index
The Readability Index provides a measurement of a specific symbol’s ease or difficulty to be decoded by the LH2. Description: The Readability Index is specific to the LH2, and should not be confused with a verification quality measurement. The Readability Index is a blend of information obtained from the... - Page 47 Options: Programming Code: Readability Index Output Enable Once read, each time a data symbol is read, the index will be output, followed by a comma, (,) followed by the decoded data. Example: Code Qual = 98, 071589812308 The Reader will continue to output the Readability Index upon every read until disabled, either by reset or by reading the Readability Index Output Disable.
-
Page 48: Software Trigger
Command Name: Usage: Description: Default: Programming Code: (There are no programming barcodes) Notes: Options: Read Near and Far Field Read Near Field only Read Far Field only Software Trigger Simulates a trigger. This command will post a single simulated software trigger. -
Page 49: Symbology Options
Symbology Options Command Name: Aztec Symbology Usage: Sets the Aztec bar code symbology options. Description: This command allows you to turn ON or OFF the Aztec 2D bar code symbology. Default: Aztec is OFF Programming Code: Aztec OFF (Default) Options: Programming Code: Aztec ON Serial Command:... -
Page 50: Codabar Symbology
Command Name: Codabar Symbology Usage: Sets the Codabar bar code symbology options. Description: This command allows you to turn ON or OFF the Codabar bar code symbology. Default: Codabar is ON Programming Code: Codabar ON (Default) Options: Programming Code: Codabar OFF Serial Command: P%6f1<┘... -
Page 51: Codablock F Symbology
Codablock F Symbology Command Name: Usage: Sets the Codablock F bar code symbology options. Description: This command allows you to turn ON or OFF the Codablock F bar code symbology. Default: Codablock F is OFF Programming Code: Codablock ON Options: Programming Code: Codablock OFF (Default) Note:... -
Page 52: Code 128 Symbology
Code 128 Symbology Command Name: Usage: Sets the Code 128 bar code symbology options. Description: This command allows you to turn ON or OFF the Code 128 bar code symbology. Default: Code 128 is ON Programming Code: Code 128 ON (Default) Options: Programming Code: Code 128 OFF... -
Page 53: Code 93 Symbology
Code 93 Symbology Command Name: Usage: Sets the Code 93 bar code symbology options. Description: This command allows you to turn ON or OFF the Code 93 bar code symbology. Default: Code 93 is ON Programming Code: Code 93 ON (Default) Options: Programming Code: Code 93 OFF... -
Page 54: Code 39 Symbology
Code 39 Symbology Command Name: Usage: Sets the Code 39 bar code symbology options. Description: This command allows you to turn ON or OFF the Code 39 bar code symbology. Default: Code 39 is ON Disable Checksum is ON Code 39 Extended Full ASCII is OFF Programming Code: Code 39 ON (Default) Options:... - Page 55 Programming Code: Enable checksum and strip from result Code 39 Extended Full ASCII ON Code 39 Extended Full ASCII OFF (Default) Serial Command: P%702<┘ P%491<┘ P%490<┘...
-
Page 56: Composite Symbologies
Composite Symbologies Command Name: Usage: Sets the Composite bar code symbology options. Description: This command allows you to turn ON or OFF the Composite bar code symbology. Default: Composite is OFF Programming Code: Composite ON Options: Programming Code: Composite OFF (Default) Serial Command: P%344<┘... -
Page 57: Data Matrix Symbology
Command Name: Data Matrix Symbology Usage: Sets the Data Matrix 2D bar code symbology options. Description: This command allows you to turn ON or OFF the Data Matrix 2D bar code symbology. Default: Data Matrix is ON Data Matrix Inverse is ON Programming Code: Data Matrix ON (Default) Options:... -
Page 58: Interleaved 2 Of 5 Symbology
Command Name: Interleaved 2 of 5 Symbology Usage: Sets the Interleaved 2 of 5 bar code symbology options. Description: This command allows you to turn ON or OFF the Interleaved 2 of 5 bar code symbology. Default: I 2 of 5 is ON Programming Code: I 2 of 5 ON (Default) Options:... - Page 59 Programming Code: I 2 of 5 Four digits ON I 2 of 5 Four digits OFF Serial Command: O%c92 Q%c92...
-
Page 60: Maxicode Symbology
Maxicode OFF (Default) Note: For certain Maxicode (commonly used by UPS™) barcodes printed on thermal labels may require to manipulate the LED’s on the LH2. For more information on different settings, please refer to section “Advanced Settings” on Page 86. -
Page 61: Micro Pdf 417 Symbology
Command Name: Micro PDF 417 Symbology Usage: Sets the Micro PDF 417 2D bar code symbology options. Description: This command allows you to turn ON or OFF the Micro PDF 417 2D bar code symbology. Default: Micro PDF 417 is OFF Programming Code: Micro PDF 417 ON Options:... -
Page 62: Msi Plessy Symbology
MSI Plessy Symbology Command Name: Usage: Sets the MSI Plessy bar code symbology options. Description: This command allows you to turn ON or OFF the MSI Plessy bar code symbology. Default: MSI Plessy is OFF Programming Code: MSI Plessy ON Options: Programming Code: MSI Plessy OFF (Default) -
Page 63: Pdf 417 Symbology
Command Name: PDF 417 Symbology Usage: Sets the PDF 417 2D bar code symbology options. Description: This command allows you to turn ON or OFF the PDF 417 2D bar code symbology. Default: PDF 417 is ON Programming Code: PDF 417 ON (Default) Options: Programming Code: PDF 417 OFF... -
Page 64: Postal Symbologies
Command Name: Postal Symbologies Usage: Sets different Postal bar code symbology options. Description: This command allows you to turn ON or OFF different Postal bar code symbologies. Default: All Postal Symbologies are OFF. Programming Code: Disable All Postal Codes (Default) Options: Programming Code: Australian Post ON... - Page 65 Programming Code: Postnet ON Postnet and Planet ON Royal Mail ON Serial Command: P%4b2000<┘ P%4b2080<┘ P%4b200000<┘...
-
Page 66: Qr Code Symbology
QR Code Symbology Command Name: Usage: Sets the QR Code 2D bar code symbology options. Description: This command allows you to turn ON or OFF the QR Code 2D bar code symbology. Default: QR Code is OFF. Checksum is Disabled. Programming Code: QR Code ON Options:... - Page 67 Programming Code: QR Code Inverse ON Both Inverse and Standard ON Serial Command: P%2b2<┘ P%2b3<┘...
-
Page 68: Rss Symbology
Command Name: RSS Symbology Usage: Sets different RSS bar code symbology options. Description: This command allows you to turn ON or OFF different RSS bar code symbologies. Default: All RSS Symbologies are OFF. Programming Code: All RSS Codes ON Options: Programming Code: All RSS Codes OFF (Default) RSS Limited ON... - Page 69 RSS 14 Stacked ON RSS Expanded ON P%4c#16<┘ P%4c1<┘...
-
Page 70: Upc / Ean / Jan Symbologies
Command Name: UPC / EAN / JAN Symbologies Usage: Sets the UPC/EAN/JAN bar code symbology options. Description: This command allows you to turn ON or OFF the UPC/EAN/JAN bar code symbology. Default: UPC is ON UPC Short Margin is Disabled Programming Code: UPC ON (Default) UPC Short Margin Disabled... - Page 71 UPC Extension ON UPC Extension OFF P%4d1<┘ P%4d0<┘...
-
Page 72: Communication Parameters
Communication Parameters Command Name: Baud Rate Usage: Sets the RS-232 baud rate. Description: This command allows you to set different baud rates for RS-232 communication. Default: 57600 Programming Code: 57600 (Default) Options: Programming Code: 1200 2400 Serial Command: P%1cE100<┘ Serial Command: P%1c4B0<┘... - Page 73 4800 9600 19200 38400 115200 P%1c12C0<┘ P%1c2580<┘ P%1c4B00<┘ P%1c9600<┘ P%1c1C200<┘...
-
Page 74: Data Bits
Data Bits Command Name: Usage: Sets the RS-232 Data Bits options. Description: This command allows you to set the appropriate data bit Default: 8 Data Bits is ON Programming Code: 8 Data Bits (Default) Options: Programming Code: 7 Data Bits Serial Command: P%1e8<┘... -
Page 75: Stop Bits
Stop Bits Command Name: Usage: Sets the RS-232 Stop Bits options. Description: This command allows you to set the appropriate stop bit Default: 1 Stop Bit is ON Programming Code: 1 Stop Bit (Default) Options: Programming Code: 2 Stop Bit Serial Command: P%1d1<┘... -
Page 76: Parity
Command Name: Parity Usage: Sets the RS-232 Parity options. Description: This command allows you to set appropriate parity. Default: None is ON Programming Code: None (Default) Options: Programming Code: Even Serial Command: P%220<┘ Serial Command: P%222<┘ P%221<┘... -
Page 77: Hardware Settings
Hardware Settings Command Name: Beep Volume Usage: Sets the buzzer volume. Description: This command allows you to set the beep volume to high or low. You can also turn off the beep for a quite operation. Default: Beep is set to High volume. Programming Code: Beep High (Default) Options:... -
Page 78: Laser Targeting
Laser Targeting Command Name: Usage: Sets the targeting laser beam. Description: This command allows you to turn ON or OFF the laser targeting beam. The laser targeting beam is extremely help full to set the imager during the initial set up. You can easily read a bar code by pointing the laser dot in the center of the bar code. -
Page 79: Laser Brightness
Laser Brightness Command Name: Usage: Sets the targeting laser brightness. Description: This command allows you to change the brightness of the targeting laser. Default: Targeting laser is set to High. Programming Code: High (Default) Options: Programming Code: Medium Serial Command: P%9C100<┘... -
Page 80: Left Key Programming
Command Name: Left Key Programming Usage: Programs the left key to different options. Description: This command allows you to program the left key to perform different functions. You can program the key so that it can make use of a different imager ( Near / Far ) to read a barcode. -
Page 81: Right Key Programming
Command Name: Right Key Programming Usage: Programs the right key to different options. Description: This command allows you to program the right key to perform different functions. You can program the key so that it can make use of a different imager ( Near / Far ) to read a barcode. This function is useful while doing the initial setup. -
Page 82: Continuous Scan
Continuous Scan Command Name: Continuous Scan Usage: Sets the imager in continuous scan mode. Description: This command allows you to set the imager into a continuous scan mode. You can program the imager so that it can make use of different imagers ( Near / Far ) to read a barcode in a continuous mode. - Page 83 Continuous Scan OFF (Default) P%c40<┘...
-
Page 84: Continuous Scan - Trigger Delays
Continuous Scan - Trigger Delays Command Name: Usage: Sets the delay time for continuous scan. Description: This command allows you to program the delay time between scans while in continuous scan mode. Default: Delay is set to 0 seconds Programming Code: 3 Seconds Options: Programming Code:... -
Page 85: Duplicate Scan Delay
Duplicate Scan Delay Command Name: Usage: Sets the duplicate scan delay time in the continuous scan mode. Description: This command allows you to program the delay time between scans while in continuous scan mode so that the imager will not read the same bar code again. -
Page 86: Advance Settings
Sets the Decode Time and LED to read a bar code. Description: The default settings for the LH2 are designed for optimal, general purpose performance with good quality symbols on typical surfaces. For poor quality barcodes or barcodes on non-standard surfaces (shiny, low-contrast), the unit may require: •... - Page 87 Short Decode Time Long Decode Time LED’s for Non Standard Inks ON LED’s for Non Standard Inks OFF (Default) P%aa80<┘ P%AA180<┘ P%b61<┘ P%b60<┘...
-
Page 88: Targeting Zone Tolerance
This command allows you to program the decode accuracy of the LH2. The 50 setting is the most accurate while the 1600 barcode is the most tolerant. If you set the unit to a 50 setting, you have to aim the targeting dot directly on the desired barcode for it to be read. - Page 89 P%9d64<┘ P%9d7d<┘ P%9d96<┘ P%9dc8<┘ P%9d190<┘...
-
Page 90: Windowing
Sets the imaging window size. Description: You may optimize the LH2 decode zone if the application only requires one barcode format. If the size and density of the barcodes to be scanned are consistent, please select the setting below that best describes your environment. - Page 91 Medium 2D Bar Codes Large 2D Bar Codes P%53#512<┘ P%54#512<┘ P%C7#512<┘ P%C8#512<┘ P%53#640<┘ P%54#640<┘ P%C7#640<┘ P%C8#640<┘...
-
Page 92: Vga & Sxga Mode
Sets the imager optical resolution. Description: User’s may optimize the LH2’s mega pixel (SXGA) imager (1280 x 1024) to a VGA (640 x 480). This feature is used to decrease the pixel sampling area, which will greatly increase processing speed. -
Page 93: Prefix & Suffix Settings
Prefix & Suffix Settings Prefix Settings Command Name: Usage: Sets the prefix for a bar code. Description: Scan the following barcodes to set appropriate prefix. Make sure to save settings on your reader before scanning the prefix barcodes. If you scan more than one prefix you will receive each scanned prefix in your scanned data (i.e. - Page 94 Prefix - Carriage Return & Line Feed Note: For custom prefix commands or to create serial commands for the above settings download the Prefix-Suffix Builder program from Opticon, Inc website at http://www.opticonusa.com.
-
Page 95: Suffix Settings
Suffix Settings Command Name: Usage: Sets the suffix for a bar code. Description: Scan the following barcodes to set appropriate suffix. Make sure to save settings on your reader before scanning the suffix barcodes. If you scan more than one suffix you will receive each scanned suffix in your scanned data (i.e. - Page 96 Suffix - Carriage Return Suffix - Line Feed Suffix - Carriage Return & Line Feed Note: For custom suffix commands or to create serial commands for the above settings download the Prefix-Suffix Builder program from Opticon, Inc website at http://www.opticonusa.com.
-
Page 97: Optimization Matrix
Optimization Matrix Command Name: Usage: Sets the imager to read different sizes of barcodes. Description: By setting a few parameters of the imager you can take advantage of the dual path imager to read barcodes of different sizes. For your convenience there are some preset standard settings created to read different variety of barcodes. - Page 98 * Factory Default Setting * All triggers programmed to this setting at shipment Large SXGA Mode SXGA Mode Near Field Decoding: On Near Field Decoding: On Far Field Decoding: On Far Field Decoding: On NF Resolution: 1024 x 640 NF Resolution: 1024 x 640 FF Resolution: 1024 x 640 FF Resolution: 1024 x 640 Decode Try Time: Long...
-
Page 99: Set 1 - Serial Commands For A Single Trigger
SET 1 - Barcodes for a Single Trigger Large * Factory Default Small to Large Symbols Near and Far Range SET 1 - Serial Commands for a Single Trigger Large P%3C11 P%3C0D P%3a11 P%3a0D P%3911 P%390D P%3C12 P%3C0E P%3a12 P%3a0E P%3912 P%390E P%3C0F... -
Page 100: Set 2 - Barcodes For Continuous Trigger
SET 2 - Barcodes for Continuous Trigger Large Small to Large Symbols Near and Far Range SET 2 - Serial Commands for Continuous Trigger Large P%C40D P%C40E P%C40F Small to Large Symbols Near and Far Range Working Range Small to Medium Symbols (Close Range Only) Working Range P%C411... -
Page 101: Appendix B Mechanical Layout
Appendix Appendix B Mechanical Layout REAR VIEW FRONT VIEW SIDE VIEW... -
Page 102: Mechanical Layout
Model LH2RRIS-056 uses type A mounting holes. Model LH2RRIS-256 uses type B mounting holes. Diameter of A & B = 5.64 mm (0.222 in) Only type A or B mounting holes are available on the bracket when shipped from Opticon.
