Batch Application Manual
© Copyright Opticon. All rights reserved. This information is subject to change without prior notice. The Trademarks used are the property of their respective owners.

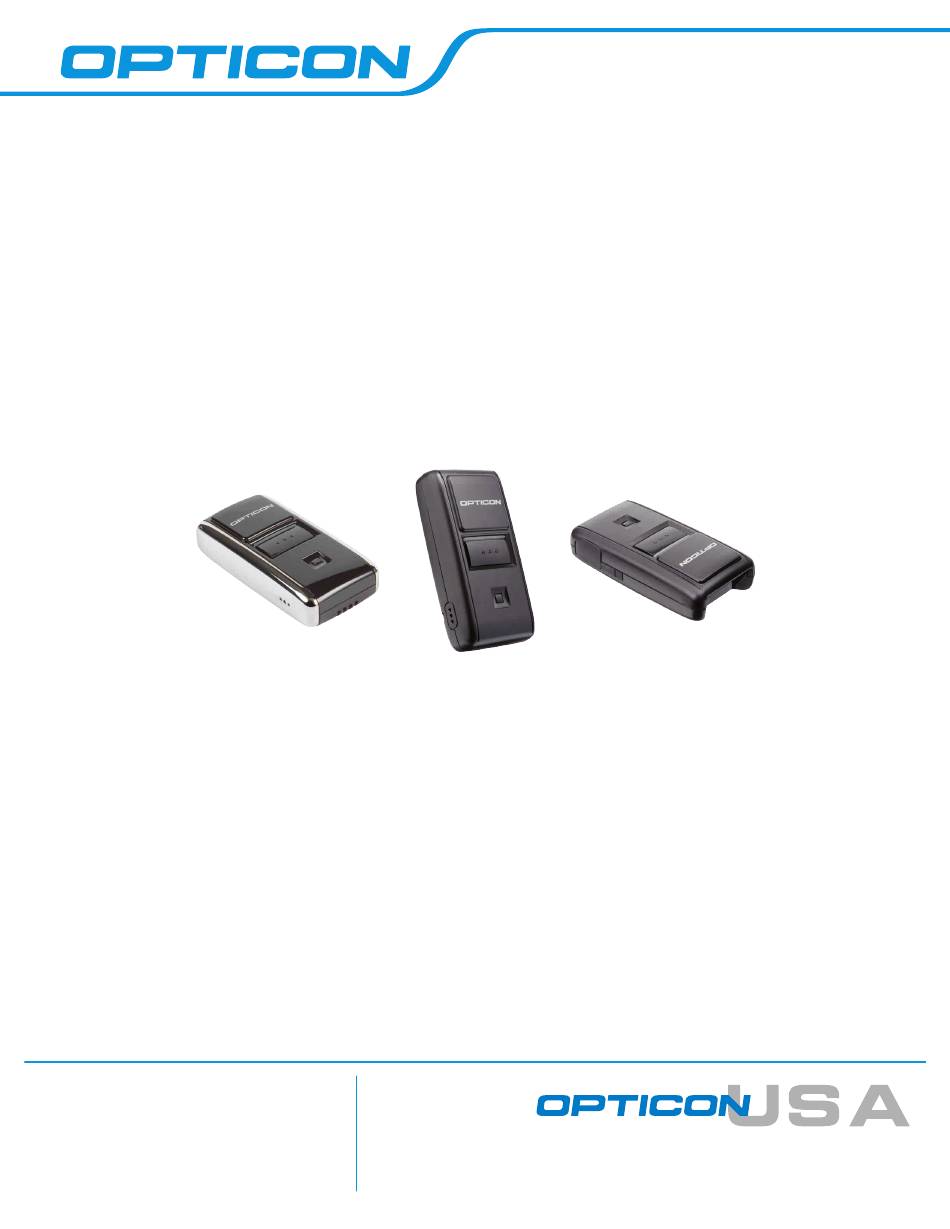

OPN2002/3/4 Application Manual
Version (OPN2002/3):
Version (OPN2004):
Date:
Edition:
Opticon OPN2002/3/4
OPN2002
Opticon, Inc.
2220 Lind Avenue SW Suite 100
Renton, WA 98057
RFG35416
Toll Free: (800) 636.0090
RFIS0940
Local:
March 14, 2013
Fax:
USA Standard
Email:
Email:
OPN2002/3/4 Application Manual
OPN2003
(425) 651.2120
www.OpticonUSA.com
(425) 454.0865
Sales@OpticonUSA.com
Support@OpticonUSA.com
RFG35416, RFIS0940
OPN2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPN2002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opticon OPN2002

Summary of Contents for Opticon OPN2002

  • Page 1 OPN2003 OPN2004 Batch Application Manual © Copyright Opticon. All rights reserved. This information is subject to change without prior notice. The Trademarks used are the property of their respective owners. Opticon, Inc. 2220 Lind Avenue SW Suite 100 OPN2002/3/4 Application Manual...

  • Page 2: Table Of Contents

    OPN2002/3/4 Application Manual RFG35416, RFIS0940 Contents Introduction Other Available OPN2002 Applications Software V3510x, V3727x: OPN2001 Simulation Application Batch Application Capabilities Software V3531x: OPN2002 Default Bluetooth Application System Requirements Software V3553x: Advanced Bluetooth Application Minimum Required OS Version Troubleshooting NetO32 Restart Mechanisms...

  • Page 3: Introduction

    Introduction The batch demo application demonstrates the capabilities of the OPN2002/3/4 to store barcode data in a file and retrieve this file from a local PC. The files can either by retrieved by using the OPN2002/3/4 as an USB Mass Storage Device (MSD) or can be received using the NetO protocol by using USB-VCP and/or the CRD2000 multi cradle (for OPN2002 only).

  • Page 4: Customizing The Opn

    Using the USB-VCP and CRD2000 Interface. Independent of whether you configured your OPN2002 as Mass Storage Device (MSD) or as USB-VCP, it’s always possible to transmit your barcodes using the CRD2000 multicradle in combination with the NetO32-file transfer PC application.

  • Page 5: Barcode Database File

    OPN2002/3/4 Application Manual RFG35416, RFIS0940 Barcode Database File All scanned unique barcodes are stored in a database file with fixed length records. Besides the barcode data, the quantity, serial number of the OPN and a date/ time stamp can be stored.

  • Page 6: Installing Drivers

    Due to the limited amount of memory (RAM) inside the OPN, the size of the file system is rather small, about 32kB on the OPN2004, 125kB on the OPN2003, and about 900kB on the OPN2002. This is ample space for storing barcodes, but not for using the OPN as a portable hard drive.

  • Page 7: Using The Usb-Vcp And Crd2000 Interface

    PC or laptop using NetO32. The data is transmitted by either a mini-USB cable (USB-VCP) or by the CRD2000 multi cradle (OPN2002 only). To be able to receive the files on the host, you will need NetO32 to be installed. The latest version of NetO32 can be downloaded from our website (see NetO32).

  • Page 8: Using The Mini-Usb Cable

    RFI* * It is often possible to load OPN2002 applications on the OPN2003 and vice versa, because the hardware is mostly the same (with the exception of the Bluetooth capabilities and cradle contacts which are only present on the OPN2002).

  • Page 9: Loading Software On The Opn2002

    • Unlike the OPN2001, the OPN2002/3 will lose its time and date within four or five days after the OPN2002/3 becomes non-operational due to a drained battery, which is sooner than the OPN2001. A drained battery will cause the time to be reset to 1-1-1970 00:00. If the OPN2002/3 is not regularly used, it might be necessary, before retrieving any barcode data, to compare the current time to the time which is read from the OPN2002/3.

  • Page 10: Software V3531X: Opn2002 Default Bluetooth Application

    • Connecting to a remote device and transmitting its data using a Bluetooth virtual COM port (VCP) or as a Bluetooth Human Interface Device (HID) • Making the OPN2002 connectable (as slave) and discoverable to allow a remote device to connect with the OPN2002 and transmit its data using a Bluetooth virtual COM port (VCP) or as a Bluetooth Human Interface Device (HID) •...

  • Page 11: Version History

    OPN2002/3/4 Application Manual RFG35416, RFIS0940 Version History RFG35410 First release December 7, 2009 RFG35411 Added configurable database formatting December 14, 2009 RFG35412 Fixed very slow storing of barcodes February 3, 2010 RFG35413 Preliminary addition of USB-MSD June 10, 2011 RFG35414...
  • Page 12 OPN2002/3/4 Application Manual RFG35416, RFIS0940 Field output sequence Field 1 Field 4 Barcode* Barcode Quantity Quantity Serial # Serial # Time Time* Date Date <None> Field 2 Field 5 Barcode Barcode Quantity* Quantity Serial # Serial # Time Time Date Date* <None>...
  • Page 13 OPN2002/3/4 Application Manual RFG35416, RFIS0940 Quantity field size (1-9) Date format DD-MM-YYYY MM-DD-YYYY DD-MM-YY MM-DD-YY YYYY-MM-DD YY-MM-DD DD-MM MM-DD DD/MM/YYYY* MM/DD/YYYY DD/MM/YY Delete key MM/DD/YY YYYY/MM/DD Enabled* YY/MM/DD Disabled DD/MM MM/DD Negative quantities Allowed Not Allowed* Barcode field size (0-99)
