DTT USER MANUAL

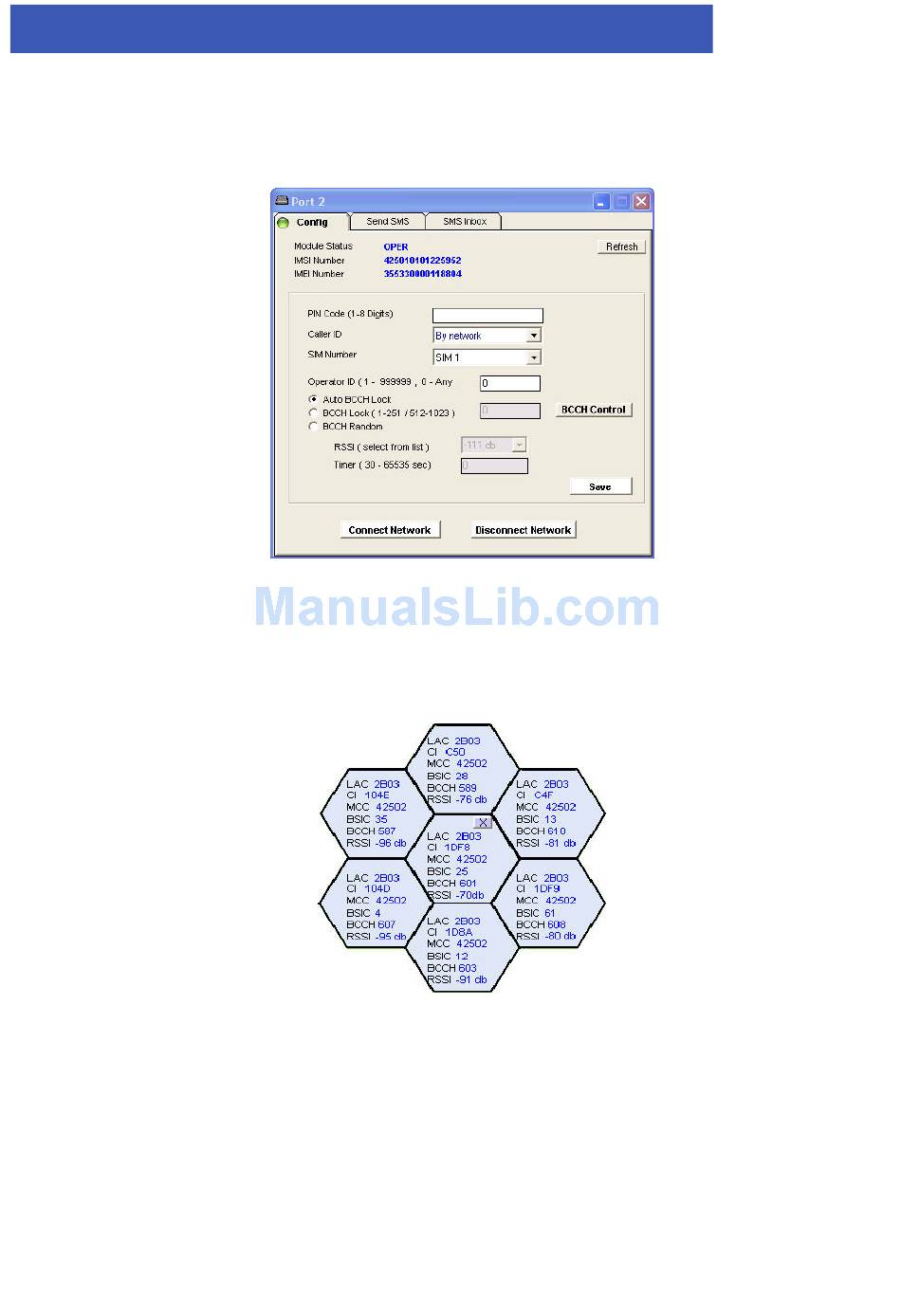

Monitor the Status of the port
Monitor the IMSI number of the SIM that is registered in the port
Monitor the IMEI number of the port
Press the BCCH Control button to monitor the BCCH cells.
1. The middle cell is the cell that the SIM is connected to.
2. Around it are all the surrounding BCCH cells the Gateway is detecting.
3. For each cell there is the following information:
•
•
•
•
•
•
4. You can choose a BCCH channel by clicking on the cell. The module will automatically
register in the new BCCH.
VoIP 2 All™ Series: 4 Channel Gateway User Manual
LAC ‐ Location Area Code.
CI ‐ Cell ID
MCC ‐ Mobile Country Code
BSIC ‐ Basic Station Identity Code
BCCH ‐ Broadcast Control Channel
RSSI‐ Receiver Signal Strength.
36
