DTT VoIP2All USER MANUAL
Chapter 9: Monitoring Calls

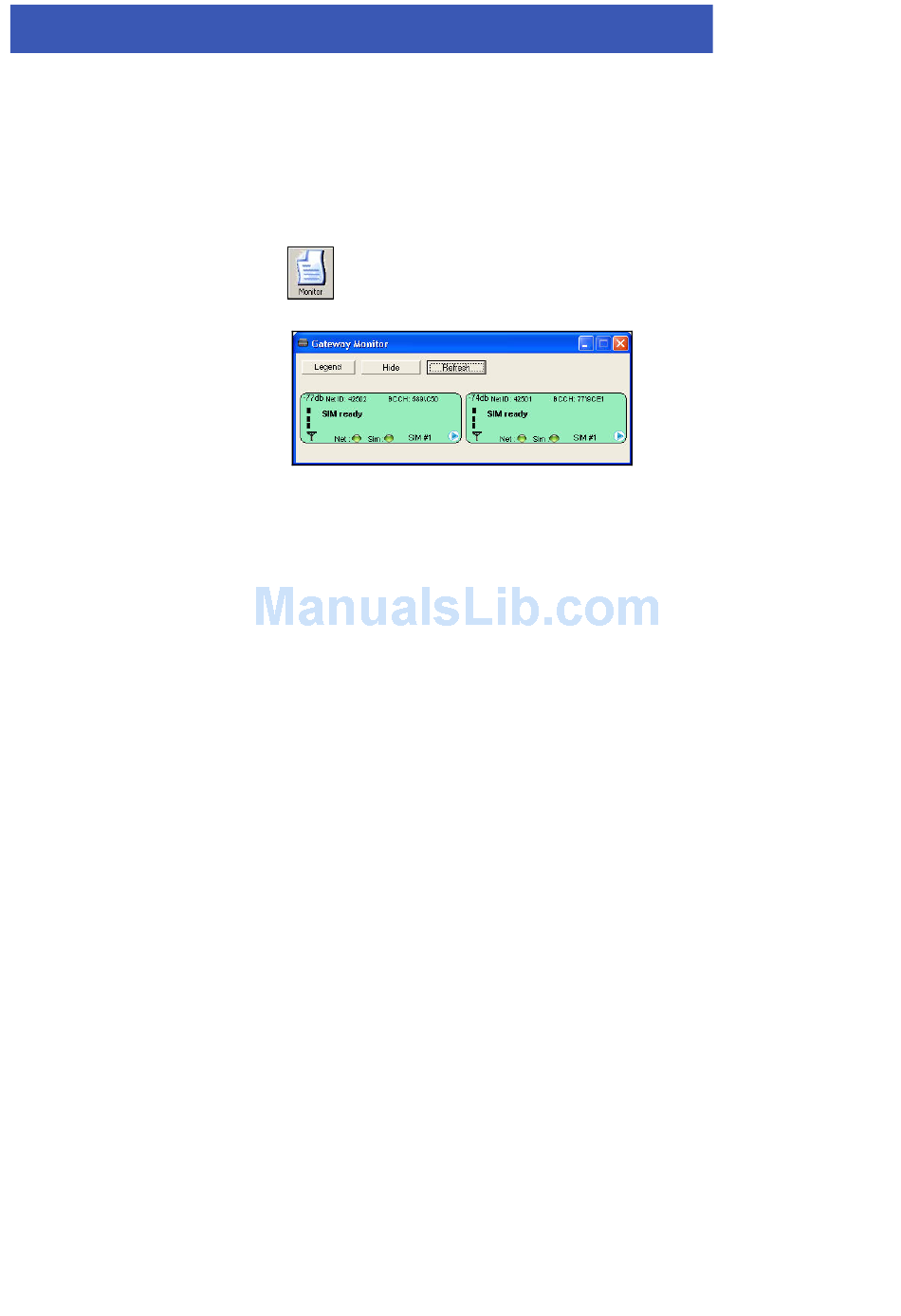

To monitor calls press:
1. The SIM indicator shows the status of the SIM (see below).
2. The Net indicator shows the status of the SIM registration in the GSM network (see below).
3. The SIM# indicates the number of the active SIM (1 is local SIM, 2 is SIM Server SIM).
4. The number at the top left indicates the GSM reception level.
5. The Net ID indicates the ID number of the GSM network.
6. The BCCH indicates the number of the Broadcast Channel.
The Net and SIM indicator's States:
•
•
•
Point the mouse on the blue triangle at the bottom right and right‐click. A menu will appear:
Chapter 9.1: Port Control Window
This window controls the GSM port settings.
VoIP 2 All™ Series: 4 Channel Gateway User Manual
The monitor screen opens.
A red indicator indicates there is no connection.
A yellow indicator indicates there is a connection, but no data transfer.
A green indicator indicates transfer of data.
Refresh port – Get data from the ports.
Reset Port ‐ Reset the ports, GSM port1 and GSM port2.
Port Control – Open the Port Control window.
35
