DTT VoIP2All USER MANUAL
SIM Swapping Limitation
Time Slot – is a continuous time slot for a SIM to work in the timetable.
There is a firmware limitation of 30 Time Slots for each port.
Chapter 4: VoIP Settings
Press
Chapter 4.1: General Settings

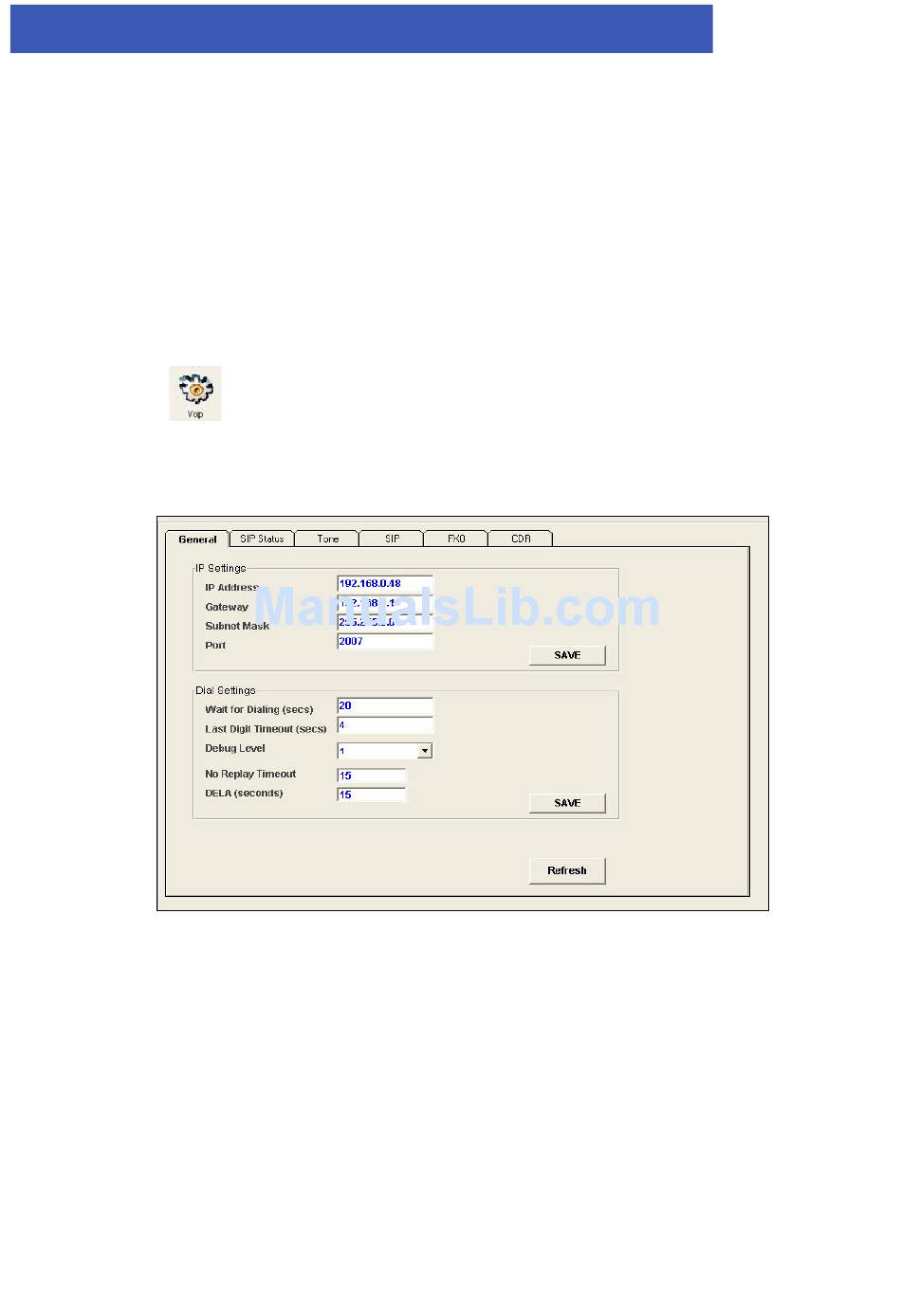

Press the General tab to see:
IP Settings
•
•
•
•
•
Dialing Settings
VoIP 2 All™ Series: 4 Channel Gateway User Manual
to open the VoIP setup window.
'IP Address' ‐ Is the IP address of the Gateway. By default it is 10.16.2.245.
'Default Gateway' – When working behind a firewall, you must setup 'Default Gateway'
for the Gateway to be able to access the WAN, usually it Is the IP address of the Router
that the Gateway work behind.
'Subnet Mask' ‐ When working behind a firewall, you must setup 'Subnet Mask'.
'Port' ‐ IP port of the VoIP
setting it is 2007.
'DNS' – When working behind a firewall, if you need to connect to a external SIP Server
with a name (not IP address), then you must setup the 'DNS', usually it Is the IP address
of the Router that the Gateway work behind.
2
ALL. Used for connecting with the PC management. Default
17
