DTT USER MANUAL
Chapter 6: Port Settings
In the window below, you are able to define the settings for each port.
The Cellular ports are marked GSM, the VoIP is the port of the internal SIP server and the Hosts
are the external SIP Servers you are connected to.
Open the Ports window.
Chapter 6.1: General Settings
Select 'General' from the top of the ports list on the left side of the window.
1. 'Default SIM'‐ Define when the local SIMs with register:
2. 'Clock IP' , 'Clock Port', 'Internal Srv', 'Internal Call' , MNP Timeout are currently not in use.
Chapter 6.2: Time Table

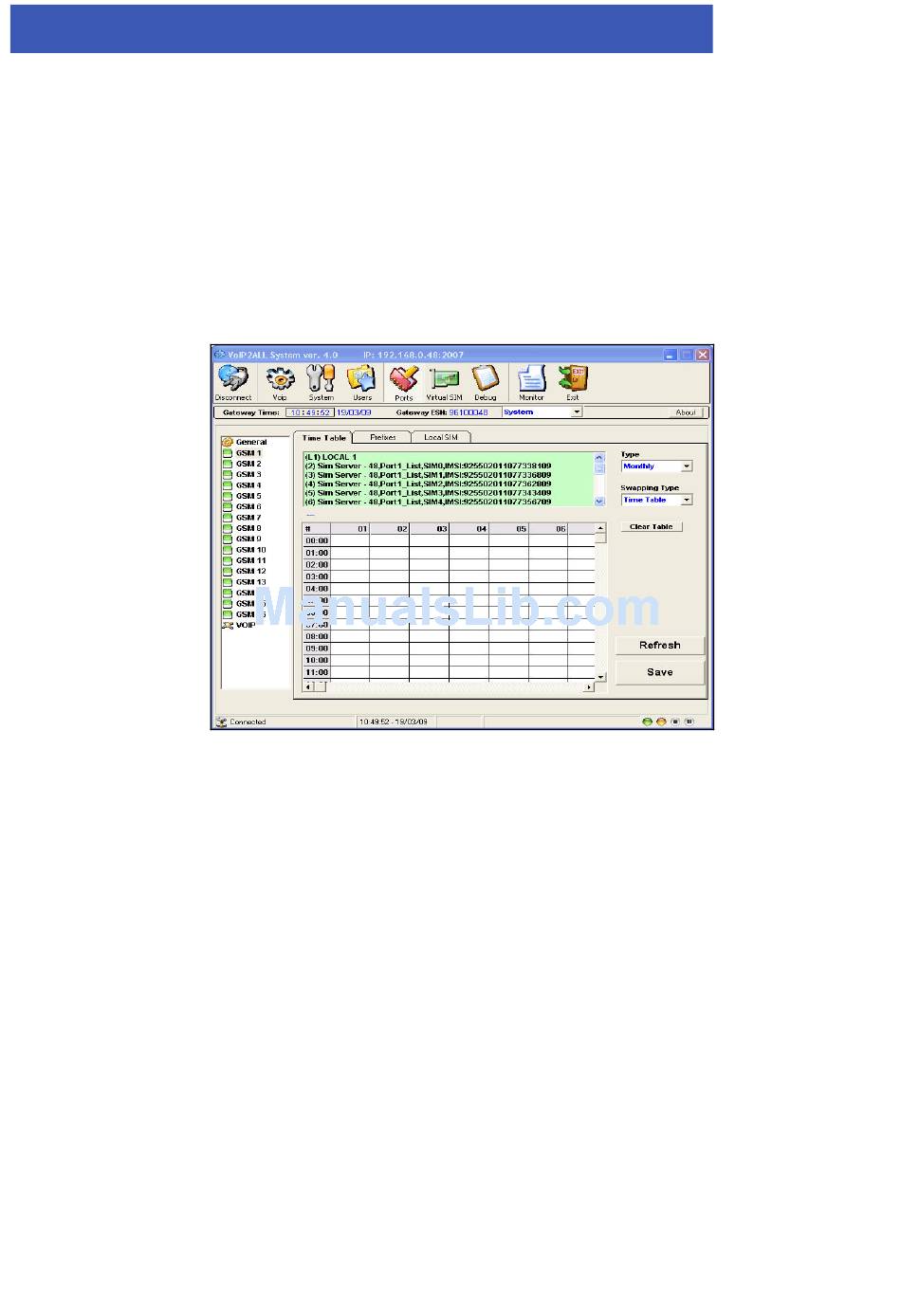

Open the 'Time Table' tab to assign the SIMs to a user defined time slot/s.
'Type' – is the form of the timetable.
'Swapping Type' – is the way to replace the SIMs.
VoIP 2 All™ Series: 4 Channel Gateway User Manual
•
'By Default' – The Local SIM will work on insertion.
•
'By Time Table' – The local SIM will work only when set in the time table.
•
'Monthly' – The table will show all the days of the mouth.
•
'Weekly' – The table will show all the days of the week.
•
'Time Table' – The SIMs will replace at end of their defined time in the timetable.
In this mode you set up a timetable and define which SIM will work in what hour.
