Summary of Contents for Discovery Telecom GoIP
-

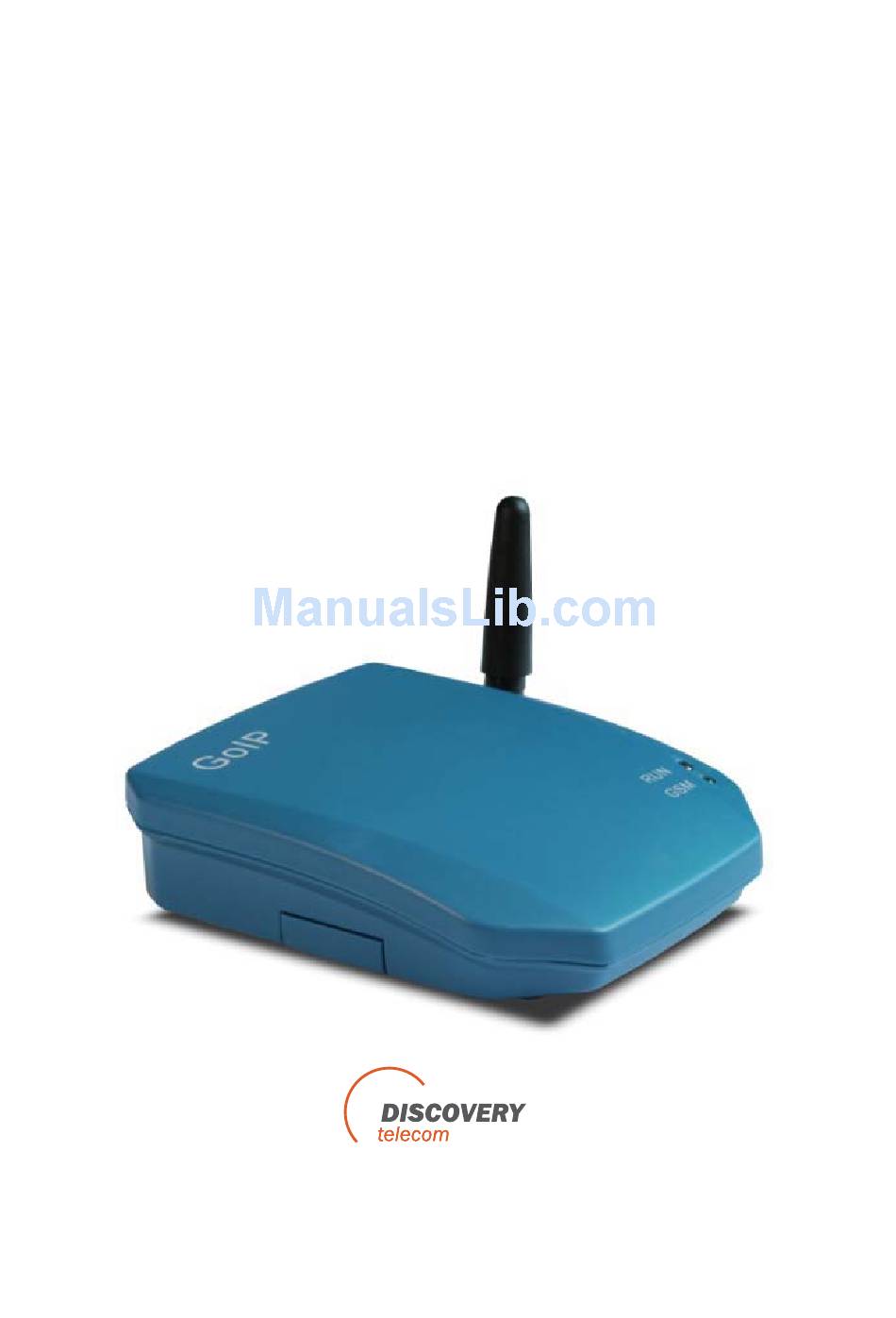

Page 1: User Manual
User Manual One Channel GSM VoIP Gateway Model: GoIP Discovery Telecom Technologies skype: discoverytelecom tel. +1 801 7900348 www.dtt.tw info@dtt.tw... - Page 2 One Chunnel GSM VoIP Gateway...
-
Page 3: Table Of Contents
One Chunnel GSM VoIP Gateway Contents 1 Product Introduction............ 4 1.1 General Information ......................4 1.2 Protocol ..........................4 1.3 Hardware Specification.......................5 1.4 Software Specification ......................5 1.5 List of the Package......................5 1.6 Appearance..........................6 2 Installation ..............7 2.1 Installation Steps .........................7 2.3 LED Indicators........................8 2.4 SMS Commands .........................8 3 Configuration Guide ............ - Page 4 One Chunnel GSM VoIP Gateway 3.5.2 Auto Forward Call To PSTN ................29 3.5.3 Call Forward (From PSTN To VoIP)..............29 3.6 SMS Disposal........................30 3.6.1 SMS Call Out ......................30 3.6.2 SMS Relay......................34 3.6.2.1 SMS Relay To VoIP System ................34 3.6.2.2 SMS Relay To GSM Network..............35 3.7 PSTN Caller ID Transparent .....................35 3.8 Dail Plan..........................37 3.9 Gain Settings…...
-
Page 5: Product Introduction
One Chunnel GSM VoIP Gateway 1 Product Introduction 1.1 General Information A VoIP GSM Gateway enables direct routing between IP and GSM network without the use of a FXO port or the PSTN network. With this device, the usage of VoIP is greatly enhanced with significant savings on long distance and roaming charges. -
Page 6: Hardware Specification
Multiple Language Support Supported call divert Supported PSTN auto call out to PSTN Supported Multi_devices Cooperate Mode(Group Mode) Supported SMS call out 1.5 List of the Package One GoIP Gateway main unit One DC4.5V/2000mA power adaptor One Ethernet cable (3M) -
Page 7: Appearance
One Chunnel GSM VoIP Gateway 1.6 Appearance... -
Page 8: Installation
3） POWER (DC4.5V/2000mA) Connect the 4.5V/2000mA Adapter provided to this power jack. 4） Reset Press this button to reset the GoIP Gateway to factory defaults. 2 Installation 2.1 Installation Steps Please follow the connection diagram above to install the GoIP Gateway. -
Page 9: Led Indicators
Connect an Ethernet cable the LAN port of the GoIP Gateway and the other end to your existing network equipment. Connect an Ethernet cable to the PC Port of the GoIP Gateway and the other end to a PC or other network device (Optional). -
Page 10: Web Configuration Menu
If you want obtained LAN port IP by sending a SMS message, please send” INFO “or” info”. If a local DHCP host is not available, you can then access the GoIP Gateway via the PC port. You will need to change the PC LAN configuration via the Network Connections under the Control Panel. -
Page 11: Status
If the connection is correct, the Web Browser will prompt you to enter the “User name” and “Password: as shown below. Enter the User name and Password and the press OK to access the GoIP Gateway Web Server. The default for both user name and password is “admin”. -
Page 12: Phone Information
One Chunnel GSM VoIP Gateway 3.2.1 Phone Information A. Serial Number Each Gateway has a unique serial number assigned by the factory such as GOIP08030031 This number is important for centralized configuration, technical support, and warranty. This number is printed on the bottom of the Gateway and is associated with your software license. -
Page 13: Gsm Module Information
One Chunnel GSM VoIP Gateway 3.2.3 GSM Module Information A. GSM Module This field displays the GSM module type. B. GSM Signal This field displays the GSM signal status. GSM Status This field shows the status of GSM connection status. If the connection is successful, this field displays LOGIN;... -
Page 14: Language
NTP server (Time Server). The time zone is specified as in GMT ± offset. For example, the Pacific Standard Time is GMT-8, and the Pacific Daylight Time is GMT-7. Note: The GoIP Gateway supports CDR and Billing Information, it is important to set up these two parameters properly. -
Page 15: Dtmf Min Detect Time Gap
If you encounter double digit problem, gain it to more, if you encounter lose digit, then gain it to less. 3.3.4 Auto-Provision The GoIP Gateway supports Auto Provisioning which enables configuration parameters to be set automatically without human intervention. The Auto Provisioning supports both HTTP and TFTP protocols. - Page 16 One Chunnel GSM VoIP Gateway Each tone listed above is defined in the following format: nc, rpt, c1on, c1off, c2on, c2off, c3on, c3off, f1, f2, f3, f4, p1, p2, p3, p4 Where: nc is the number of cadences rpt is the repeat counter(0 - infinite, 1~n - repeat 1~n times) c1on is the cadence one on (in milliseconds) c1off is the cadence one off (in milliseconds) c2on is the cadence two on (in milliseconds)
-
Page 17: Gsm Group Mode
Client Mode: When GoIP running at Client Mode; It will auto send itself GSM number and state to Server GoIP device and waiting the incoming call forward from Server GoIP. You must enter itself GSM number and Server GoIP device’s IP address into follow... -
Page 18: Auto Reboot
When GoIP run as alone mode, please set it to Disable. 3.3.7 Auto Reboot This option enable GoIP auto reboot each day, GoIP will auto reboot itself at Reboot Time. If meet a current called, the action will auto delay after the call finish. -
Page 19: Gatekeeper Mode
192.168.1.70:8080. GoIP will send out all VoIP calls to this address. 3.4.1.2 Gatekeeper Mode The “Gatekeeper Mode” mode allows a user to setup the GoIP Gateway by registering to the gatekeeper with one H.323 account. A. H.323 Phone Number H.323 phone number: fill the login number (E164) here. -
Page 20: Advance Settings
One Chunnel GSM VoIP Gateway If H.235 Authentication is required, enable this field and fill in the values as provided. 3.4.1.3 Advance Settings Click “Advance Settings” to access additional H.323 parameters as shown below. A） RAS Port RAS Port is an unreliable channel which is used to convey the registration, admissions, bandwidth change, and status messages between two H.323 entities. -
Page 21: Sip Phone
F） DTMF Signaling 1） DTMF TYPE DTMF signals can be sent over to the called party once a call is established. GoIP Gateway supports both Inband and Outband DTMF signal types. For Inband DTMF type, DTMF signals are generated locally at the calling phone and then send to the called party as part of the voice signals. - Page 22 One Chunnel GSM VoIP Gateway GoIP Gateway’s SIP configure page as follow: A）Phone Number Enter a SIP phone number. B）SIP Proxy Enter the SIP proxy IP address or domain name. If the registration port isn’t 5060, ” and the port number. An example is sip.dtt.tw:8080.
-
Page 23: Advanced Settings
One Chunnel GSM VoIP Gateway The GoIP Gateway supports one Backup Server as an alternative to the main server. Once registration to the main server fails, the GoIP Gateway will try to register to the Backup Server. I） Outbound Proxy OutBound proxies are devices that will forward SIP signaling (and frequently RTP media traffic too). - Page 24 One Chunnel GSM VoIP Gateway A） Signaling Port (SIP Local port) The default SIP port is 5060. Change this as required. B） NAT Keep-alive The NAT Keep-alive feature sends a null packet to the SIP Proxy periodically in order to keep the NAT open for incoming data traffics. C）...
-
Page 25: Media Setting
E） DTMF Signaling 1） DTMF TYPE DTMF signals can be sent over to the called party once a call is established. GoIP Gateway supports both Inband and Outband DTMF signal types. For Inband DTMF type, DTMF signals are generated locally at the calling phone and then send to the called party as part of the voice signals. - Page 26 This parameter specifies the range of the RTP (Real Time Protocol) Ports used by the GoIP Gateway. If your network limits the usable port range, this parameter may need to be modified. Please consult your network administrator for more information.
-
Page 27: Codec Preference
3.4.5 NAT Traversal 3.4.5.1 Signaling NAT Traversal Signaling NAT traversal may be required if the GoIP Gateway is put behind a NAT (or multiple NATs). Depending on your network environment and SIP Server capabilities, this feature may or may not be turn on. -
Page 28: Media Nat Traversal
One Chunnel GSM VoIP Gateway provider for more information. 3.4.5.2 Media NAT Traversal Similar to Signaling NAT Traversal, this feature allows media packets (RTP) to be routed properly in various network environments. A） None Select None to disable this feature. B）... -
Page 29: Call Divert
“,” to add a 500ms delay to the dialing sequence. If this field is blank, calls will not be forwarded. The GoIP Gateway answers an incoming VoIP call and generates a dial tone. The caller can then dial a number (PSTN or Mobile) desired. Please see below if the... -
Page 30: Auto Forward Call To Pstn
When GoIP Call divert options “Forward Number (VoIP To PSTN)” is empty, GoIP has a default call forward rule. A: When the be Caller ID is GoIP’s SIP account number, GoIP will take the call and feed back a dial tone to VoIP caller; The means is VoIP caller must dial PSTN number when hear this dial tone. -
Page 31: Sms Disposal
GoIP Gateway will generate an indication tone after answering an incoming call. The caller is then ready to dial the password. Once the password is correctly entered, the GoIP Gateway generates a VoIP dial tone and waits for the caller to dial a VoIP number. 3.6 SMS Disposal 3.6.1 SMS Call Out... - Page 32 B. GoIP use SMS Dial Mode 1 and add a prefix as 999: One mobile phone’s number is (86)13800000000, it sends a SMS “8675588228822” to GoIP’s GSM SIM card. When GoIP device receive this SMS, it will auto to call number as 9998675588228822, and the caller is number 8613800000000.
- Page 33 GoIP use SMS Dial Mode 2: One mobile phone’s number is (86)13800000000, it sends a SMS “8675588228822” to GoIP’s GSM SIM card. When GoIP device receive this SMS, it will auto to call number as 8675588228822, and the caller number is GoIP’s SIP account number.
- Page 34 GoIP use SMS Dial Mode 3: One mobile phone’s number is (86)13800000000, it sends a SMS “8675588228822” to GoIP’s GSM SIM card. When GoIP device receive this SMS, it will auto to call number as 8675588228822*(86)13800000000, and the caller number is GoIP’s SIP account number.
-
Page 35: Sms Relay
GoIP when some GSM phones send a SMS to GoIP. 3.6.2.1 SMS Relay To VoIP System When GoIP receive a SMS come from GSM network, it will auto relay to VoIP system’s appointed number (SMS Forward Number); Suppose the SMS Forward Number is 3999 and SMS sender number is “8613682626865... -
Page 36: Sms Relay To Gsm Network
When GoIP receive a message come from SIP server as follow: The GoIP will send a SMS to GSM number 13682626800, the SMS content is “Hello world”. 3.7 PSTN Caller ID Transparent In SIP protocol, GoIP support PSTN Caller ID transparent to VoIP via SIP Invite signaling;... - Page 37 Disable: Disable PSTN Caller ID transparent to VoIP; Use Remote Party ID: GoIP add Caller ID in SIP invite’s Remote Party ID option. Use CID as SIP Caller ID: GoIP use PSTN Caller ID in SIP invitee’s Caller ID option and Remote Party ID option.
-
Page 38: Dail Plan
About H.323’s PSTN Caller ID transmit; we will perfect it in later firmware. 3.8 Dail Plan Dial Plan defines how a number (VoIP) is processed when GoIP receives it. This field is located in the Calling Setting Window and it is available for both H.323 Phone and SIP Phone. - Page 39 One Chunnel GSM VoIP Gateway specific digit has a limited range, use the syntax [A-B] where A and B are both digit (0 to 9) and B is greater than A. The length of the input number can be limited by using “X”...
-
Page 40: Gain Settings
One Chunnel GSM VoIP Gateway b) Number entered = “13001234567”, actual number dialed = “13001234567”. Please note that the above samples are simple and intended to show the meaning of various rules. They may not have any practical meaning. A combination of these rules (joined with the symbol “|”) can be realized for a much more complicated dialing application. -
Page 41: Lan Port
Three LAN Port modes are supported: DHCP, Static IP, PPPoE. 1） DHCP Choose DHCP if a local DHCP host is available. This allows the GoIP Gateway to obtain network information (IP Address, Subnet Mask, Default Route, Primary DNS, Secondary DNS, and other DHCP options) from the DHCP host. -
Page 42: Pc Port Configurations
3.10.2 PC Port Configurations The PC Port allows addition network devices to be attached behind the GoIP Gateway. It offers both Bridge and Static IP modes to meet your network topology. It is factory preset to the Static IP mode with the IP address 192.168.8.1. -
Page 43: Save Configuration
One Chunnel GSM VoIP Gateway Select Bridge mode if your network topology requires the network devices (PC or others) to be in the same network segment as the GoIP Gateway. In this case, the GoIP Gateway functions as an Ethernet Switch. -
Page 44: Discard Changes
One Chunnel GSM VoIP Gateway 3.12 Discard Changes To discard all changes made, click on the Discard Changes tab. 3.13 Tools Menu Select the Tools to access the following functions: Online Upgrade, Change Password, Reset Config, and Reboot. 3.13.1 Online Upgrade To perform a firmware upgrade, select the Online Upgrade tab to access the page below. -
Page 45: Change Password
“admin”. This user name allows full access to all configuration settings available. 3.13.3 Reset Configuration Click on the Reset Config tab to reset the GoIP Gateway to its factory default settings. 3.13.4 Reboot the Device Click on the Reboot tab to reboot the GoIP Gateway. -
Page 46: Hardware Specifications
One Chunnel GSM VoIP Gateway 4 Hardware Specifications Characteristics of the hardware Parameter Remarks Processor ARM9E 133MHz VPDSP101 95MHz Flash Power DC4.5V/2000mA +-10% Input AC100V to AC240V Default 900M/1800M GSM Module Type Optional 850M/1900M Must Customize Consumption The Maximum 3 W LEDs RUN, GSM, LAN, PC Network Ports...
