Before installing the processor, please access Intel

detailed information

Processor Integration Video (LGA1156):

http://www.intel.com/support/tw/processors/sb/CS-030860.htm

3.1

The LGA1156 processor socket comes with a cover to

protect the processor. Please install the processor into the

CPU socket step by step as below:

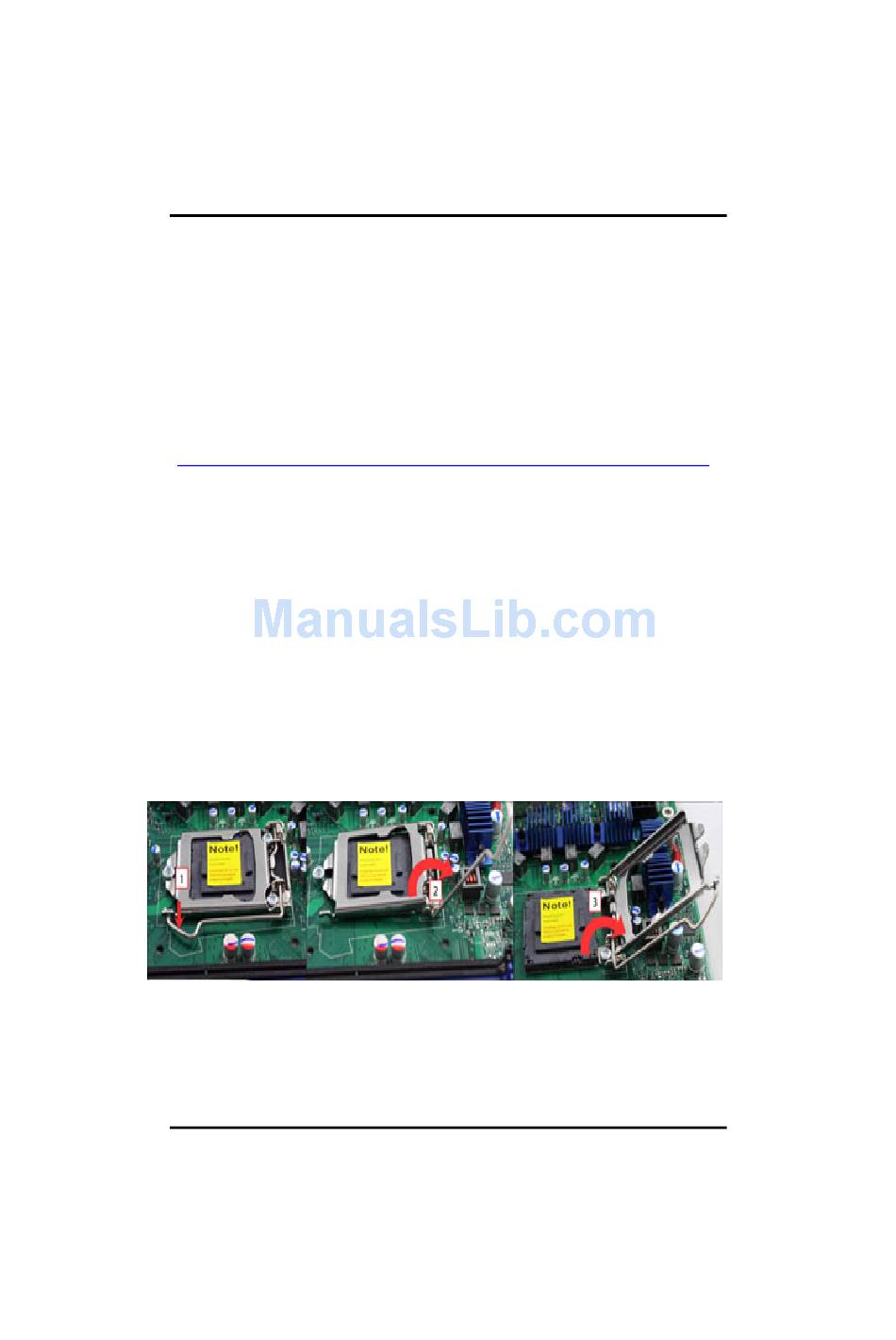

Step1 Opening the Socket:

1. Disengage load lever by releasing down and out on the hook.

This will clear retention tab.

2. Rotate load lever to open position at approximately 135°.

3. Rotate load plate to open position at approximately 150°.

Note: Apply pressure to corner with right-hand thumb when

opening or closing load lever - otherwise lever will bounce

back (as a mouse trap) causing bent contacts.

SHB103 LAG1156 Full-Size SBC User's Manual

HARDWARE INSTALLATION

CHAPTER 3

website for more
