(3)-4

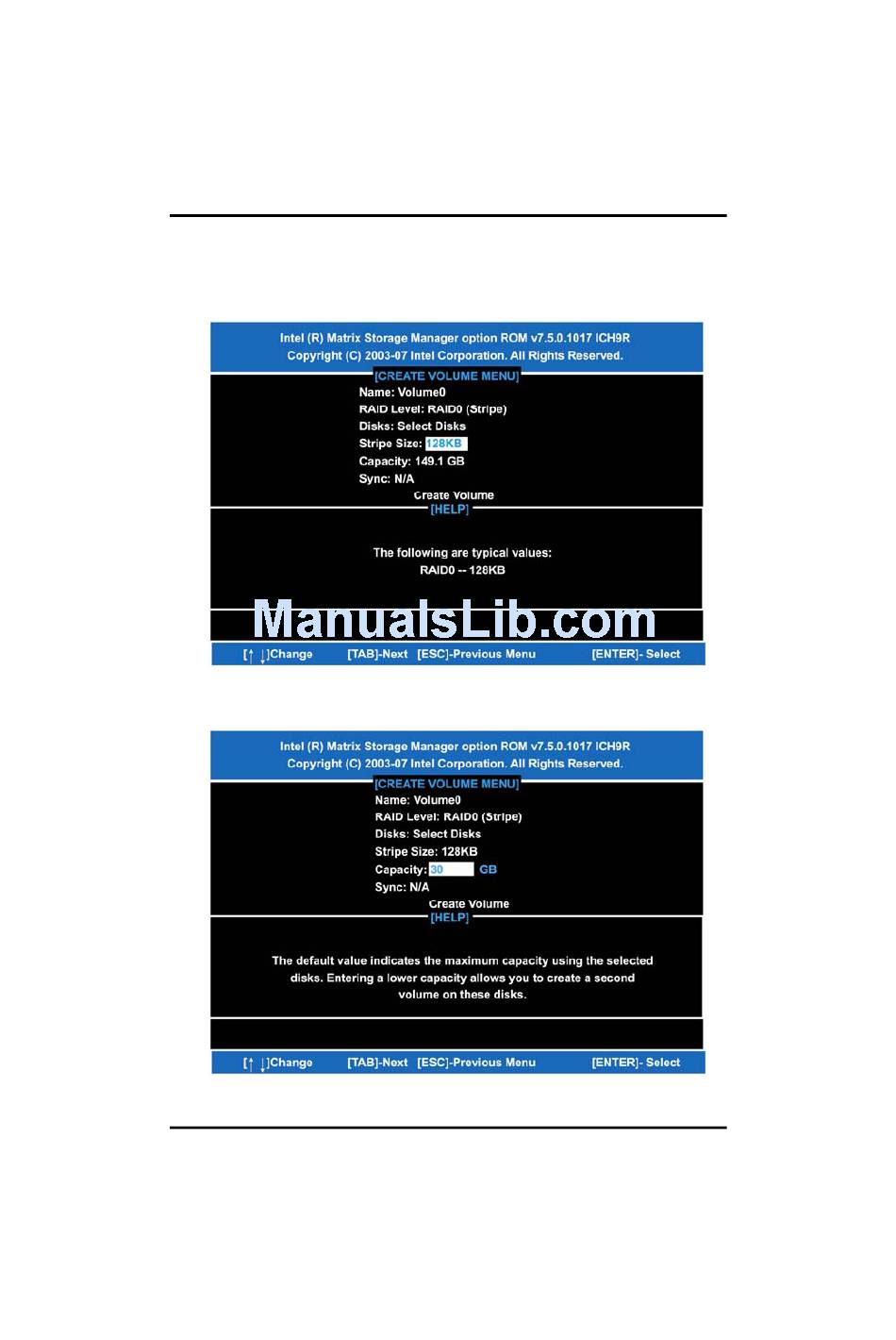

Set the stripe block size. The KB is the standard unit of stripe

block size. The stripe block size can be 4KB to 128KB. After

the setting, press ENTER for the array capacity.

(3)-5

After setting all the items on the menu, select Create Volume

and press ENTER to start creating the RAID array.

Configuring SATA for RAID Function

SHB103 LAG1156 Full-Size SBC User's Manual
