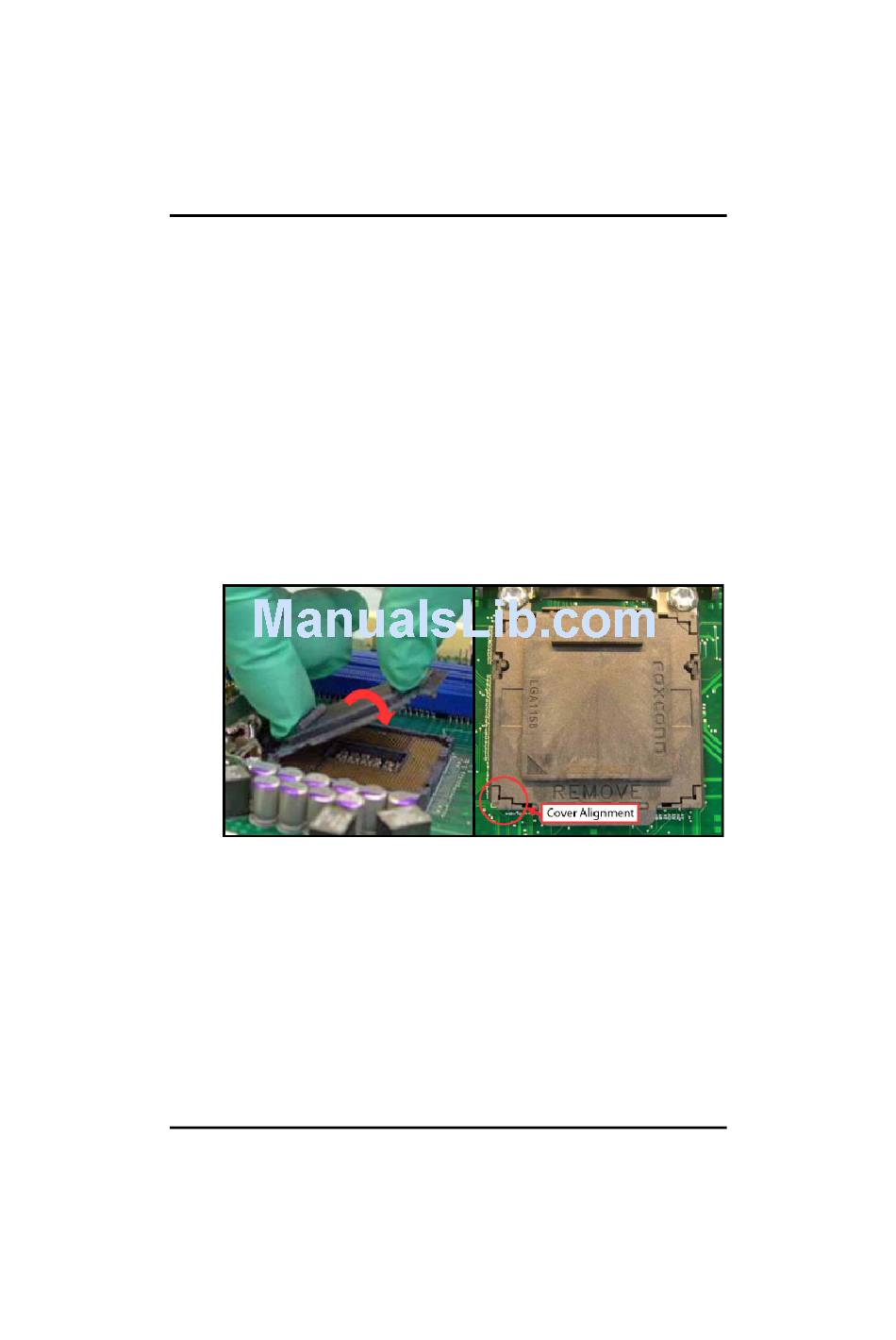

A. Engage protective cover retention features to

outside of LGA1156 Socket, AND align 2 cover

corners to socket corners (This step is critical

to avoid Bent Contact Damage!)

B. Lower protective cover to attach to the

LGA1156 Socket on Shoulder screw side

3. Perform Visual and Tactile verification that

protective cover is properly seated in the

LGA1156 Socket:

*Hold cover and move gently "side to side" to feel

the play within the cover and the LGA1156

Socket.

Hardware Installation

SHB103 LAG1156 Full-Size SBC User's Manual
