SHB103 LAG1156 Full-Size SBC User's Manual

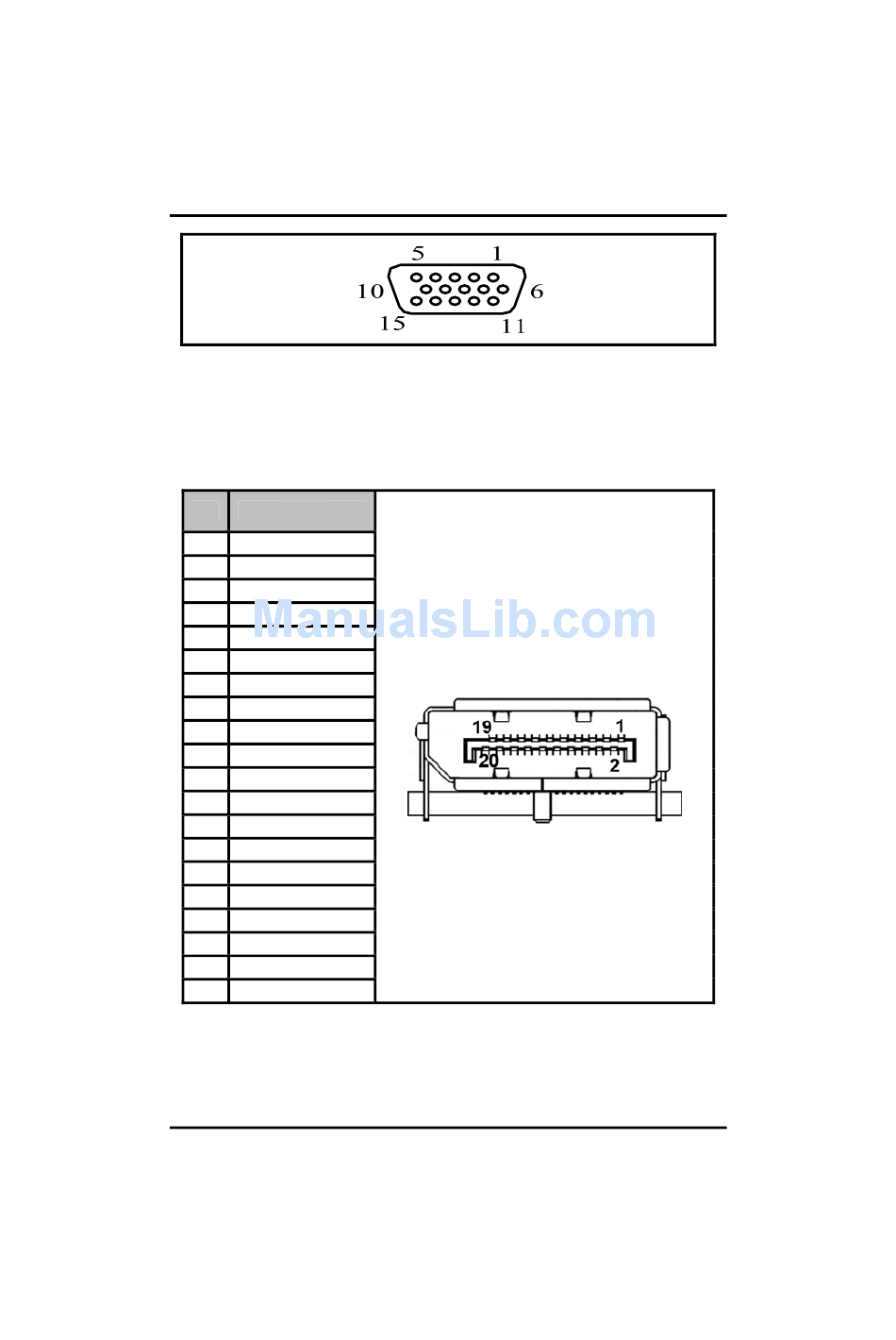

2.4.18 Display Port Connector (CN24)

CN24 is a Standard Display Port Connector co-layout with
CN23.
Pin Signal
1 DPB_LANE0
2 GND
3 DPB_LANE0#
4 DPB_LANE1
5 GND
6 DPB_LANE1#
7 DPB_LANE2
8 GND
9 DPB_LANE2#
10 DPB_LANE3
11 GND
12 DPB_LANE3#
13 Detect Pin
14 GND
15 DPB_AUX
16 GND
17 DPB_AUX#
18 DPB_HPDE
19 N.C.
20 3.3V
22
CN24
Jumpers and Connectors
