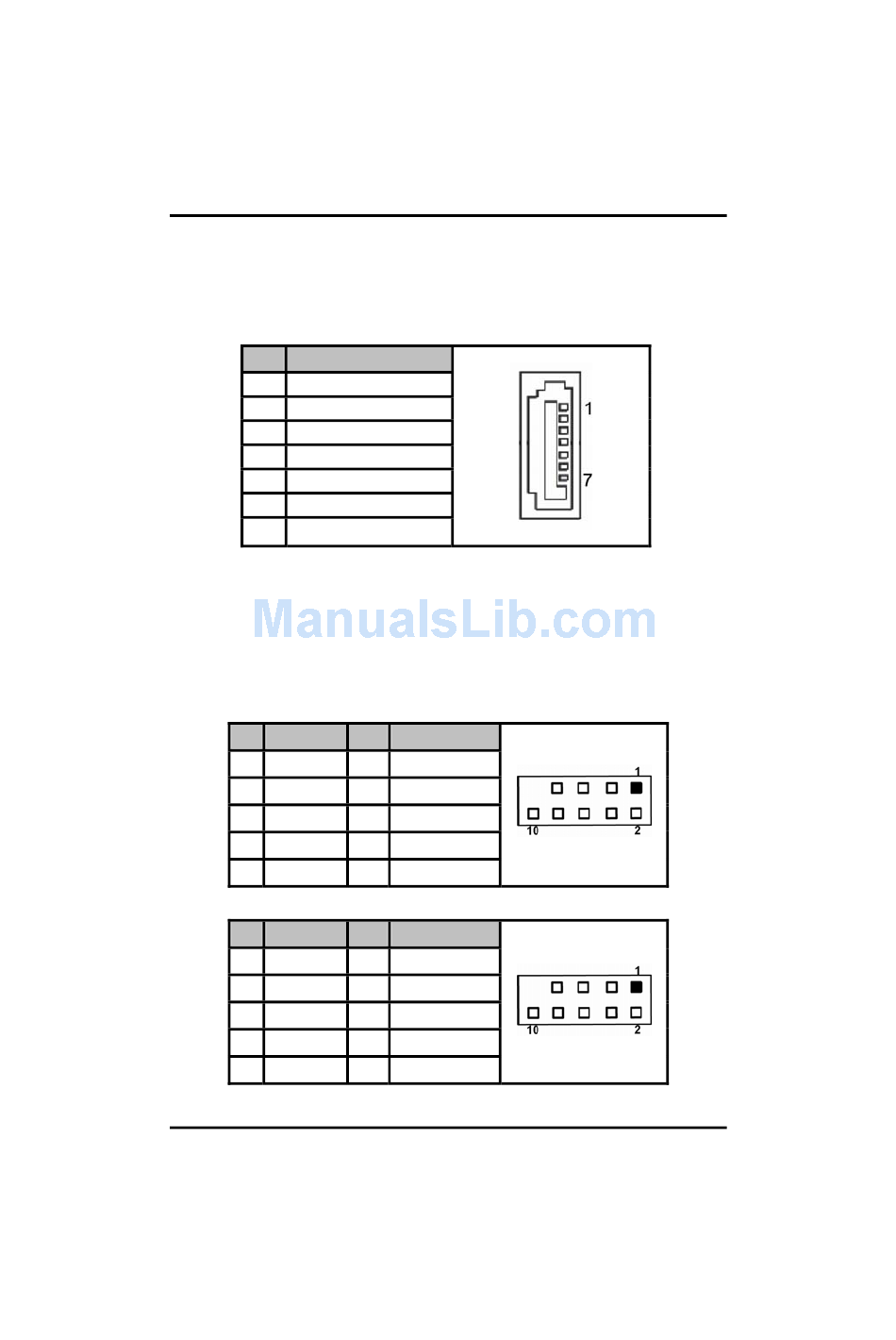

2.4.14 SATA Connectors (CN11, CN12, CN13, CN16, CN17, CN18)

These SATA connectors are for high-speed SATA interface
ports and they can be connected to hard disk devices.
Pin
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND

2.4.15 Internal USB Connectors (CN21, CN22, CN25)

The 10-pin standard Universal Serial Bus (USB) connectors,
CN21/22/25, on this board are for installing versatile USB
interface peripherals.
Pin Signal
1 USB_PWR
3 USB2-
5 USB2+
7 GND
Pin Signal
1 USB_PWR
3 USB4-
5 USB4+
7 GND
20
Signal
Pin Signal
2 USB_PWR
4 USB3-
6 USB3+
8 GND
10 GND
Pin Signal
2 USB_PWR
4 USB5-
6 USB5+
8 GND
10 GND
CN21
CN22
Jumpers and Connectors
