SHB103 LAG1156 Full-Size SBC User's Manual

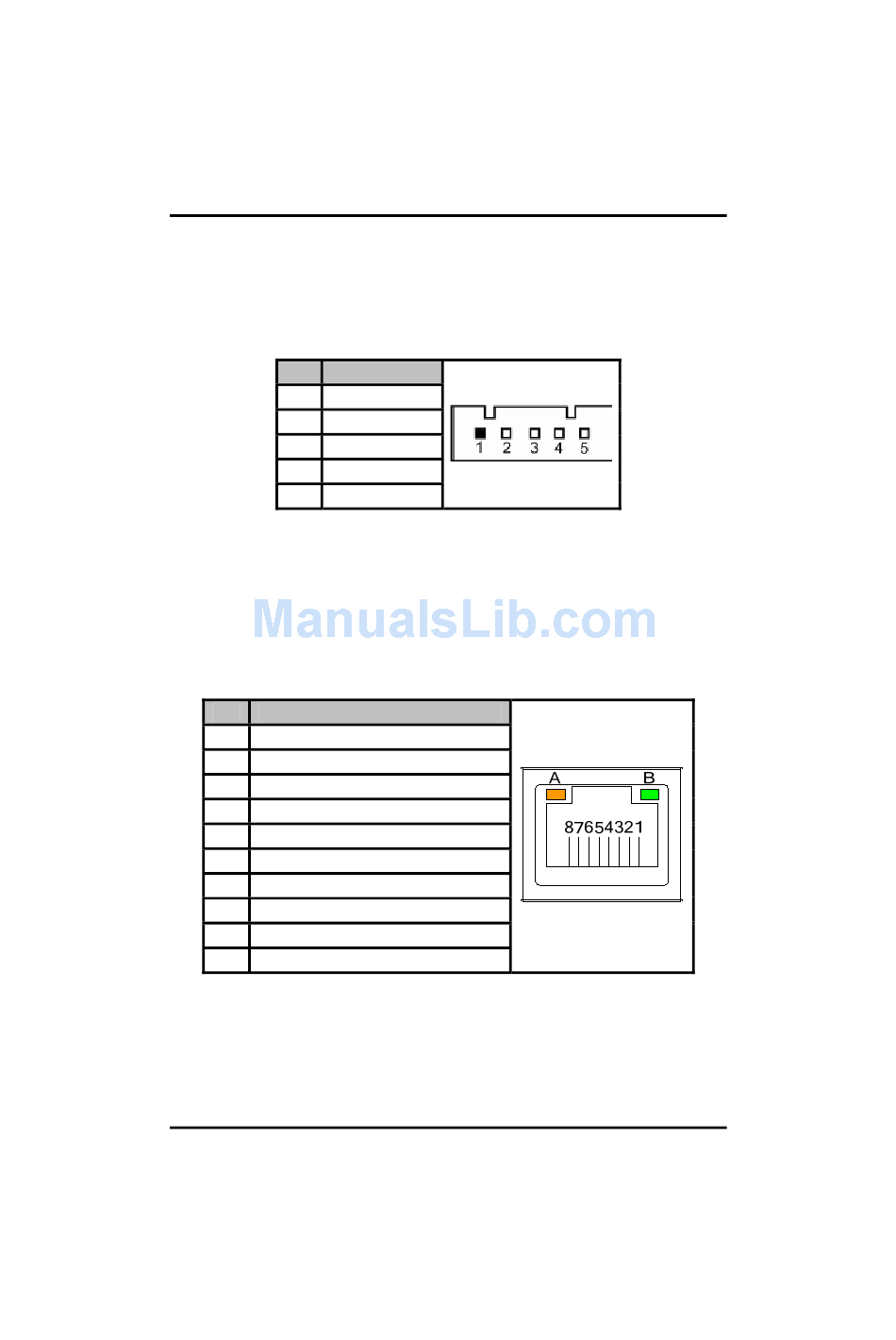

2.4.11 PS/2 Keyboard, Mouse Connectors (CN28, CN29)

The board provides theMouse (CN28)/ Keyboard (CN29)
interface with a 5-pin connector.
Pin
1 Clock
2 DATA
3
No connector
4 GND
5 +5V

2.4.12 Ethernet RJ-45 Connectors (CN14, CN20)

The RJ-45 connectors LAN1 and LAN2 are for Ethernet. To
connect the board to 100-Base-T or 1000-Base-T hub, just
plug one end of the cable into LAN1 and connect the other
end (phone jack) to a 100-Base-T hub or 1000-Base-T hub.
Pin
Tx+ (Data transmission positive)
1
2 Tx- (Data transmission negative)
Rx+(Data reception positive)
3
RJ-1(For 1000 base T-Only)
4
RJ-1(For 1000 base T-Only)
5
6 Rx- (Data reception negative)
RJ-1(For 1000 base T-Only)
7
RJ-1(For 1000 base T-Only)
8
A Active LED
Speed LED
B
18
Signal
Signal
Jumpers and Connectors
