SHB103 LAG1156 Full-Size SBC User's Manual

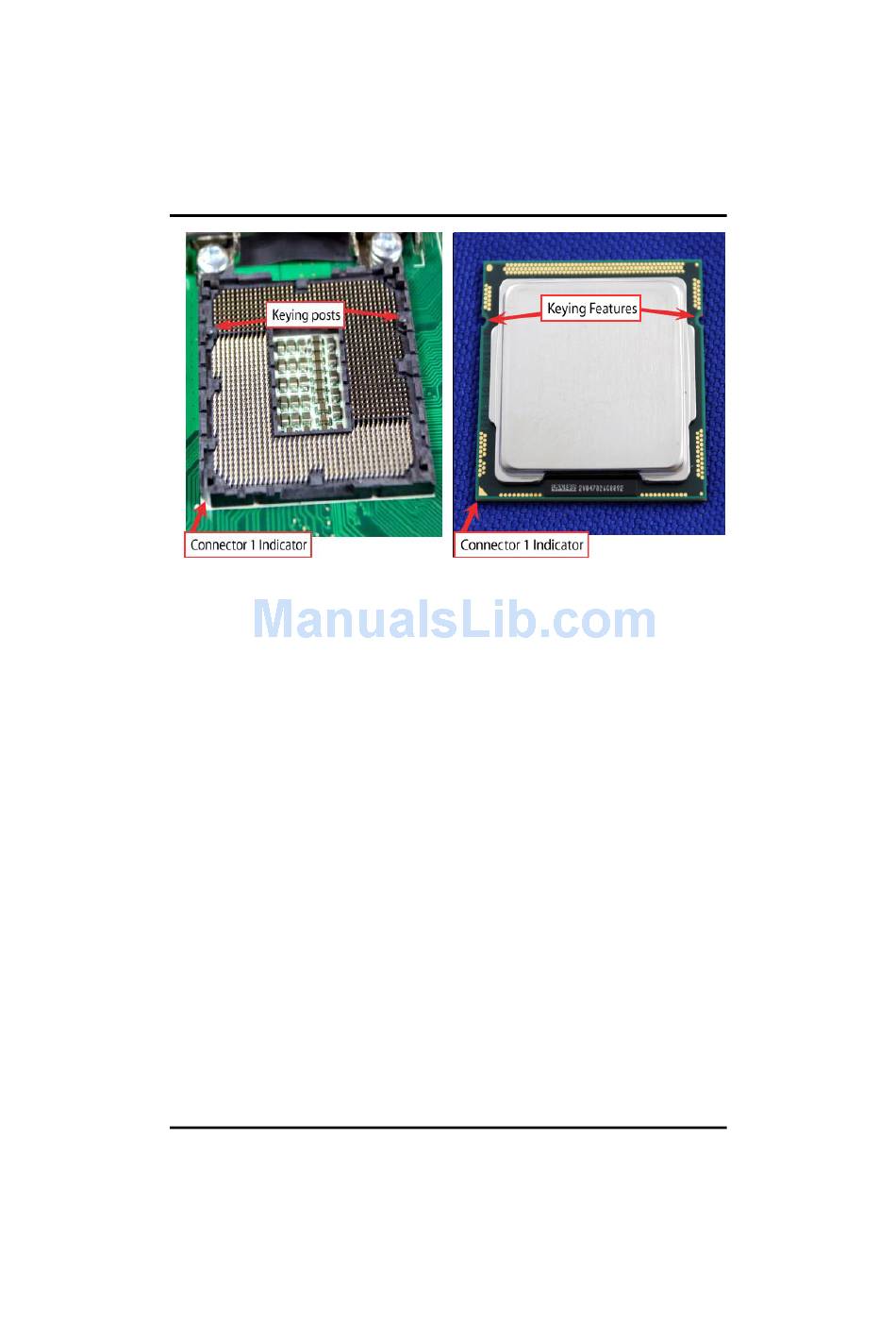

4. Grasp the processor with thumb and index finger along the top

and bottom edges. (Do not touch the Orientation Notches.) The

socket will have cutouts for your fingers to fit into (see image

below).

5. Carefully place the processor into the socket body vertically

(see image below).

Note: Tilting or roughly shifting it into place can damage

socket contacts.

Caution: Do not use a vacuum pen for installation.

Hardware Installation
