SHB103 LAG1156 Full-Size SBC User's Manual

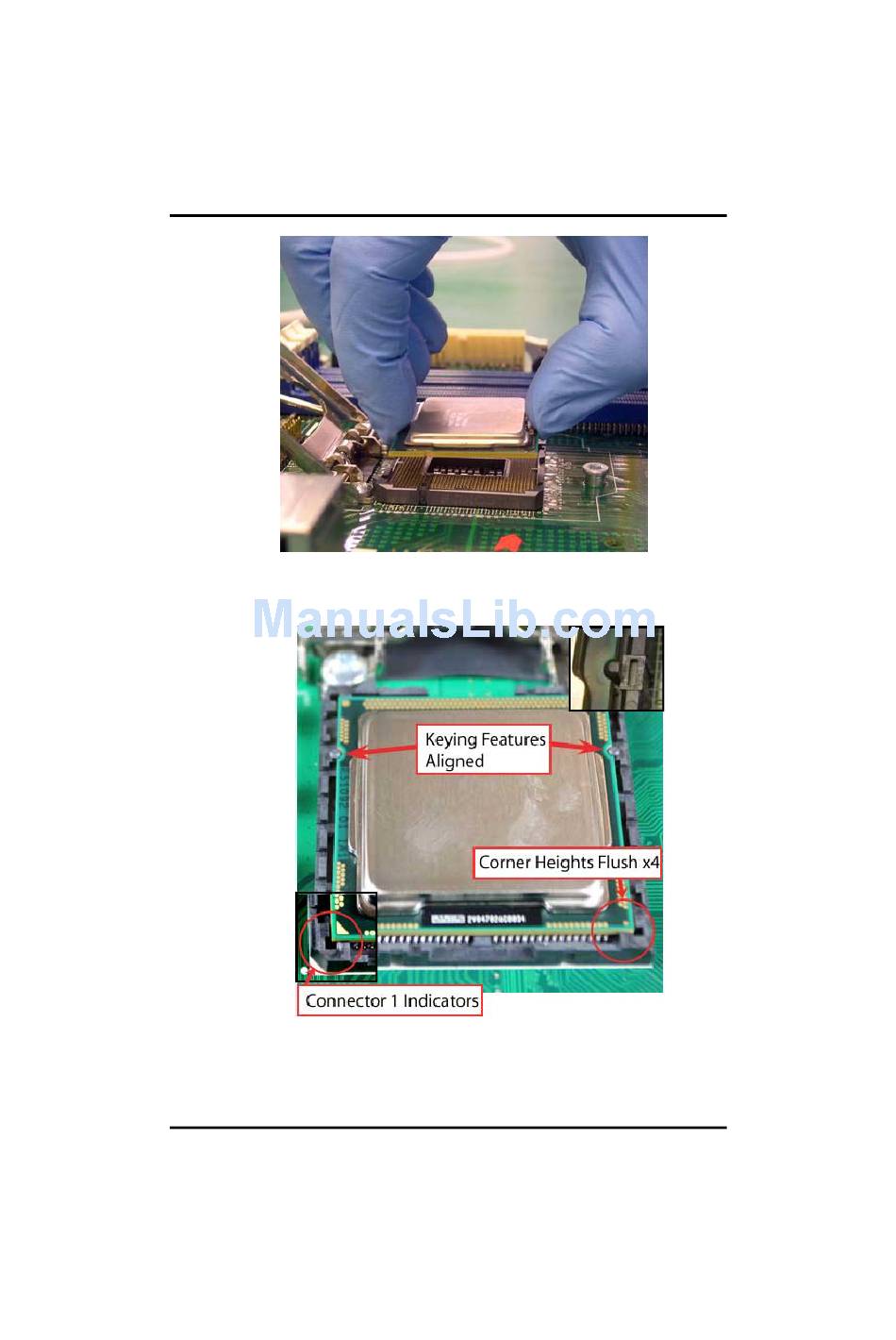

6. Verify that package is within the socket body and
properly connected to orientation keys.
Hardware Installation
27
