Adding Port Administrators and Users

The system administrator and root user can add port administrators and users easily with the web interface by choosing System
administration > User administration > Add user. Root's password must be modified from the command line using the command
passwd.
N T I
S E R I M U X
T M
R S E C U R E
N e t w o r k T e c h n o l o g i e s I n c

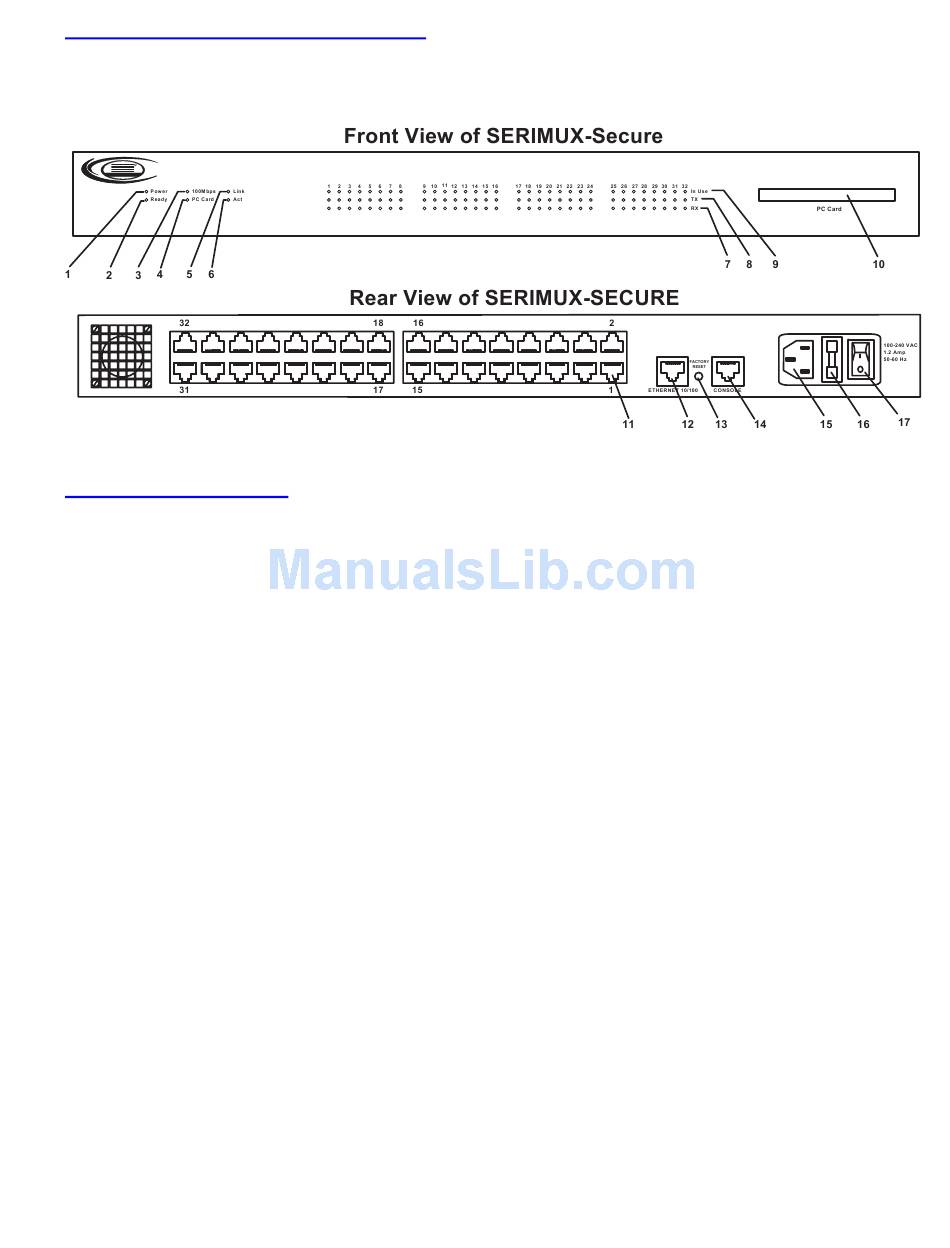

Features and Functions

1. Power LED- Indicates SERIMUX is powered up
2. Ready- Indicates SERIMUX is ready to run
3. 100Mbps LED- for visual indication that a 100Base-TX connection has been detected
4. PC Card LED- visual indication that a PCMCIA device is running
5. Link LED- visual indication of a connection to an ethernet network
6. ACT LED- visual indication of any activities, either transmitting or receiving data, through SERIMUX
7. RX LED- indicates the port is receiving data
8. TX LED- indicates the port is transmitting data
9. In Use- indicates the port has a connection an is enabled
10. PC Card- For attachment of optional PCMCIA device (memory card, LAN Card, or modem card)
11. RJ45 Connector- For attachment of devices to be connected by SERIMUX
12. RJ45 Connector- Ethernet 10/100- for connection to Ethernet LAN
13. Factory Reset- button to enable user reset to factory default settings
14. Console- RJ45 Connector- For attachment of local access user console
15. IEC Power Socket- for connection of power cord
16. Fuse- Overcurrent protection fuse
17. Power ON/OFF switch
