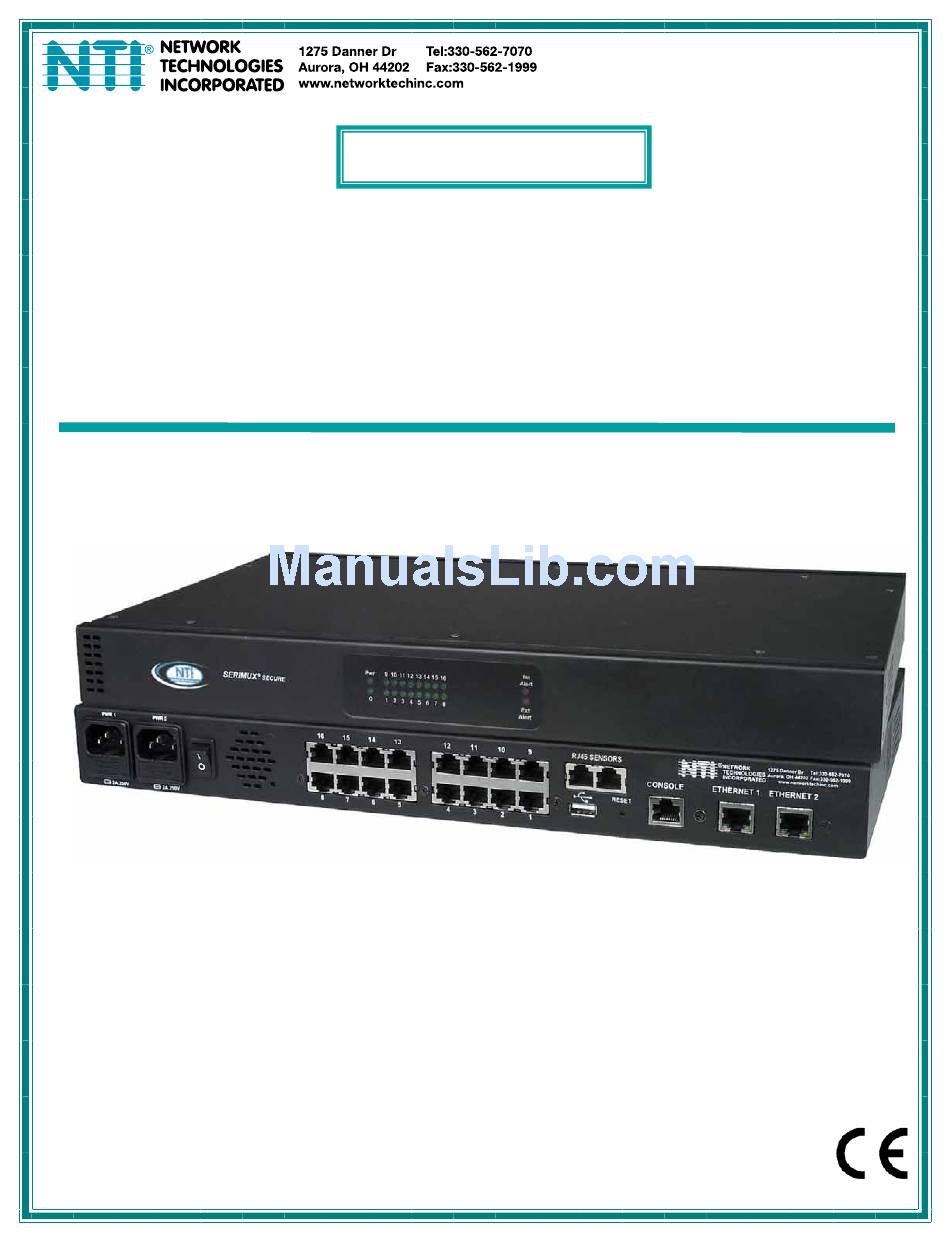

- Page 1 ® SERIMUX Series SERIMUX-S-x SECURE SSH CONSOLE SERIAL SWITCH Installation and Operation Manual MAN107 Rev 2/27/14...
-
Page 2: Typographic Conventions
TRADEMARK SERIMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2009, 2014 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Serial Interface Specifications ............................. 1 Network Interface ................................ 1 RJ45 Sensor Ports ..............................1 Protocols..................................2 Supported Web Browsers ............................2 Definitions..................................2 Materials ..................................3 Default User Name and Password..........................4 Features and Functions..............................5 Installation.................................. - Page 4 Sensor Access List .............................. 29 Sensor Authentication ............................30 Network Management ............................... 31 IP Configuration ..............................31 Server Configuration............................... 33 SNMP .................................. 35 TCP Setting................................35 Administration Settings.............................. 36 Unit Settings................................36 Unit Setting->Change Admin Password......................36 Unit Settings->Date Time Settings ........................37 Security Settings ..............................
- Page 5 Sensor Management ..............................63 Internal Sensors..............................63 External Sensors..............................63 RS485 Sensors ..............................63 RS485 Sensor Management ..........................63 Sensor Summary ..............................63 Adding a Sensor ..............................65 Configure a Sensor ..............................66 Sensor Settings ..............................67 Sensor Alert Settings............................67 Sensor Log Settings ............................
- Page 6 TABLE OF FIGURES Figure 1- Secure rack mount ears to switch............................6 Figure 2- Secure switch to a rack ..............................6 Figure 3- Connect terminals and devices to SERIMUX Console Switch.................... 7 Figure 4- Connect the LAN to the SERIMUX ............................. 7 Figure 5- Power connections for SERIMUX with Dual Power option ....................
- Page 7 Figure 46- Network Management- SMTP server settings ........................ 33 Figure 47- Network Management- NFS server configuration......................34 Figure 48- Network Management-SNMP configuration........................34 Figure 49- Network Management-TCP settings..........................35 Figure 50- Administration Settings ..............................36 Figure 51- Administration Settings-Unit Settings ..........................36 Figure 52-Unit Settings-change password ............................
- Page 8 Appendix A - SERIMUX Port Characteristics........................... 86 Appendix B-SERIMUX User and Administrator Characteristics....................... 86 Appendix C- Cable Adapters ................................87 Appendix D- Common Commands from Shell Command Line ......................89 Appendix E- SERIMUX-S-x Default Paths ............................89 Appendix F- SERIMUX-S-x Default Network Settings ........................89...
-
Page 9: Introduction

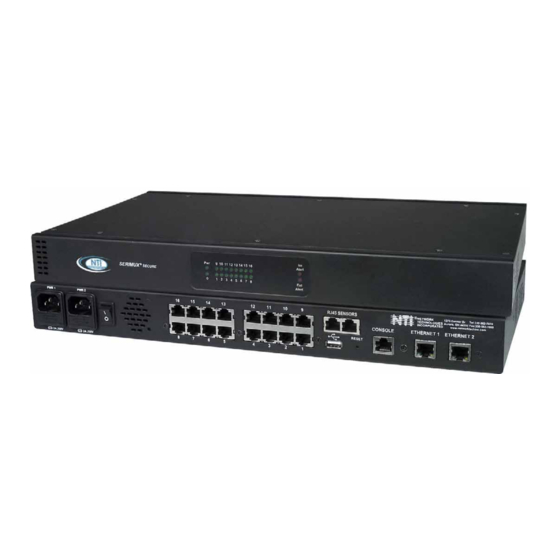

INTRODUCTION The NTI SERIMUX-S-x SSH Console Serial Switch (SERIMUX) is a serial port switch that delivers secure management of up to 32 serial devices via the internet, TCP/IP network, or dial-up modem connections. It combines the advanced security of Secure Shell v2 with unlimited access to remote network management. -
Page 10: Protocols
NTI SERIMUX SERIES SSH CONSOLE SWITCH Protocols • SSH V2, Telnet ,IPMI • IPV4, IPV6 • TCP/IP, TFTP, DHCP, ICMP, UDP, ARP • HTTP, HTTPS, SMTP, SNMP V1/V2c, Syslog, SMTP • IPMI v2, RMCP • Alerts are sent using email, and/or SNMP traps when any monitored environmental condition exceeds a user-specified range or a serial port is connected or disconnected. -
Page 11: Materials
NTI SERIMUX SERIES SSH CONSOLE SWITCH Materials Materials Supplied with this kit: SERIMUX-S-x Manual CD IEC Power cord 5 Foot RJ45-to- 4-#10-32 X ¾” Pan Head Screws Quick Start Guide and Administrator’s 4-#10-32 Cage Nuts (country specific) RJ45 Cat5 Note... -
Page 12: Default User Name And Password
NTI SERIMUX SERIES SSH CONSOLE SWITCH DEFAULT USER NAME AND PASSWORD root The default user name is (lower case letters only). The default password is (lower case letters only). -
Page 13: Features And Functions
NTI SERIMUX SERIES SSH CONSOLE SWITCH FEATURES AND FUNCTIONS Front and Rear Views of SERIMUX-S-16DP 9 10 11 12 13 14 15 16 Alert SERIMUX SECURE Network Te chnologies Inc 2 3 4 5 6 7 8 Alert PWR 2... -
Page 14: Installation
INSTALLATION This NTI switch was designed to be mounted to a rack or to set on a desktop. It includes rack mount ears to make attachment to a rack easy, and rubber feet to be applied to the bottom of the case if it will instead sit on a flat surface. -
Page 15: Cable Connections
(supplied) detailed in Appendix C (page 87) between the device port on the serial user device or host device and the RJ45 connector. An NTI RJ45MF-RS232-CO serial crossover adapter has been provided for connection of one DCE type device. More adapters can be purchased separately. -
Page 16: Dual Power Option
Figure 5- Power connections for SERIMUX with Dual Power option DC Power Option The SERIMUX-S-x-48V has connections on the rear for a user-supplied 48VDC power supply. This is typically used when the SERIMUX is installed in a Telecom environment. The SERIMUX-S-x-48V will accept a DC power source between 36~72VDC (48VDC nominal), positive or negative polarity. -
Page 17: Connect Sensors
NTI SERIMUX SERIES SSH CONSOLE SWITCH Connect Sensors The SERIMUX-S-x has two RJ45 connectors for attachment of up to two sensors to monitor environmental conditions. Sensors can be connected to measure temperature (ENVIROMUX-STS), humidity (ENVIROMUX-SHS), temperature and humidity (ENVIROMUX-STHS), temperature and wide range humidity (ENVIROMUX-STHS-99). A sensor can also be connected to detect liquids (ENVIROMUX-LDSx-y). -
Page 18: Initial Startup
At “password” type < > (all lowercase letters) and press <Enter>. Note: If the administrator password has been changed and is not known, contact NTI for instruction on resetting the SERIMUX to defaults. A shell prompt will be displayed “-sh-2.05b# “ . From this point you can either access the SERIMUX configuration menu, or access a submenu for either making a port connection or viewing the status of connected sensors. -
Page 19: Figure 9- Submenu For Port Connect Or Sensor Monitoring
NTI SERIMUX SERIES SSH CONSOLE SWITCH B. To make a connection with a host: Type <portmenu> to open a submenu listing the “Port Connect Menu” and the “Sensor Monitor Men”. Figure 9- Submenu for Port Connect or Sensor Monitoring Enter <1> +<Enter> to proceed to the port connection menu. -
Page 20: Figure 11- Sensor Monitoring
NTI SERIMUX SERIES SSH CONSOLE SWITCH C. To view sensor status: Type <portmenu> to open a submenu listing the “Port Connect Menu” and the “Sensor Monitor Men” (see Figure 9). Enter <2> +<Enter> to proceed to the Sensor List. Figure 11- Sensor Monitoring From the Sensor Monitor menu you will view a list of all sensors monitored by the SERIMUX. -
Page 21: Connect Direct To Serial Port From Command Line
NTI SERIMUX SERIES SSH CONSOLE SWITCH Connect Direct to Serial Port from Command Line To connect directly to a serial port from the command line, the SERIMUX must first be connected to the Ethernet (page 7). Connect Via Telnet To open a telnet session to a serial port, Issue the following command from the command line: telnet <Serimux-S hostname or IP address>... -
Page 22: Using The Serimux Console Switch
: root (all lowercase letters) To change the administrator administrator password : nti (all lowercase letters) password, see page 28. • Users login using a password set by the administrator or a user with administrative privileges. FYI: Users may be granted administrative access rights by any user with administrative access rights. -
Page 23: Login As The Administrator
Note: This will only access the SERIMUX if the administrator password has not yet been changed from "nti". Note: If the administrator password has been changed and is not known, contact NTI for instruction on resetting the SERIMUX to the default password “nti”. -
Page 24: Port Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Management From the Configuration menu, press <1> to open the “Port Management” menu. Figure 13- Port Management- complete ports list All ports, whether devices are connected to them or not, are listed in the Port Management menu. -
Page 25: Common Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Common Settings Before making changes to settings for specific ports, it would be quicker to apply settings to the “common” port, by pressing <o> from the Port Management menu. This will open a menu (below) where the settings most common to the greatest number of ports can be configured. -
Page 26: Serial Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Setting Valid Entries Port Name the name as it will appear in the port list- max. 50 characters. Port Enable Enable or Disable. If disabled, no user can connect to it. Port Type Host : for device connection... -
Page 27: Port Logging
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Logging From the Port Management menu, with Port x (any port) selected, press <3>-<Enter> to open the “Port Logging” menu. Port logging is used to record data received on the serial port. Figure 18- Port Management-port logging for Port 1 Only 1 menu item will be displayed, indicating that port logging is disabled. -
Page 28: Modem Setting
NTI SERIMUX SERIES SSH CONSOLE SWITCH Modem Setting From the Port Management menu, with Port x (any port) selected, press <4>-<Enter> to open the “Modem Setting” menu. Figure 19- Port Management-modem setting for Port 1 If the port is set for a port type “Dial-In User” (see page 17), it will require a modem to be connected. Refer to your modem instructions for appropriate settings to be applied here. -
Page 29: Event Notification
NTI SERIMUX SERIES SSH CONSOLE SWITCH Authentication options that include Radius, TacacsPlus, Kerberos, and LDAP will require additional configuration when selected. Figure 21- Authentication server configuration Apply the appropriate authentication server IP addresses and additional configuration settings for your authentication method of choice. -
Page 30: Port Access List
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Access List From the Port Management menu, with Port x (any port) selected, press <7>-<Enter> to open the “Port Access List”. Figure 23- Port Management-port access list for Port 1 Each port can have individual user names and group names (pre-defined groups of users- see page 45) added to it that the connected device will recognize as valid users. -
Page 31: Port Disconnect
NTI SERIMUX SERIES SSH CONSOLE SWITCH To remove a group from the list, press <2> (from the Port Access List menu), then <r> (for remove). You will be prompted for the group number in the list to remove. Enter the group number and press <Enter> to remove it from the list. -
Page 32: Apply Common Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Apply Common Settings To quickly apply settings to a port that are commonly used by many other ports, the “Apply Common Setting” option is provided. Once common settings are configured (page 17), this feature will help to save time in configuring a port for use. -
Page 33: Device Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH Device Management From the Configuration menu, press <2> to open the Device Management menu. The Device Management menu lists each of the sensors that are being monitored by the SERIMUX. The menu lists (left to right) the sensor number, the RJ45 connector it is attached to (0 means it is an internal sensor), the type of sensor connected, and the user defined descriptions applied to the sensor. -
Page 34: Remove A Sensor
NTI SERIMUX SERIES SSH CONSOLE SWITCH Remove a Sensor Figure 31- Remove a Sensor To remove a sensor, press <r> at the cursor to be asked to “SELECT SENSOR TO REMOVE:” . Enter the connector number and press <Enter>. Unplug the sensor from the SERIMUX. -
Page 35: Sensor Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Sensor Settings The options that can be configured under “Sensor Settings” will vary depending on the type of sensor selected. As you can see in Figure 33 and Figure 34, the criteria can vary considerably. -
Page 36: Alert Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Alert Settings Under Alert Settings, the sensor can be configured to send alert messages or not. If enabled, various criteria for alert messages can be defined. Figure 35- Sensor alert settings Field Description Disable Alert... -
Page 37: Data Logging
NTI SERIMUX SERIES SSH CONSOLE SWITCH Data Logging Under Data Logging, the sensor can be configured to record readings reported by the sensor and to record syslog messages of alert events. Figure 36- Sensor Data Logging Field Description Data Log Enable... -
Page 38: Sensor Authentication
NTI SERIMUX SERIES SSH CONSOLE SWITCH Sensor Authentication Sensor Authentication Type: Choose between Local or none. None means the sensor can be viewed by any user. Local means the sensor can be viewed by only the users/groups in the sensor access list (page 29). -
Page 39: Network Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH Network Management From the Configuration menu, press <3> to open the Network Management menu. The Network Management menu provides selections to open configuration menus for the “Ethernet 1” and “Ethernet 2” ports on the SERIMUX as well as web server configuration and TCP keepalive settings. -
Page 40: Figure 42- Network Management- Ipv6 Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Figure 42- Network Management- IPv6 settings Be sure to apply valid information in the fields provided. Default Settings include: IP address: 192.168.1.91 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.1 The Ethernet Mode in the IPv4 settings can be set for :... -
Page 41: Server Configuration
NTI SERIMUX SERIES SSH CONSOLE SWITCH Server Configuration The Server Configuration section is provided to apply settings for Web Server connection and behavior as well as the SMTP server for e-mail functions. From the Network Management menu, press <3>-<Enter> to open Server Configuration menus. -
Page 42: Figure 47- Network Management- Nfs Server Configuration
NTI SERIMUX SERIES SSH CONSOLE SWITCH Figure 47- Network Management- NFS server configuration Figure 48- Network Management-SNMP configuration See table on page 35 for configuration values. -
Page 43: Snmp
NTI SERIMUX SERIES SSH CONSOLE SWITCH Server Configuration Settings Setting Value Web Server Web Page Refresh Rate (sec) 0-999 seconds Login Timeout (minutes) 0-999 minutes Authentication Type Many including local, Radius, Tacacs, TacacsPlus, Kerberos, LDAP, or combinations HTTP Port 0-65535... -
Page 44: Administration Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Administration Settings From the Configuration menu, press <4>-<Enter> to open the “Administration Settings” menu. The Administration Settings menu provides selections to configure the SERIMUX name, root password, date and time, security, and syslog. It also includes a selection for performing firmware updates. -
Page 45: Unit Settings->Date Time Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Figure 52-Unit Settings-change password Be sure to press “Save” to have the change take effect after the next reboot of the SERIMUX, or “Save & Apply” to have the change take effect immediately. NOTE: The password entered will be case sensitive so be sure to note what characters are upper or lower case if any are alphabetical. -
Page 46: Figure 54-Unit Settings-Ntp Server Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Figure 54-Unit Settings-NTP Server settings To synchronize the SERIMUX with an NTP Server, set the “Enable NTP” value to “Enable”. Enter values for: • IP address of the NTP Server • Frequency (how often, in hours (0-99), the SERIMUX will query the NTP Server) •... -
Page 47: Security Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Security Settings Security settings enable the administrator to configure the CLI (Command Line Interpreter) authentication type to be used to connect with serial devices through the web interface or through the SERIMUX shell. Choose from various common CLI authentication methods. -
Page 48: Syslog
NTI SERIMUX SERIES SSH CONSOLE SWITCH Configuration options for CLI authentication are the same as those shown under Port authentication (page 21), except that an additional option for setting the CLI Config menu timeout is present. The CLI Config Menu Timeout is the time period (in minutes) before an idle user will be automatically exited from the configuration menu and returned to their point of connection when logging into the SERIMUX. -
Page 49: Figure 60- Administration Settings-System Log Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Figure 60- Administration Settings-System Log settings Figure 61- Administration Settings-Syslog-ng Configuration Setting Value System Log Settings Syslog Location System Memory (no options as of this printing) Syslog Facility Local0 (no options as of this printing) -
Page 50: Firmware Update
To update the firmware: 1. Download the firmware file from the NTI website to either a USB Flash Drive, to your tftp server, or to an NFS drive. Be sure to take note of the location on your CPU as to where it will be. -
Page 51: Figure 64- Firmware Update- Confirm To Perform Update
NTI SERIMUX SERIES SSH CONSOLE SWITCH The update firmware path, when using a tftp server will be: /tmp/serimux_ssh_vx_xx.tar.gz When using a tftp server, before using the Update Firmware command, run the following commands from the shell prompt: cd /tmp tftp -r serimux_ssh_v1_10.tar.gz -g <tftp-server-ip>... -
Page 52: User Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH User Management From the Configuration menu, press <5>-<Enter> to open the “User Management” menu. The User Management menu provides selections to configure user access to the SERIMUX configuration menus and to the devices attached to the SERIMUX. -
Page 53: Access Group
If a change is made to the user name, group, or shell, the password for that user must also be provided (whether it is a new password or an existing password). Otherwise the user will automatically be assigned the default password of “nti” by the SERIMUX to login the next time. -
Page 54: Administrative Info
NTI SERIMUX SERIES SSH CONSOLE SWITCH Administrative Info From the Configuration menu, press <6>-<Enter> to open the “Administrative Info” menu. The Administrative Info menu provides selections to view pieces of information quickly that are useful to review the settings and status of the SERIMUX. The administrator can view the System Log to review user access and changes to the SERIMUX, network, Ethernet, and system settings, and review the status of each of the SERIMUX ports. -
Page 55: System Information
NTI SERIMUX SERIES SSH CONSOLE SWITCH System Information The System Information list displays the model name of the SERIMUX, the firmware version in the SERIMUX, the MAC addresses of the Ethernet ports, the date in the system, and syslog status. From the Administrative Info menu, press <2>-<Enter> to display the “System Information”... -
Page 56: Port List
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port List The port list displays the status of device ports on the SERIMUX. It provides a quick overview of names of all users and hosts connected, the port serial settings, port escape sequence, protocol, and port numbers. -
Page 57: Serial Control-Users
NTI SERIMUX SERIES SSH CONSOLE SWITCH SERIAL CONTROL-USERS Operators with “User” rights can connect only to accessible ports as defined by the administrator. A list of those ports will be displayed with a successful login. To login, using a serial terminal or an emulator (e.g. Windows HyperTerminal), connect the terminal to the SERIMUX at an accessible user port (users may have limited access through specific “user”... -
Page 58: Figure 79- Sensor List With Current Readings
NTI SERIMUX SERIES SSH CONSOLE SWITCH From the Port Connect Menu the user can perform the following functions: Function Keystroke Connect to host <xx>-<Enter> (where xx is the port number) Logout <X>-<Enter> , then <Y> to confirm FYI: The port index numbers are 1 and 2-digit decimal numbers. If the wrong number is entered, press the <Esc> key to remove it. -
Page 59: Device Discovery Tool
DEVICE DISCOVERY TOOL In order to easily locate NTI Devices on a network, the NTI Device Discovery Tool may be used. A link to the Discovery Tool is provided on the web page that appears when you insert the instruction manual CD provided into your CD ROM drive. Either click on the link or browse the CD to locate the NTIDiscover.jar file. -
Page 60: Web Interface
Note: The browser must be configured to accept cookies in order for the user to successfully make use of the web interface. Note: If the administrator password has been changed and is not known, contact NTI for instruction on resetting the SERIMUX to defaults. -
Page 61: Menu Overview
NTI SERIMUX SERIES SSH CONSOLE SWITCH Menu Overview The SERIMUX menu may be navigated using the left mouse button. The list below summarizes the function of each topic in the menu for quick reference. Connect Port- Click to return to the Ports List, a listing of all Host ports. Click any port to make a connection to that port. -
Page 62: Main Menu And Port List
NTI SERIMUX SERIES SSH CONSOLE SWITCH Main Menu and Port List The first screen displayed in the Web Interface after a valid login shows the main menu on the left side and a complete port list on the right. The Port List details, from left to right: •... -
Page 63: Figure 83- Ssh Port Connection Via Java Applet
NTI SERIMUX SERIES SSH CONSOLE SWITCH Note: The user must click inside the window before typing any characters. A host using SSH v.2 protocol will require user name and password to be entered in the above window for connection This window will not appear when authentication is disabled. -
Page 64: Figure 85- Serial Connection-"Offline"-Properly Exited
NTI SERIMUX SERIES SSH CONSOLE SWITCH To properly exit a completed serial connection, type <Ctrl>-<z> to open the port escape menu, then press <x> to exit the serial connection. The green “online” in the bottom right corner of the window will change to a red “offline”. -
Page 65: Port Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Management Port Configuration The Port Configuration page is used to setup all of the criteria necessary to communicate between the user and host devices. Figure 87- Port Configuration page Under “Port Management” in the main menu, select “Port Configuration” to display a ports list. Click on a port to display the current configuration settings for the selected port and the configurable setting categories. -
Page 66: Port Configuration->Serial Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Settings (Cont’d) Setting Description TCP Port Number Assign number used for TCP communication Be careful not to assign the same number used by another port, or the second port with a duplicate TCP port assignment will not work. -
Page 67: Port Configuration->View Port Log
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Configuration->View Port Log Select to view log records for selected port. The viewing window will display up to 1K bytes of records. To view the next 1K bytes, press the “Next>>” button. The SERIMUX will record all data passing through the port. -
Page 68: Port Configuration->Event Notification
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Configuration->Event Notification If desired, an e-mail and/or SNMP message can be sent each time a port is connected to, and / or disconnected from. recipient’s can be the same for each event, or different. Simply enter valid e-mail addresses and SNMP addresses and make sure the SERIMUX web server is properly configured to send e-mails (page 70). -
Page 69: Port Configuration->Disconnect Port
NTI SERIMUX SERIES SSH CONSOLE SWITCH Port Configuration->Disconnect Port To quickly disconnect any communication through a port in use, press the “Disconnect Port” button. Figure 97- Disconnect Port button With the selections made in the Port Configuration page (and on any other pages throughout the Web Interface), press “Save” to save the changes without immediately applying them. -
Page 70: Copy Paste Port
NTI SERIMUX SERIES SSH CONSOLE SWITCH Copy Paste Port The Copy Paste Port page is provided in the event the settings in the Common Port Configuration aren’t what you need but the settings of another port are. This provides yet another way to save time in configuring the SERIMUX. -
Page 71: Sensor Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH Sensor Management Sensor Management provides the ability to monitor internal sensors (temperature, fan speed, and the power supply (only in units with dual power supplies)) as well as add external sensors. External sensors connect through RJ45 connectors to the ports on the SERIMUX labeled “RJ45 Sensors”. -
Page 72: Figure 100- Sensor Status Details
NTI SERIMUX SERIES SSH CONSOLE SWITCH The user can see the sensor measurements by clicking on the sensor's name in the Summary page. A web page will be displayed for the selected sensor, showing the type of sensor, the name, value of the reading (if it is an analog value it will be also displayed graphically), the threshold settings (in red) and the current reading (in green) of a selected sensor. -
Page 73: Adding A Sensor
NTI SERIMUX SERIES SSH CONSOLE SWITCH Adding a Sensor If both of the “RJ45 Sensor” connectors on the SERIMUX are not in use by RS485 type sensors (these would be automatically sensed and added to the Summary Page), then a contact sensor can be added. -
Page 74: Configure A Sensor
NTI SERIMUX SERIES SSH CONSOLE SWITCH Configure a Sensor Many parameters can be defined to determine how or if a sensor reports data to the user. To configure those parameters, click on a sensor listed on the Sensor Configuration page to open the Common Sensor Configuration page for that sensor. -
Page 75: Sensor Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Sensor Settings Sensor Description: Each sensor can be given a unique description. Descriptions can be from 1-80 characters in length and include most characters. They cannot contain a backslash ( \ ) or quotation mark ( " ). -
Page 76: Sensor Log Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Notify Again: Specifies the amount of time before an alert message is repeated. The repeated alert can be set to occur from 1- 999 seconds, minutes, or hours. Notify when return to normal: The user can also be notified when the sensor readings have returned to the normal range by enabling the "Notify when return to normal"... -
Page 77: Network Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH Network Management IP Configuration The IP Configuration page is where the settings are applied to enable the SERIMUX to connect to the local LAN or Internet. Only one connection is necessary, but two can be configured for remote SERIMUX access redundancy. -
Page 78: Server Configuration
NTI SERIMUX SERIES SSH CONSOLE SWITCH Server Configuration The Server Configuration page is where the settings are applied to enable the SERIMUX to send e-mail and SNMP messages to users and to establish behavioral characteristics for the web interface. Figure 107- Server Configuration Page Under “Network Management”... -
Page 79: Snmp
NTI SERIMUX SERIES SSH CONSOLE SWITCH Setting Value SNMP Configuration SNMP Enable Enable or Disable System Name Up to 50 characters Contact Up to 50 characters Location Up to 50 characters Community 1 Name– example “private” (up to 50 characters) -
Page 80: Administrative Settings
Note: The password entered will be case sensitive so be sure to note what characters are upper or lower case if any are alphabetical. The password characters are displayed as ‘*’ (asterisk) characters while entering them. Note: If the administrator password is not known, contact NTI for instruction on resetting the SERIMUX to defaults. -
Page 81: Unit Settings->Date And Time Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Unit Settings->Date and Time Settings Figure 112- Unit Settings page, date and time The Date and Time of the SERIMUX (Administrative Settings->Unit Settings->Date & Time Settings) can be either manually setup to use an onboard clock or set to be synchronized with an NTP server. -
Page 82: Security Settings
NTI SERIMUX SERIES SSH CONSOLE SWITCH Security Settings The Security Settings page enables the administrator to configure the CLI (Command Line Interpreter) authentication type to be used to connect with serial devices. Choose from many common CLI authentication methods. Figure 113- Security Settings page Under “Administrative Settings”... -
Page 83: Syslog
NTI SERIMUX SERIES SSH CONSOLE SWITCH Syslog The Syslog page contains the settings that effect the location, size, name, and destination when downloaded of the System Log. The System log displays a listing of all users that have logged in and out of the SERIMUX, providing the date and time of their login and logout. -
Page 84: Firmware Update
NTI SERIMUX SERIES SSH CONSOLE SWITCH Firmware Update The Firmware Update page is used to introduce firmware files that provide the architecture of the user interface. Occasionally new features or changes to existing features will be introduced and new firmware with these changes will be made available on the NTI website (http://www.networktechinc.com/srvsw-term-ssh.html). -
Page 85: User Management
NTI SERIMUX SERIES SSH CONSOLE SWITCH To see the effects of the new firmware file the SERIMUX must be rebooted using either of three methods: use the “Reboot” feature in the main menu (see page 82) power cycle the SERIMUX press the “Reset”... -
Page 86: Figure 119- User Configuration
If a change is made to the user name, group, or shell, the password for that user must also be provided (whether it is a new password or an existing password). Otherwise the user will be assigned the default password of “nti” to login the next time. -
Page 87: Access Groups
NTI SERIMUX SERIES SSH CONSOLE SWITCH Access Groups The Access Groups page lists the assigned access group names. Access groups are used to provide a quick method of defining which users have accesses to devices. Once access group names are assigned, users are specified to be included in those groups. -
Page 88: Administrative Information
NTI SERIMUX SERIES SSH CONSOLE SWITCH Administrative Information System Log The System Log page displays a listing of all user access to the SERIMUX, providing the date and time of their login and logout. It also displays when configuration changes are made. -
Page 89: Network Information
Figure 125- Network Information page Support From the SERIMUX web interface the user can quickly access the NTI website where a pdf copy of this manual and a link to the SERIMUX firmware download page can be found. The “Support Menu” includes two links;... -
Page 90: Reboot
NTI SERIMUX SERIES SSH CONSOLE SWITCH Reboot The Reboot page enables the user with administrative rights to easily reboot the SERIMUX as needed. Figure 127- Reboot page To use the Reboot page, select “Reboot” from the main menu. Press “Reboot” button to force the SERIMUX to log all users out and power cycle its processor. -
Page 91: Telnet Or Ssh Connection
NTI SERIMUX SERIES SSH CONSOLE SWITCH TELNET OR SSH CONNECTION The SERIMUX shell, configuration menu and port connection menu can be accessed using a Telnet or SSH client. Connect to the SERIMUX using a standard port configuration (23 for Telnet, 22 for SSH) and login as either the “root” user or any system user (page 77). -
Page 92: Reset Button
NTI SERIMUX SERIES SSH CONSOLE SWITCH RESET BUTTON The "RESET" button on the back of the SERIMUX may be used for power cycling the SERIMUX processor without actually power cycling the rest of the SERIMUX. Reset button Rear View of SERIMUX-S-16DP... -
Page 93: Interconnection Cable Wiring Method
If the suggestions above have been tried and the NTI Console Switch is still not functioning properly, a solution to the problem may be found on our website at http://www.networktechinc.com in our FAQ (Frequently Asked Questions) section, or, please call us directly at (800) 742-8324 (800-RGB-TECH) in the US &... -
Page 94: Appendix A - Serimux Port Characteristics
NTI SERIMUX SERIES SSH CONSOLE SWITCH Appendix A - SERIMUX Port Characteristics Every port is defined through the following parameters: Description Acceptable Value Default Value Number 1-4/8/16/24/32 Same (not changeable) Name Up to 50 characters “Port00” to “Port32” Type User or Host Host Baud rate–... -
Page 95: Appendix C- Cable Adapters
NTI SERIMUX SERIES SSH CONSOLE SWITCH Appendix C- Cable Adapters Four cable adapters are included with the SERIMUX with RJ45 connectors (to purchase more please contact NTI at (800) 742- 8324 (800-RGB-TECH) or (330) 562-7070). The following illustrations show cable adapter pin outs. - Page 96 NTI SERIMUX SERIES SSH CONSOLE SWITCH DB-25 Female Console Adapter (NTI P/N DB25F-RJ45F) DB-25 Female to RJ45 Pin Assignments RJ45 Signal DB-25F Signal Connected to Connected to Connected to Connected to Connected to Connected to Connected to DB-25 Male Modem Adapter (NTI P/N DB25M-RJ45F-C)
-
Page 97: Appendix D- Common Commands From Shell Command Line
System Log /var/run/databuf/ttyXRxx.data Port data buffering Mount for NFS /mnt/nfs Mount for USB /mnt/src SERIMUX Complete Configuration file (password is encrypted) /usr1/conf.tar.gz Appendix F- SERIMUX-S-x Default Network Settings Setting Purpose 192.168.1.91 IP address 255.255.255.0 Subnet Mask 192.168.1.1 Default Gateway Ethernet Pinouts The SERIMUX with RJ45 (8P8C) connectors uses a standard Ethernet connector that is a shielded and compliant with AT&T 258... -
Page 98: Specifications
NTI SERIMUX SERIES SSH CONSOLE SWITCH SPECIFICATIONS Description Specification Connectors RJ45 Female DTE configuration via RS232 Operating temperature 32°F - 100°F (0°C - 38°C) (17-90% non-condensing RH) Storage temperature -20°F - 140°F (-30°C - 60°C). (17-90% non-condensing RH) Power requirements... -
