- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Fax:330-562-1999 Aurora, OH 44202 INCORPORATED www.networktechinc.com ® VIDMUX Series SE-15V-xx-L/RS 4, 8, or 16 Port VGA Video-Only Switch Installation and Operation Manual MAN004 Rev Date 2/26/2007...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Rack-Mounting ................................3 To Mount to a Rack ..............................3 Installation..................................4 Cable Connections ..............................4 RS232 Control ................................4 Power Up Sequence..............................4 Local Control ................................. 5 Scan Mode................................ -
Page 4: Introduction
NTI VIDMUX VGA Video-Only Switch INTRODUCTION ® The VIDMUX VGA video switch enables up to 4/8/16 video sources to be connected to a single video monitor, projector or plasma screen. VIDMUX Switches are made with either local video connection control with push buttons on the VIDMUX switch, or with remote video connection control with an RS232 connection port on the VIDMUX switch. -
Page 5: Features And Functions

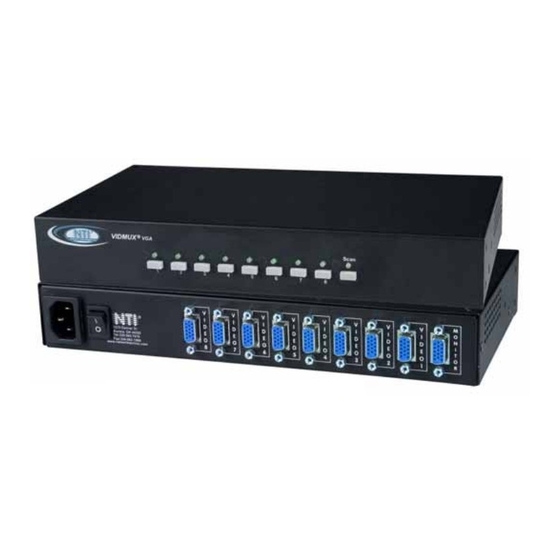

NTI VIDMUX VGA Video-Only Switch FEATURES AND FUNCTIONS SE-15V-8-L SE-15V-8-RS (Front View) (Front View) VIDMUX VIDMUX Networ k Techno logies Inc Network Technologies Inc RS232 Scan REAR VIEW OF SE-15V-8-RS 1275 Danner Dr Aurora, OH 44202 Tel:330-562-7070 Fax:330-562-1999 www.networktechinc.com IEC Cord Connector- for attachment of the country-specific line cord Power switch- used to power the VIDMUX ON/OFF RS232- 9DB female connector- for attachment of a serial cable for RS232 control (only on models ending in “-RS”) -
Page 6: Rack-Mounting
NTI VIDMUX VGA Video-Only Switch RACK-MOUNTING This NTI switch was designed to be mounted to a rack or to set on a desktop. It includes rackmount ears to make attachment to a rack easy, and rubber feet to be applied to the bottom of the case if it will instead sit on a flat surface. If this will sit on a flat surface, simply apply the rubber feet to the bottom of the case in each of the 4 corners. -
Page 7: Installation
NTI VIDMUX VGA Video-Only Switch INSTALLATION REAR VIEW OF SE-15V-8-RS 15HD female Video Connector 1275 Danner Dr Aurora, OH 44202 Tel:330-562-7070 Fax:330-562-1999 www.networktechinc.com 9DB female Serial Connector 15HD male 15HD male Video Connector VEXT-3-MM (Supplied) Multi-Scan Monitor Existing cable 9DB male Serial Connector Multi-Scan Monitor... -
Page 8: Local Control
As long as the VIDMUX is not in Scan Mode (below), the user will remain connected until another button in pressed. VIDMUX Network Technologies Inc Scan Figure 4- View of Front of VIDMUX with Local Control Scan Mode Models with Local Control also have the feature Scan Mode. -
Page 9: Baud Rate
NTI VIDMUX VGA Video-Only Switch Baud Rate The baud rate can be changed either using the RS232 Command Protocol (page 8) or by powering down the unit, changing the 8 position RS232 dip switch on the front of the VIDMUX, and then powering back up. The table below shows how to set the baud rate. -
Page 10: Figure 3- Rs232 Connection With Matrix-Y-1 Cable
NTI VIDMUX VGA Video-Only Switch Note: In order to connect multiple VIDMUX units together a Matrix-Y-1 cable must be used. (See Fig. 5.) See Fig. 6 for the pinout of the Matrix-Y-1 cable. The Matrix-Y-1 cable is available from Network Technologies Inc. RS232... -
Page 11: Command Protocol
NTI VIDMUX VGA Video-Only Switch Command Protocol CPU controller commands supported by the unit are defined below. All commands should be terminated with a <CR> (carriage return). All characters in the command string should be upper case, and all numbers below 10 should have a leading 0 (ex: 1 = 01). -
Page 12: Autostatus
NTI VIDMUX VGA Video-Only Switch Autostatus When Autostatus is enabled, any output-to-input connection change in the VIDMUX will cause an Autostatus message to be sent via RS232 to the administrator. The format of the message will be "pc SW,OP:IP<CR>" Example of an Autostatus message: pc 01,01:04<CR>... -
Page 13: Sertest- Rs232 Interface Test Program
NTI VIDMUX VGA Video-Only Switch SerTest- RS232 Interface Test Program This software allows a user to test the functions of an NTI server switch, video switch, matrix switch or Multi-user/Multi-platform switch RS232 interface. The program SERTEST along with the Matrix Switcher's Control Program (page 9) is installed from the CD packaged with this switch. -
Page 14: Specifications For Straight-Through Rs232 Serial Cable
19 x 6 x 1.75 TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. -
Page 15: Index
NTI VIDMUX VGA Video-Only Switch INDEX Autostatus, 9 RS232 connection, 4 baud rate, 6 RS232 Control, 5 cable connections, 4 Scan Mode, 5, 9 Matrix Switcher's Control Program, 9 SerTest, 10 Rackmount ears, 3 Troubleshooting, 11 RS232 cable, 5, 11 unit address, 6 RS232 Commands, 8 WARRANTY INFORMATION...
