Adding a Compact-flash Card

A PC card slot is located on the front panel of the SERIMUX. (See Fig. 11) To install and configure the compact-flash card on the
SERIMUX, do the following.
1. Insert the card into the PC card slot.
2. Access the web interface.
3. Under the PC card heading choose Configuration.
4. Choose Discover a new card.
The SERIMUX searches for a PC card and displays a configuration menu.
5. Enter the appropriate parameters in the configuration menu.
N T I
S E R I M U X
R T M S E C U R E
N e t w o r k T e c h n o l o g i e s I n c
Note: Always select the Stop card service button before removing a PC card.

Configuring the Compact-flash Card

• Total data size to be used: Enter the amount of memory to be assigned to the compact-flash card for configuration
• Delete all files in ATA/IDE Fixed Disk Card: Select this button to clear the compact-flash card of all files.
• Format ATA/IDE Fixed Disk Card: The options are EXT2 or FAT formats.
• Export configuration to PC card: Exports the current configuration to the compact-flash card.
• Import configuration from PC card: Imports the last saved configuration file from the compact-flash card.
• Import configuration except IP configuration: Imports the last saved configuration file from the compact-flash card,

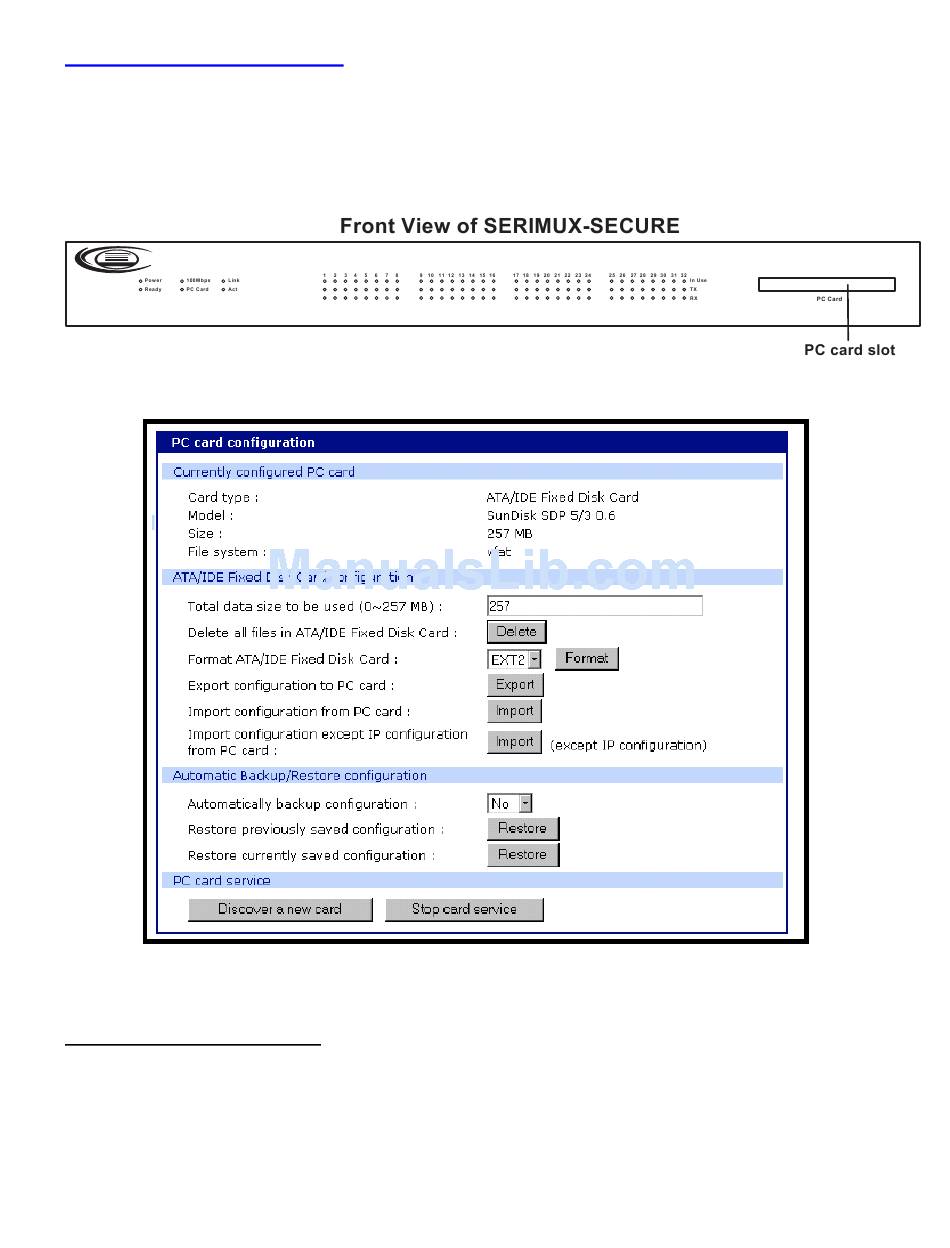

Figure 11- Location of PC card slot

Figure 12- PC card configuration menu

files.
Select the format option and then select the Format button.
excluding the IP settings.
12
