Configuring SNMP

To configure the SERIMUX for SNMP do the following:
1. Access the SERIMUX web interface.
2. Under the Network heading, choose SNMP configuration.
3. Fill in information for the MIB-II system objects section and choose Yes under EnableAuthenTrap.
• sysContact: Identity of the contact person managing the MIB-II system.
• sysName: The name identifying the system. By convention, this is the fully qualified domain name of the SERIMUX
unit.. An example is:SERIMUX@companyname.com.
• sysLocation: The physical location of the unit such as Room 264 or Engineering Lab.
• sysService (Read only): A series of values, separated by commas, indicating the set of services the system provides.
• EnablePowerOnTrap: Determines whether the SNMP agent generates a trap each time the SERIMUX is started.
• EnableAuthenTrap: Indicates whether the SNMP agent process is permitted to generate authentication failure traps.
• EnableLinkUpTrap: Determines whether the SNMP agent generates a trap each time the network connection comes
Note: Trap values override all other configuration information, meaning all other authentication failure traps can be
disabled with this setting.
4. Enter Access control settings.
• IP Address: Defines what applications can access the SERIMUX SNMP agent to exchange information and control
actions. If no IP addresses are listed, any application can access the SNMP agent.
• Community: The options are public or private.
• Permissions: The options are Read only or Read/Write.
5. Enter Trap receiver settings.
• IP Address: Enter the IP address of the device receiving the trap alerts.
• Community: The options are public or private.
• Version: Choose the SNMP version, either version 1 or version 2c.
6. Choose Save & apply.
By default the SERIMUX only supports Application (7) service level.
up.

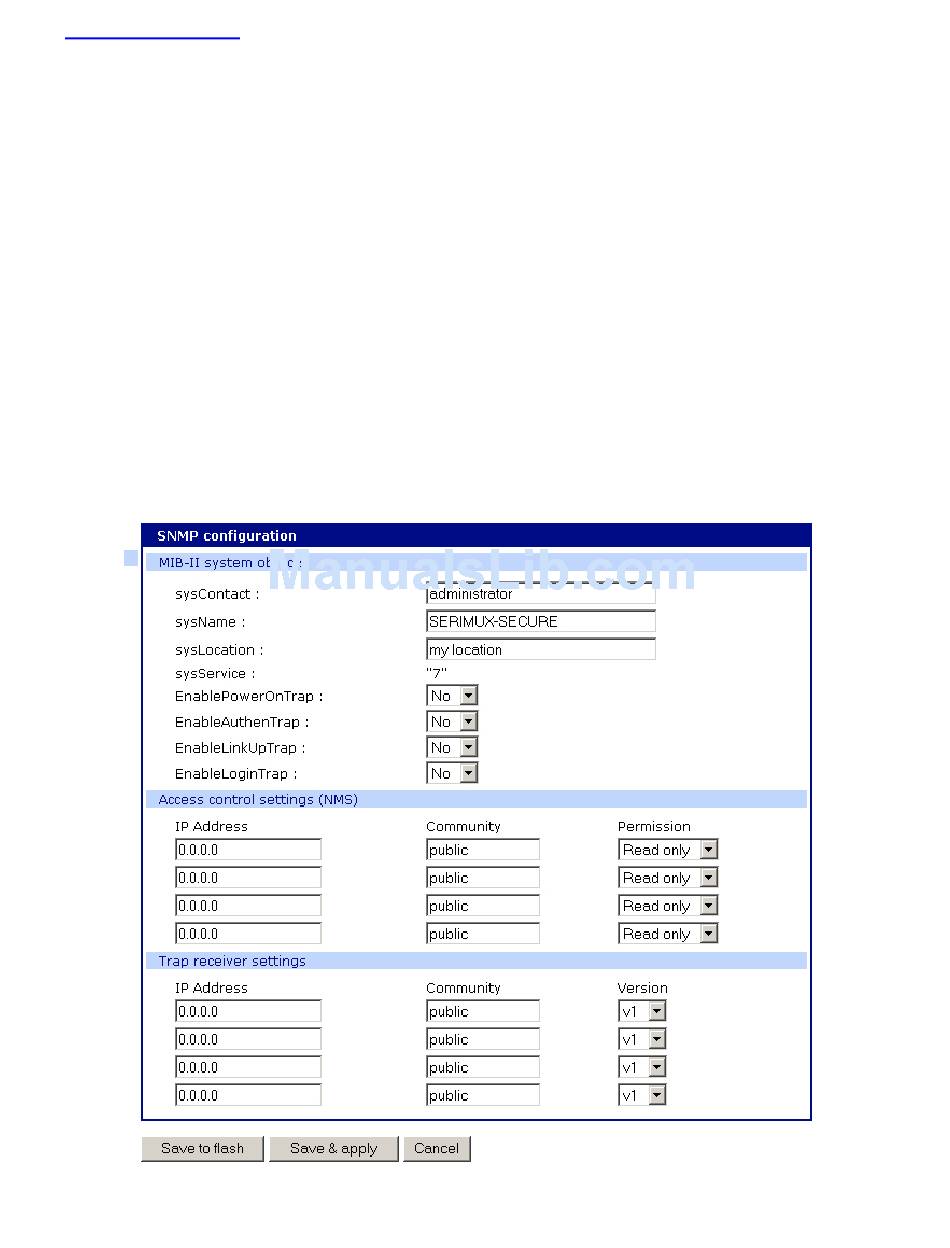

Figure 32- SMNP configuration menu

27
