Summary of Contents for NTI SE-4K18GB-4RS

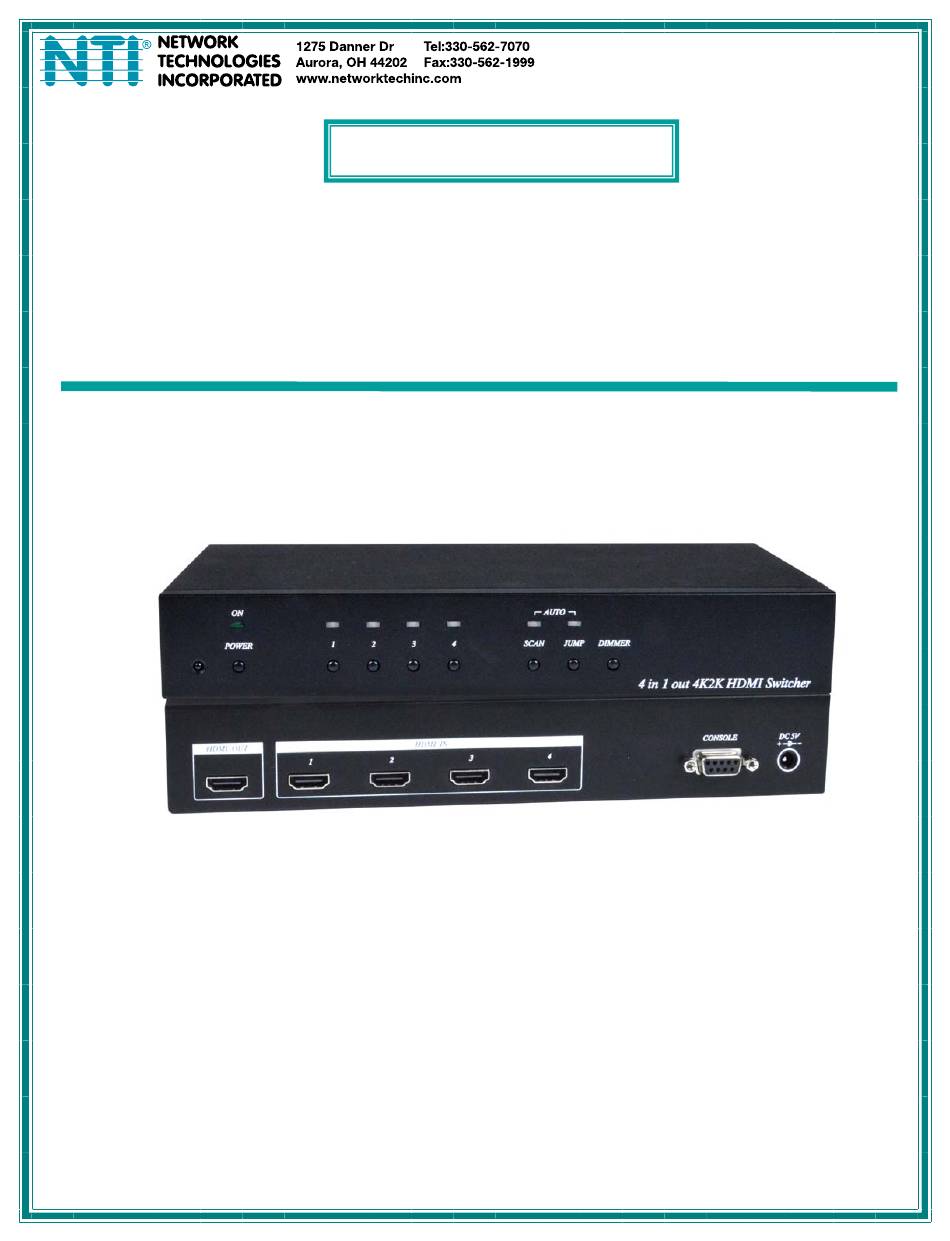

- Page 1 ® VIDMUX Series SE-4K18GB-4RS 4K@60Hz 4 x 1 HDMI Switch Installation and Operation Manual MAN353 Rev Date 10/8/2019...
- Page 2 TRADEMARK VIDMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2019 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

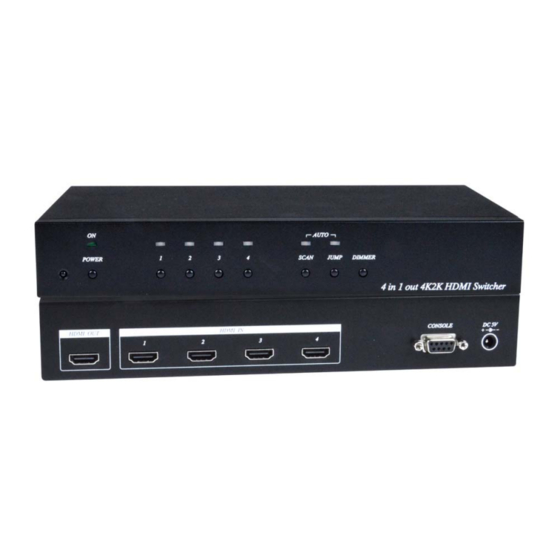

- Page 3 SE-4K18GB-4RS is an HDMI switch (Switcher) that enables multiple digital video and audio; sources to share one video display. A built in Auto Scan and Auto Jump function provides versatility for a variety of applications. The SE-4K18GB-4RS is perfect for home theater systems eliminating the hassle of manually plugging in different HDMI connectors to view different video sources.
-
Page 4: Installation
NTI 4K2K 60Hz HDMI 4X1 Switcher INSTALLATION (IR LED) LED Indications Label Status Meaning POWER ON/OFF System Ready/ Standby Flashing Panel Button or IR Remote Control has been disabled by RS232 connected PC AUTO SCAN ON/OFF Auto Scan activated/ disabled... - Page 5 NTI 4K2K 60Hz HDMI 4X1 Switcher Remote Control Features in Mode A Button Function Power Button System Activate/ Standby Select next available input and activate Auto Scan Up Arrow (△) Select previous available input and activate Auto Scan Down Arrow (▽) Select previous input and deactivate Auto Scan Left Arrow (◁)
-
Page 6: Led Brightness
NTI 4K2K 60Hz HDMI 4X1 Switcher LED Brightness LED brightness can be set at 4 different levels: 1. Minimum Brightness 2. Normal Brightness 3. Maximum Brightness 4. Auto-Changing Brightness By default, brightness is factory set at level 3. Under Auto-Changing brightness, press any switcher button or IR remote control button, change any video input channel, change any condition on the Switcher at all and the LED brightness will change to maximum brightness for 5 seconds and then return to minimum brightness. - Page 7 NTI 4K2K 60Hz HDMI 4X1 Switcher Virtual Remote Control via RS232 After issuing the RS232 command "KEYPAD", the commands sent will simulate using the IR Remote Control. The prompt will display "KEYPAD:". System Activate Virtual Remote Control Mode A/B Operation Description...
-
Page 8: Technical Specifications
NTI 4K2K 60Hz HDMI 4X1 Switcher System Standby Virtual Remote Control Mode A/B Operation Description Mode A Command Action System activate/standby. Switches back to COMMAND mode Display setting and input signal status Show all commands Mode B Command Action 1,2,3,4... - Page 9 NTI 4K2K 60Hz HDMI 4X1 Switcher RS232 Cable Pinout DB9 Male Signal DB9 Female Signal (Connect To (Connect To Switcher) TXD IN TXD OUT RXD OUT RXD IN...
- Page 10 4RS. 3. After the SE-4K18GB-4RS boots up, run the ISP.exe program, select the COM Port of the PC and click “Connect”. 4. After making connection, the "Link Device" will show the name of MCU. Browse to the se-4k18gb-rs_vxx.UP file on your...
-
Page 11: Warranty Information
NTI 4K2K 60Hz HDMI 4X1 Switcher 5. Click “Start” to perform the update. D:\se-4k18gb-rs_v00.UP 6. After the update is complete it will show “PASS” D:\se-4k18gb-rs_v00.UP WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com... - Page 12 NTI 4K2K 60Hz HDMI 4X1 Switcher...
