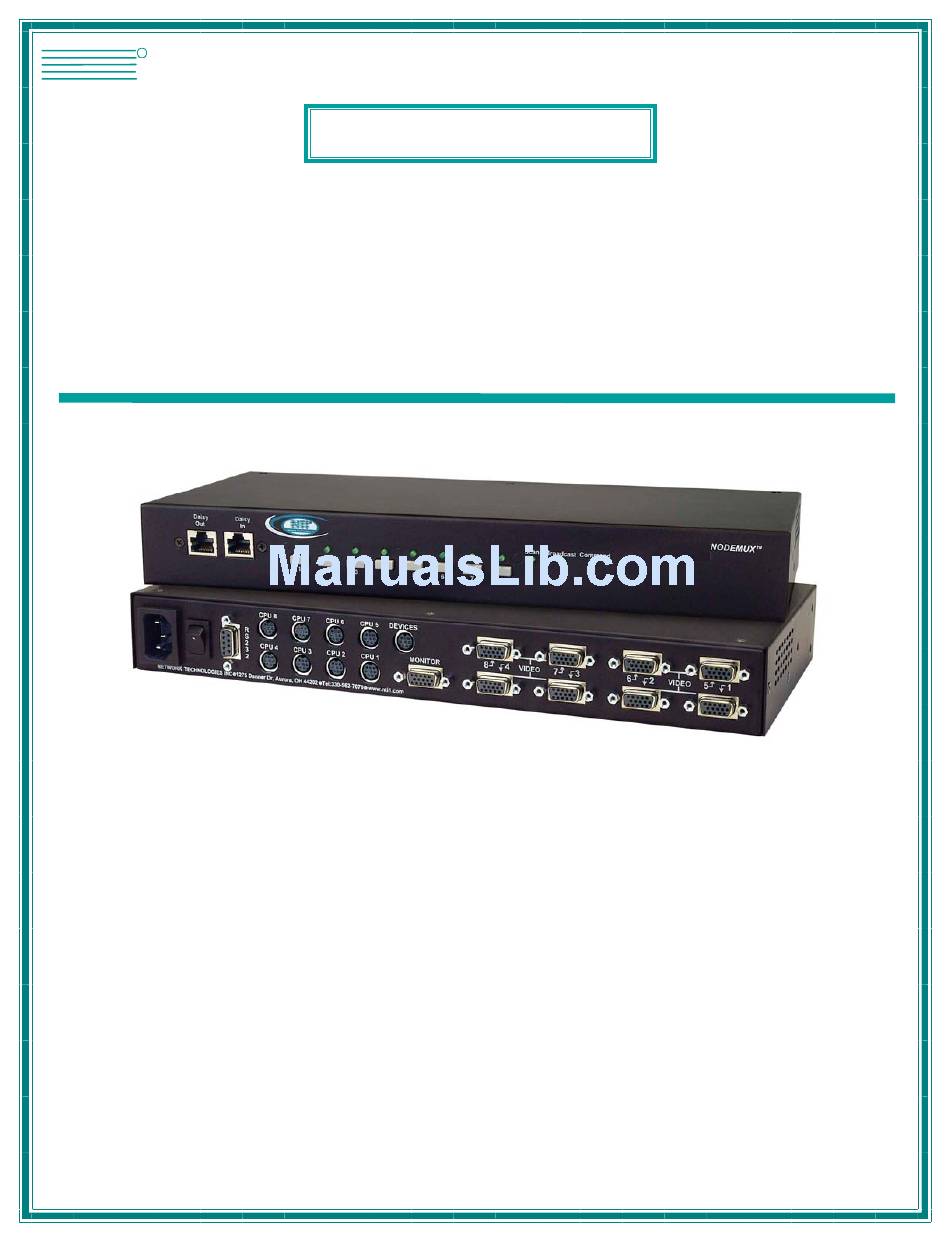

- Page 1 NETWORK 1275 Danner Dr TECHNOLOGIES Aurora, OH 44202 INCORPORATED Universal KVM Switch Installation and Operation Manual Tel:330-562-7070 Fax:330-562-1999 www.nti1.com ® NODEMUX Series ST-xU MAN064 Rev Date11/10/2005...
- Page 2 NODEMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries COPYRIGHT Copyright © 2005 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
Additional Modes Available With Security... 16 Administration Mode ... 16 Switch Configuration... 17 Configure for Cascading ... 17 Exit Switch Configuration Mode ... 18 Administrator Password... 18 User Name List ... 19 System Access List... 19 User Access Functions ... 19 OSD Command Mode ... - Page 4 Figure 18- Administration Mode menu ... 16 Figure 19- Switch Configuration Mode screen ... 17 Figure 20- Switch configured as a master with one slave attached ... 17 Figure 21- Administrator password change ... 18 Figure 22- Command Mode menus ... 20 Figure 23- Video and Device connections identified with port numbers...
-
Page 5: Introduction
CPU connected to the system. The microprocessor driven circuitry in the NODEMUX allows all CPUs to boot simultaneously without keyboard error. NOTE: A VGA multi-scan monitor must be used with this product unless an ST-xU-13W3 has been purchased which will also work with a multi-scan PC compatible SUN monitor. -
Page 6: Materials
MM indicates male-to-male connector, and FYI : "legacy" switches have hardware-based keyboard, mouse, and RS232 configuration "current" switches have software-based keyboard, mouse, and RS232 configuration Cables can be purchased from Network Technologies Inc by calling 800-RGB-TECH (800-742-8324) or (330)-562- 7070. VEXT-xx-MM for video interface... -

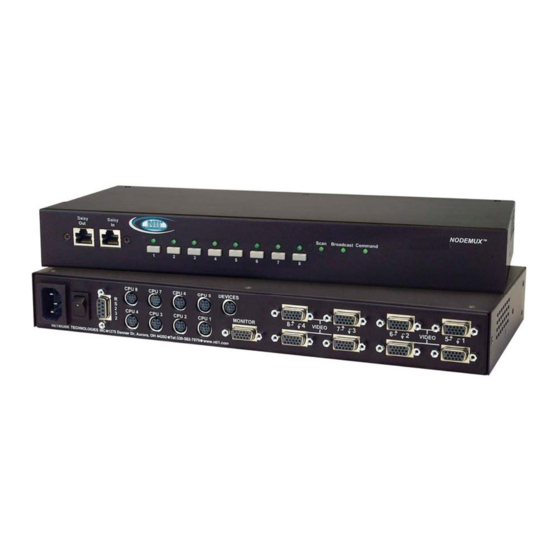

Page 7: Features And Functions
10. DEVICES- 8 pin miniDIN female connector- for connection of input device(s) (keyboard/mouse) 11. Daisy In/Out - for attaching RMT interface cables between slave switches and the master switch 12. RS232- DB9 female connector- for connecting RS232 serial control cable... -
Page 8: Rackmounting Instructions
RACKMOUNTING INSTRUCTIONS This NTI switch was designed to be mounted to a rack or to set on a desktop. It includes rackmount ears to make attachment to a rack easy, and rubber feet to be applied to the bottom of the case if it will instead sit on a flat surface. -
Page 9: Installation
If the NODEMUXs are being cascaded together, configure the dip-switches accordingly (see Tables 1 and 2 on page 11). If no dipswitches are present, see page 16 "Switch Configuration" to configure the switch for cascading. Connect the monitor to the port labeled MONITOR on the rear of the NODEMUX. (See Fig. 4.) -
Page 10: Figure 5- Connect A Ps/2 Keyboard And Mouse
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH Connect the input devices (keyboard/mouse) to the port labeled DEVICES on the rear of the NODEMUX following one of the methods detailed below: • PS/2 keyboard and mouse- attach the 8-pin male end of a VKTINT-1 to the NODEMUX at the DEVICES port. The keyboard will plug into the 6-pin purple female connector with the keyboard symbol on it (see Fig. -
Page 11: Figure 8- Connect A Ps/2 Cpu
NOTE: Make sure the CPU is connected to a CPU x port and a VIDEO x port with the same number. • PS/2 CPU- Connect a PS/2 CPU video port using a VEXT-xx-MM cable between a VIDEO x port on the ST-xU and the CPU. -
Page 12: Figure 10- Connect A Sun Cpu
• SUN CPU- Connect a SUN CPU video port using a VEXT-xx-MM cable with a 13W3M-15HDF adapter between a VIDEO x port on the ST-xU and the CPU. Connect the SUN CPU keyboard/mouse port using an SKTINT-xx-MM between a CPU-x port on the ST-xU and the CPU. -
Page 13: Figure 12- Connect A Touch-Screen Monitor To An St-8U-Ts-R
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH For Units with Touch-screen support (-TSO option) a. Connect the 15HD cable from the user monitor to the MONITOR port on the NODEMUX. Connect the 9D serial cable from the user monitor to the SERIAL port on the NODEMUX. -
Page 14: Cascading
CASCADING The NTI ST-xU Universal KVM switch can be expanded to access up to 152 CPUs by cascading multiple units together. Up to 8 SUN, MAC, or Universal switches can be connected into an ST-xU Universal KVM switch’s CPU ports, as shown in Fig. 14. The NODEMUX connected to the monitor and input devices must be configured as the “MASTER”... -
Page 15: Configuration
Cascading is not available if the Touch-Screen Support option (page 25) is installed. Configuration All units are configured using switches 1 thru 6 of the 8-position dip-switch (located on the front of each unit) according to Tables 1 and 2. (Switches 7 and 8 are configured for the keyboard on page 5.) NOTE: Dip-switches are only found in legacy NODEMUX switches. -
Page 16: Figure 15- Basic Cascaded Master-To-Slave Cable Connections
NE T WORK TECHNOLOGIE S INCORPORATED 1275 Danner Drive, Aurora Ohio 44202 330-562-7070 www.nti1.co m 5VDC CPU 8 CPU 7 CPU 6 CPU 5 NETWORK TECHNOLOGIES INCORPORATED REXT-SR-xx Cable Required REXT-SR-xx REXT-SR45-xx REXT-SR15-xx REXT-SR45-xx REXT-SR15-xx REXT-SR-xx Figure 16- Installation of remote extension... -
Page 17: Operation
By pressing <Ctrl> + <`> (accent key), the user can enter Command Mode (either Basic, or OSD). Once in Command Mode, typing a series of commands will cause the Universal KVM switch to connect the user to any one CPU connected to the switch. -
Page 18: Figure 17- Video And Device Connections Identified With Port Numbers
FYI: If switches are cascaded (such as that illustrated in Fig. 14 on page 10), it will be necessary to make note of which port each CPU is connected to on each slave KVM switch and which port each slave KVM switch is connected to on the master KVM switch. -
Page 19: Scan Mode
Scan Mode When in Scan Mode the switch scans to each port with a CPU powered-ON. (The SCAN LED on the front panel will illuminate and remain ON while in Scan Mode. ) The port with the CPU powered-ON remains active while in use. When the switch becomes idle for the configured time-out period (default time out period is 5 seconds) the switch will connect to the next powered-ON CPU port. -
Page 20: User Login Mode
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH When a standard user powers up the system a security screen may appear as setup by the administrator. need to login to the system by following the instructions below for the USER LOGIN. user name and password (setup by the administrator), contact the system administrator for this information. -
Page 21: Switch Configuration
The unit configured as a MASTER W/ 16-PORT SLAVES can have slaves with up to 16 CPUs attached. With a switch configured as a master, it must also be configured for how many slaves will be connected to it. Move the highlighted cursor bar to "SLAVE COUNT"... -
Page 22: Exit Switch Configuration Mode
In the event the setting is changed by mistake to "slave unit", to change it back to a "stand alone" switch, factory default settings must be restored via a terminal connected to the RS232 control port. See RS232 Control on page 26 for how to restore default settings. -
Page 23: User Name List
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH User Name List The User Name List displays the list of users and provides control for adding new users, changing or assigning user passwords, and changing access rights for any given user. User names may be up to 12 characters long, may not contain spaces, and are not case sensitive. -
Page 24: Figure 22- Command Mode Menus
The On Screen Display menu will automatically appear on the monitor in addition to illuminating the indicator LEDs on the KVM switch. This provides a visual way to control the NODEMUX using the keyboard, monitor, and mouse. With Touch Screen support (optional), the OSD menu can be entered by tapping 3 times on the monitor. -
Page 25: Figure 23- Video And Device Connections Identified With Port Numbers
Ports listed on the screen can be selected by moving the cursor onto that port and clicking. Clicking twice on a selected port will switch to that port and exit Command Mode. -
Page 26: Scan Mode
Edit Mode Edit Mode allows the user to modify the names of the CPUs connected to the switch. Names of CPUs can be up to 12 characters in length. When in Edit Mode, multiple keystroke combinations are not valid (<SHIFT>+<P>, <CTRL>+<P>, <ALT>+ <P>, and <P>... -
Page 27: Search Mode
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH Selects the last port on the switch Toggles between insert and overstrike Erase current character Erase previous character When finished making changes in Edit Mode, press <Enter> and a prompt will appear to press either <Y> to save the changes or <N>... -
Page 28: Maintenance Mode
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH Maintenance Mode Maintenance Mode allows a user to customize the On Screen Display to their requirements Function: Keystroke: Reset all of the port names Toggle between numeric and alphabetic listing of ports Move On Screen Display (OSD) -
Page 29: Help Mode
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH Help Mode This mode displays a list of commands with a short explanation of their function. These lists are organized in pages for each mode (i.e. COMMAND, EDIT, SEARCH, and HELP). The following options allow the user to quickly obtain information on any... -
Page 30: Reset Default Values
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH Reset Default Values The default operating values of the connected touch screen monitor must be communicated to the NODEMUX before any connected CPUs are powered up. To reset default values, 1. Press <Ctrl> + <`> (accent key) to enter Command Mode 2. -
Page 31: Rs232 Control
CPUs. To daisy chain multiple units, a Matrix Y-1 cable is used (see page 29) for each NODEMUX in the chain. The last unit will have no connection on its output port and should have DIP switch 1 ON (see table under "Unit Address and Loop Back"... -
Page 32: Unit Address And Loop Back
Figure 31- Switch Configuration Mode screen In the event the setting is changed from "stand alone" to "slave", when the switch is power cycled the OSD menu will no longer work. To restore the setting back to "stand alone", factory default settings must be restored via a terminal connected to the RS232 control port. -
Page 33: Loop Back
(See Fig. 32). For each additional NODEMUX connected, another Matrix-Y-1 cable will be required. If the NODEMUX is one of two or more switches being controlled via RS232, and if the NODEMUX is not that last switch in the series of switches controlled, then this setting should be changed to "DISABLED". -
Page 34: Command Protocol
All characters should be upper case, and all numbers below 10 should have a leading 0 (ex: 1 = 01). • For units with one USER port (i.e. this NODEMUX switch), use 01 for the USER select. RS - reset unit(s) to default power-up switch connections FORMAT: RS AA<CR>... - Page 35 XX = input /CPU to connect to all outputs/USERS RESPONSE: *<CR> (command received and executed OK) ?<CR> (syntax or transmission error occurred) FYI: In this NODEMUX switch, this command will have the same effect as the CS command above. RO - read single USER channel FORMAT: RO AA,YY<CR>...
-
Page 36: Keyboard-To-Cpu Translation
NTI NODEMUX SERIES UNIVERSAL KVM SWITCH KEYBOARD-TO-CPU TRANSLATION The NTI NODEMUX enables the mixture of otherwise incompatible devices and CPUs to control each other. It accomplishes this by performing keyboard-to-CPU translations automatically (i.e. connect a MAC keyboard and mouse to a PS/2 type CPU). The chart below shows the key commands that will be recognized and translated for the different types of CPUs. -
Page 37: How To Disable Operating Modes
Should it be necessary to replace the keyboard of one platform with a keyboard of a different platform, the dip-switches will need to be re-configured accordingly. To do this; 1. Power-down the ST-xU by following the proper power-down sequence. That is, turn the CPUs OFF first, then the NTI switch. -
Page 38: Figure 37- Case Screws Must Be Removed
1. Make sure the ST-xU is completely disconnected from all CPU components. electrical outlet. 2. Remove the two philips-head screws from the underside of the ST-xU and set the ST-xU on a firm and flat surface, bottom down (see Fig. 37). -
Page 39: Figure 39- Clear Access To The Jumper Block
1. Make sure the ST-xU-O is completely disconnected from all CPU components. from the electrical outlet. 2. Remove the two philips-head screws from the underside of the ST-xU-O that hold the plastic case together. Remove the 4 torx-head screws from the underside as well. -
Page 40: Figure 41- Component Layout In Unit With Osd
NOTE: Before proceeding, it is important to discharge any static charge you may be carrying by touching any large metal object (away from the ST-xU-O). 4. Firmly grasp the front and rear panel and slide the entire assembly out of the lower case. -
Page 41: Configuring The Jumper Block
Broadcast and Scan Modes. Once the desired jumpers are in place, reverse the disassembly process to re-assemble the ST-xU (or ST-xU-O). Be particularly careful about connecting the ribbons back to the headers they were removed from and to fully insert the ribbons to the headers. -
Page 42: Troubleshooting
The CPU does not sense activity while in the OSD menu. GENERAL NOTE: Verify that the port 1 LED (on the front panel of the KVM switch) illuminates when the power switch is turned ON. If it doesn’t, call NTI for assistance.
